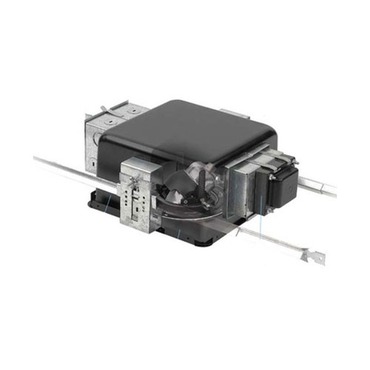

Evolution C3ALV 3 In AirSeal Non-IC Mag Frame-In Kit 120/277 MFR ID: C3ALV

Evolution C3ALV 3 In AirSeal Non-IC Mag Frame-In Kit 120/277

By Lightolier
LOADING...
Usually leaves warehouse within 1 week
MFR ID: C3ALV
ITEM #: LTL20118
List Price: $403.19
$241.91

Technical Specification

  • Trim Finish: Matte Black
  • Size: 5"H x 14.4"W x 9.6"D
  • Dimmer: Low Voltage Magnetic
  • Labels:
    UL
    Damp Location
    Airtight

  • Ceiling Type: Drywall with Trim
  • Housing Type: New construction NON IC Airtight
  • Housing Height: 5"
  • Aperture Shape: Round

Product Description

Calculite Evolution C3ALV 3 Inch AirSeal Non-IC New Construction Frame-In Kit with magnetic transformer. Non-IC designation requires that insulation must be kept a minimum of 3 inches away from housing. AirSeal minimizes air leakage to less than 2 CFM at 1.57 PSF. Includes 120/277 volt magnetic transformer. One 42-65 watt, 12 volt GU5.3 MR16 halogen lamp is required, but not included. Lamp wattage restriction: 65 watt for up to 1 inch thick ceiling and 50 watt for greater than 1 inch up to 2 inch thick. UL listed for damp locations. 14.4 inch width x 9.6 inch depth x 5 inch height. A complete fixture includes a frame-in kit and a trim, sold separately.



Product Name / Order Code
Finish / Color
Width
Lamp
Stock
List price
Price

Product Name / Order CodeEvolution C3ALV 3 In AirSeal Non-IC Mag Frame-In Kit 120/277
C3ALV
Finish / Color
 Matte Black
N/A
Width14.4”
LampHAL
Stock0
List price$403.19
Our Price$241.91
