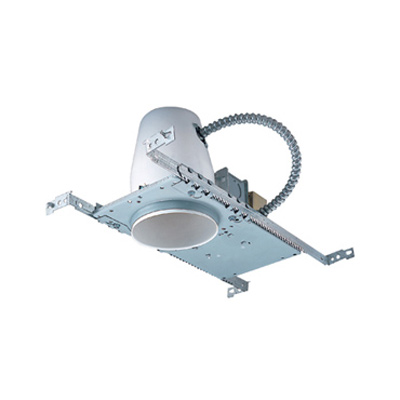

LVR16-TE 50W Low Voltage Downlight Standard Housing
50W Low Voltage Downlight Standard Housing. For use in any type of ceiling application. Lamp housing is removable through ceiling aperture for access to junction box. “Sure-grip” springs permit housing to be lowered and precisely adjust to ceiling thicknesses from 1/2" to 1". In insulated ceilings, maintain a minimum 3" clearance around housing. 12V 50W MR16 50W max, GU5.3 base. Porcelain socket assembly with Molex connector. Magnetic Class H transformer with Molex disconnect in J-box is fully dimmable with magnetic low voltage dimmers.
Transformer has internal thermal protection. 120V Transformer Ratings: Input: 120VAC, 60Hz, .54A, 65VA
Output: 12VAC, 60Hz, 4.2A, 50W. cULus listed. Suitable for damp locations.
|Dimensions: 10.5"L x 5.5"H x 5.75"W|
|Lamp Source: Halogen|
|Bulb: 1 x MR16/GU5.3 (bipin)/50W/12V Halogen|
Bulb not included
|Dimmer: Low Voltage Magnetic|
1 x MR16/GU5.3 (bipin)/12V LED
|Ceiling Type: Drywall with Trim|
|Housing Type: Remodel NON IC|
|Housing Height: 6"|
|Aperture Size: 0.000"|
