TC20R 5 Inch Remodel Non-IC Housing ID: TC20R
TC20R 5 Inch Remodel Non-IC Housing 110 Recessed Lighting Juno Lighting

TC20R 5 Inch Remodel Non-IC Housing

By Juno Lighting

TC20R 5 Inch Remodel Non-IC Housing

By Juno Lighting

$14.78

Usually leaves warehouse in 6-8 days

Based upon stock availability.

$14.78

SPEC #: JUN26383 | ID: TC20R

TC20R 5 Inch Remodel Non-IC Housing

SPEC #: JUN26383

ID: TC20R

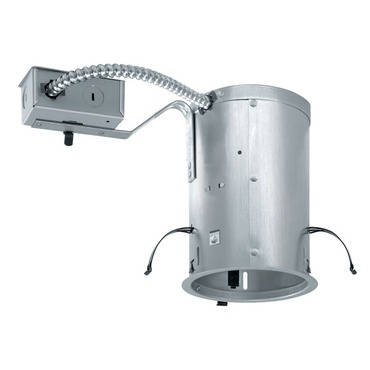

TC20R 5 Inch Universal Non-IC Remodel Housing is for remodel application where back side of ceiling is not accessible. Installs through an opening in the ceiling from below. Secured in place by factory installed remodel springs. Accommodates ceiling thickness up to 1 1/8 inch. Design for use in non-insulated areas. If installed where insulation is present, the insulation must be pulled back 3 inches from all sides of the housing. One 120 volt, A19, BR30, PAR30, PAR20, R20, PAR30L or A15 medium base lamp or LED equivalent is required, but not included. Lamp type and wattage dependent upon housing/trim combination (see attached Juno manufacturer specification). Incandescent/halogen dimmable with a standard incandescent dimmer. Consult lamp manufacturer for dimmer compatibility when using an LED equivalent lamp. UL listed for through-branch wiring, damp locations and IP. Trims 210N, 211 and 212N are wet location approved for covered ceiling applications. Trims 215 and 216 are wet location approved for covered ceiling applications when used with outdoor rated lamps. 12.5 inch length x 5.9 inch width x 7.5 inch height. A complete fixture includes a housing and trim, sold separately.

Available Options

Finish: Aluminum

Specifications

  • UL

    UL

  • Damp Location

    Damp Location

  • Warm Dim Compatible

    Warm Dim Compatible

  • Smart Home Compatible

    Smart Home Compatible

  • Specification Sheet / Technical Files

    Prop 65 Warning for California Residents This product can expose you to chemicals, which are known in the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.p65warnings.ca.gov/.
