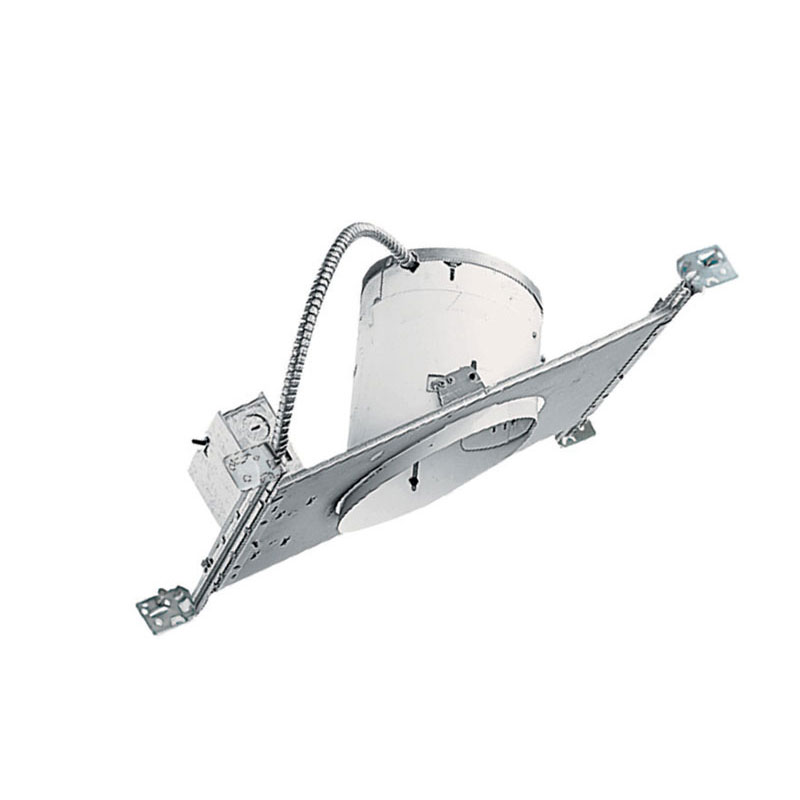

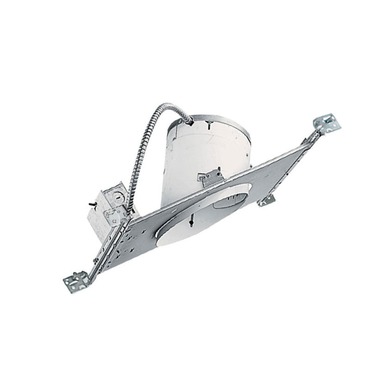

TC928 6 Inch Slope Non-IC New Construction Housing
Trim Finish: White
Dimensions: 18.5"L x 9.06"H x 9.1"W
Labels: UL Damp Location
TC928 6 Inch Slope Ceiling Non-IC New Construction Housing for use in slope ceiling applications with a 7/12 to 12/12 pitch (30 to 45 degrees). Adjustable fixture height between 7.5 inch minimum to 9.06 inch maximum. For 2x8 or 2x10 construction. Designed for use in non-insulated areas. If installed where insulation is present, the insulation must be pulled back 3 inches from all sides of the housing. Adjustable to position lamp perpendicular to floor. One 120 volt, PAR38, PAR30, BR30, PAR16 or A19 medium base halogen/incandescent or LED equivalent lamp is required, but not included. Halogen and incandescent lamps dimmable using a standard incandescent dimmer. Consult lamp manufacturer for dimmer compatibility when using an LED equivalent lamp. Lamp type/wattage dependent upon housing/trim combination (see attached Juno manufacturer specification). UL listed for through-branch wiring, damp locations and IP. Wet location approved for covered ceiling applications with trim 603. 18.5 inch length x 9.1 inch width x 9.06 inch height. A complete fixture includes a housing and trim, sold separately.
|TC928 6 Inch Slope Non-IC New Construction Housing|
Juno Lighting Inc. is one of the largest manufacturers of recessed and track lighting including Trac-Master®, Trac 12, Flex 12, Trac 12/25, and recessed downlights. Juno was founded in 1976 with the vision of offering high quality lighting fixtures that are attractive, well-engineered and easy to install. Aculux is a comprehensive series of high-performance architectural-grade recessed luminaires. Juno designs, manufactures and markets track, recessed and linear undercabinet / casework lighting products for a broad range of retail, commercial and residential applications.
