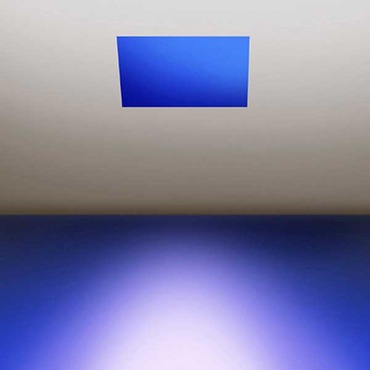

Aurora Square 3.3 Inch RGB Accent Trim and Housing

Designed by Gregory Kay read more...

Aurora Square Edge RGB 3.3 inch trim and housing is a specification grade, adjustable accent fixture for plaster or drywall construction. The flush mounted rigid plaster plate, which is finished into the ceiling, maintains a flat finish and defines the Truly Trimless Pure edge (knife edge) 3.3 inch aperture. Uplighting the RGB (red, blue, green) LEDs within the Aurora dome creates color at the ceiling plane while a halogen white light projects downward resulting in an optical illusion. Combined with the Pure edge aperture and the hidden gear behind the lamp further enhances the illusion and creates a clean internal look. Dome is made of spun aluminum, painted to a diffuse highly reflective white finish. Features hot aiming with Philips screwdriver offering 0 to 45 degree vertical adjustment and 362 degree horizontal rotation without beam clipping. Includes standard 120 volt magnetic transformer, IC and air-tight, suitable for remodel or new construction. Secondary output voltage is 11.8 volts. LED driver/power data supply (PDS) and RGB LED modules are integral, accessible and serviceable through the aperture. Includes RGB high output LEDs totaling 24 watts and may be programmed as desired using a DMX signal. LEDs can be controlled to be static color, cross-faded, or can be set to the beat of the music. Compatible with Edge Lighting CDP or CTP controller, sold separately. Includes 12 volt 35 watt 35 degree beam spread Sylvania Tru-Aim Brilliant lamp. Halogen light source compatible with low voltage magnetic dimmer, sold separately. Includes snoot and soft focus lens, with room for lamp and two additional accessories, sold separately. UL listed for damp locations.
Product Name
Order Code
Finish
Color
WidthLampStockList PriceOur Price
Aurora Square 3.3 Inch RGB Accent Trim and Housing
AH3-ASE3-RGB
N/A
12.1”LED
LED
0$919.00$735.20
Dimensions: 14.75"L x 5.75"H x 12.125"W
Lamp Source: LED
Bulb: 1 x LED/24W/12V LED
1 x MR16/GU5.3 (bipin)/35W/12V Halogen
LED module included
Dimmer: Dimmable
Bulb Options:
1 x MR16/GU5.3 (bipin)/12V LED
MR16/GU5.3 (bipin)
Function: Accent Lighting
Ceiling Type: Drywall Trimless/Flush
Housing Type: New construction IC Airtight
Housing Height: 6"
Aperture Shape: Square
Aperture Size: 3.300"

Download specification sheet

Installation instructions

Manufacturer’s / Catalog specification sheet

UL, Damp Location, Airtight

About Pure Lighting

Pure Lighting combines minimalist design with state-of-the-art technology to produce innovative lighting that seamlessly blends into drywall or plaster ceilings. The revolutionary collection features Truly Trimless recessed fixtures, advanced LED RGB technology and concealed lighting components that provide a clean, glare-free internal look ideal for commercial or residential applications.

The Aurora RGB is the only recessed fixture to combine both halogen accent light with colored LEDs resulting in a glowing disc of color at the aperture while the halogen white light projects downward performing an accent function. LEDs are controlled to be static color, cross-faded or set to the beat of the music. Other features of the Aurora family include hot aiming lamp adjustment, knife edge apertures, a rigid plaster plate and dome interior. The self locking gears and other hardware are hidden behind the lamp within the dome interior and the knife edge aperture eliminates glare and brightness creating a skylight effect. The flush mounted rigid plaster plate continues a clean uninterrupted ceiling and prevents chipping and cracking at the trim aperture, which is common with other recessed manufacturers.

The fixtures are available with the Truly Trimless 3.3" aperture, along with beveled and flat flush trims of various aperture sizes. Complimenting the Aurora family, the Genna wall wash features a trim that produces no-glare at the aperture and an ultra uniform field of light that covers the entire wall with a straight edge at the ceiling plane. Beyond the accents and downlights, the Stratus wall grazer offers dramatic yet energy efficient lighting for textured surfaces by uniformly (8 x 160 beam) illuminating vertical surfaces with warm white or cool white LEDs.

Made in the USA.
