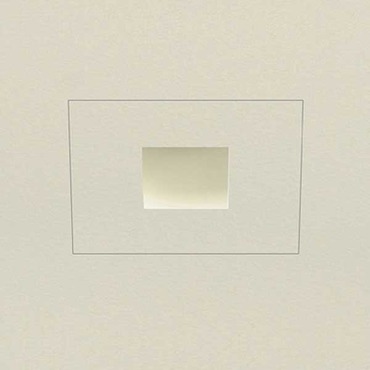

Aurora Halogen Square Edge 1.3 Inch Flangeless Trim/Housing
Trim Finish: White Trim/ Haze Dome
Dimensions: 11.9"L x 5.25"H x 9.25"W
Labels: ETL Damp Location Airtight
Lamp Source: Halogen
|Function: Adjustable Accent|
|Ceiling Type: Drywall Trimless/Flush|
|Housing Type: New construction IC Airtight|
|Housing Height: 6"|
|Aperture Shape: Square|
|Aperture Size: 1.300"|
Aurora Halogen Square Edge Flangeless 1.3 Inch Aperture Trim with IC and Air-Tight Housing is a specification grade, recessed adjustable accent fixture for plaster or drywall construction. A flush mounted rigid plaster plate, which is finished into the ceiling, maintains a flat finish. Combining the 3.5 inch square trim and knife edge 1.3 inch aperture with the Aurora dome and tilt gear hidden behind the lamps creates a clean internal look. Flangeless, flush trim installs into the plaster plate with a precision snap-fit. Fixture offers hot aiming with 0 to 30 degree vertical adjustment and 362 degree horizontal rotation without beam clipping. Precision machined gear adjustment is concealed behind the lamp. Features self locking tilt and manual locking horizontal rotation. Includes machined aluminum snoot and die formed aluminum back shield to control internal spill light. The snoot carries the lamp and two optional light control accessories, sold separately. Includes a soft focus lens. Housing is made of die formed aluminum and includes one 12 volt 75 watt toroidal magnetic low voltage transformer. Housing is IC and Air-Tight, suitable for remodel or new construction. Dome features an anodized soft haze finish. Dome hides electrical hardware and tilts for easy access to junction box and transformer. One MR16 12 volt 37 watt IR (infrared, equal to 50 watt halogen) is required, but not included. UL listed for damp locations. Housing: 11.9 inch length x 9.25 inch width x 5.25 inch height. Optional Aurora Gear Cover and light control accessories available, sold separately.
|Aurora Halogen Square Edge 1.3 Inch Flangeless Trim/Housing|
Pure Lighting combines minimalist design with state-of-the-art technology to produce innovative lighting that seamlessly blends into drywall or plaster ceilings. The revolutionary collection features Truly Trimless recessed fixtures, advanced LED RGB technology and concealed lighting components that provide a clean, glare-free internal look ideal for commercial or residential applications.
The Aurora RGB is the only recessed fixture to combine both halogen accent light with colored LEDs resulting in a glowing disc of color at the aperture while the halogen white light projects downward performing an accent function. LEDs are controlled to be static color, cross-faded or set to the beat of the music. Other features of the Aurora family include hot aiming lamp adjustment, knife edge apertures, a rigid plaster plate and dome interior. The self locking gears and other hardware are hidden behind the lamp within the dome interior and the knife edge aperture eliminates glare and brightness creating a skylight effect. The flush mounted rigid plaster plate continues a clean uninterrupted ceiling and prevents chipping and cracking at the trim aperture, which is common with other recessed manufacturers.
The fixtures are available with the Truly Trimless 3.3" aperture, along with beveled and flat flush trims of various aperture sizes. Complimenting the Aurora family, the Genna wall wash features a trim that produces no-glare at the aperture and an ultra uniform field of light that covers the entire wall with a straight edge at the ceiling plane. Beyond the accents and downlights, the Stratus wall grazer offers dramatic yet energy efficient lighting for textured surfaces by uniformly (8 x 160 beam) illuminating vertical surfaces with warm white or cool white LEDs.
Made in the USA.
