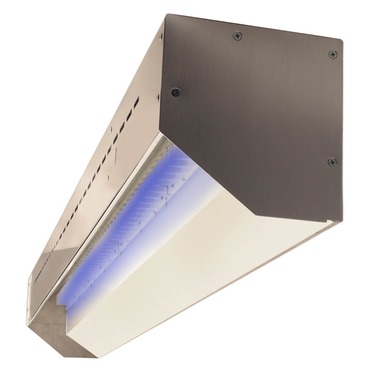

Stratus Outdoor IP46 Wet Location RGB Linear Wall Grazer MFR ID: SH1-SP1OD-RGB

Stratus Outdoor IP46 Wet Location RGB Linear Wall Grazer

By Pure Lighting


Usually leaves warehouse in 4-6 weeks
ITEM #: PUR57703
List Price: $1,985.00

Technical Specification

  • Finish: Aluminum
  • Size: 12"L x 5.6"H x 5.5"D
  • Dimmer: Dimmable
  • Labels:
    Wet location

  • Lamp Source: LED
  • Bulb:1 x LED/13W/120V LED
    LED module included
  • Lamp Life: 50000 hours

Product Description

Stratus Outdoor IP46 Wet Location RGB Linear Wall Grazer is a specification grade fixture for recessed, plaster-in or surface mount applications. Includes a Non-IC housing for use in new construction residential and commercial, and remodel applications. Available in 1 foot and 4 foot lengths in RGB (red, blue, green), as well as Warm White 2800K, 83CRI, or Cool White 4200K, 80CRI, color temperature. Available in a 1 foot or 4 foot length. Includes housing with field replaceable LED, 120-277V, RGB power supply, wall mounting brackets and joiner bracket. End cap accessory available, sold separately. Can be controlled with Color Dial controller (CDP), Touch Screen controller (CTP) or a CDMX1-RGBW touch controller, sold separately. ETL listed. IP46 rated for wet locations. Fixture includes a 3 year warranty. Product is built to order.

Product Name / Order Code
Finish / Color
List price
Product Name / Order CodeStratus Outdoor IP46 Wet Location RGB Linear Wall Grazer
Finish / Color
List price$1,985.00
Our Price$1,588.00
Product Name / Order CodeStratus Outdoor IP46 Wet Location RGB Linear Wall Grazer
Finish / Color
List price$3,185.00
Our Price$2,548.00
About Pure Lighting

Pure Lighting combines minimalist design with state-of-the-art technology to produce innovative lighting that seamlessly blends into drywall or plaster ceilings. The revolutionary collection features Truly Trimless recessed fixtures, advanced LED RGB technology and concealed lighting components that provide a clean, glare-free internal look ideal for commercial or residential applications.

The Aurora RGB is the only recessed fixture to combine both halogen accent light with colored LEDs resulting in a glowing disc of color at the aperture while the halogen white light projects downward performing an accent function. LEDs are controlled to be static color, cross-faded or set to the beat of the music. Other features of the Aurora family include hot aiming lamp adjustment, knife edge apertures, a rigid plaster plate and dome interior. The self locking gears and other hardware are hidden behind the lamp within the dome interior and the knife edge aperture eliminates glare and brightness creating a skylight effect. The flush mounted rigid plaster plate continues a clean uninterrupted ceiling and prevents chipping and cracking at the trim aperture, which is common with other recessed manufacturers.

The fixtures are available with the Truly Trimless 3.3" aperture, along with beveled and flat flush trims of various aperture sizes. Complimenting the Aurora family, the Genna wall wash features a trim that produces no-glare at the aperture and an ultra uniform field of light that covers the entire wall with a straight edge at the ceiling plane. Beyond the accents and downlights, the Stratus wall grazer offers dramatic yet energy efficient lighting for textured surfaces by uniformly (8 x 160 beam) illuminating vertical surfaces with warm white or cool white LEDs.

Made in the USA.
