LEDG314 3.5 Inch 12W Wide Beam Double Gimbal Square Trim by Contrast Lighting

LEDG314 3.5 Inch 12W Wide Beam Double Gimbal Square Trim

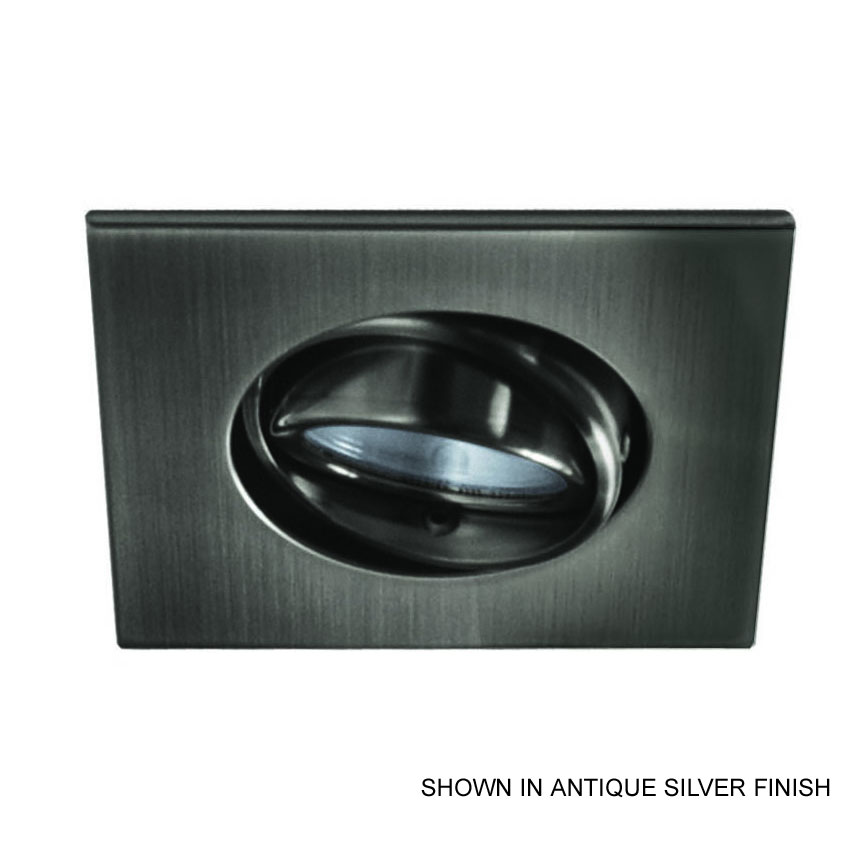

3.5 inch double gimbal LED square trim. 12 Watt, 3000K, Wide Beam from 35 to 45 degree beam spread. Also available in a 12 watt Very Wide Beam version as well as a 10 Watt 4000K Wide Beam and 10 watt Very Wide Beam version. Trim finish options include White, Black, 24K Gold, Chrome, Brushed Chrome, Architectural Bronze, Antique Copper, Antique Brass, Antique Silver, Matte White, Brushed Nickel, Satin Nickel, Almond, Metallic Grey or Satin Chrome. For use with compatible housings NWLED300LU1, NWLED300U1, RELED300LU1, RELED300U1. 4.25 inch square x 2.5 inches high.

Product Name Order Code	Finish Color	Width	Lamp	List Price	Our Price
LEDG314 3.5 Inch 12W Wide Beam Double Gimbal Square Trim LEDG314-133W1	Satin Nickel N/A	4.3”	LED LED	$254.10	$182.95	Select
LEDG314 3.5 Inch 12W Wide Beam Double Gimbal Square Trim LEDG314-043W1	Chrome N/A	4.3”	LED LED	$254.10	$182.95	Select
LEDG314 3.5 Inch 12W Wide Beam Double Gimbal Square Trim LEDG314-113W1	Matte White N/A	4.3”	LED LED	$234.10	$168.55	Select
LEDG314 3.5 Inch 12W Wide Beam Double Gimbal Square Trim LEDG314-053W1	Architectural Bronze N/A	4.3”	LED LED	$254.10	$182.95	Select

Dimensions: 2.5"H x 4.25"W x 4.25"D

Lamp Source: LED

Bulb: 1 x LED/12W/120V LED
LED module included

Dimmer: Dimmable

Luminous Flux: 495 lumens

Lamp Color: 3000 K

Color Rendering: 90 CRI

Beam Spread: Wide flood

Lamp Life: 50000 hours

Function: Accent Lighting

Ceiling Type: Drywall with Trim

Aperture Shape: Round

Aperture Size: 1.687"

Download specification sheet

UL, Damp Location
