Fraxion3 SQ Fixed Downlight Trim / IC Airtight Housing MFR ID: F3SM1F-BKBK-9C27-40C1-PH
Fraxion3 SQ Fixed Downlight Trim / IC Airtight Housing 0 Recessed Lighting Lucifer Lighting

Fraxion3 SQ Fixed Downlight Trim / IC Airtight Housing

By Lucifer Lighting

Fraxion3 SQ Fixed Downlight Trim / IC Airtight Housing

By Lucifer Lighting

$562.50 - $652.50

Finish:
Black Powdercoat / Black Baffle

COLOR TEMP:
2700K Color temperatures close to 5000K are cool colors (bluish white), while lower color temperatures (2700–3000 K) are warmer colors (yellowish white through red).

IP Rating:
Dry / Damp Location

Free Shipping Icon

Usually leaves warehouse in 2-4 weeks

Based upon stock availability.

$562.50

MFR ID: F3SM1F-BKBK-9C27-40C1-PH | ITEM #: LCF1038922

Fraxion3 SQ Fixed Downlight Trim / IC Airtight Housing

MFR ID: F3SM1F-BKBK-9C27-40C1-PH

Item #: LCF1038922

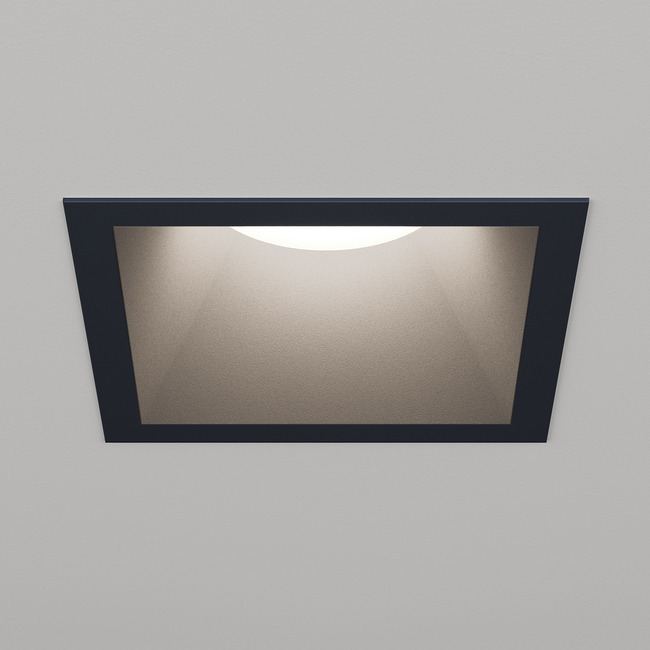

The Fraxion 3 Inch Square Fixed Downlight Microflange Trim with New Construction IC Airtight Housing (Chicago Plenum, Airtight and Title 24 compliant) features a low profile and slim housing making it an excellent choice for residential, retail or commercial spaces. Available in a variety of powdercoat finishes with powdercoat baffle. Offered in 2700K, 3000K, and Warm Dim (3200K-1800K) color temperature options with 40 degree beam angle. Ceiling thickness: .50-1.375 inch. Available in dry/damp and wet location options. Integral 120 volt LED driver dimmable with an electronic low voltage (ELV) or Triac dimmer to 2%.

Specifications

    • Finish: Black Powdercoat / Black Baffle
    • IP Rating: Dry / Damp Location
    • Size: 13.4"L x 7.5"W x 2.6"H
    • Dimmer: Low Voltage Electronic
    • Materials: Aluminum
    • Function: Downlight
    • Ceiling Type: Drywall with Trim
    • Housing Type: New construction IC Airtight
    • Housing Height: 3"
    • Aperture Shape: Square
    • Lamp Source: LED
    • Bulb:
      1 x LED/14W/120V LED
      LED module included
    • Total Wattage: 14 watts
    • Lamp Color: 2700K
    • Color Rendering: 90 CRI
    • Delivered Lumens: 936 lumens
    • Lumens/Watt: 66.86
    • Beam Angle: 40°
    • Lamp Life: 50000 hours
    • Wet location

      Wet location

    • Damp Location

      Damp Location

    • Airtight

      Airtight

    • Title 24 (JA8)

      Title 24 (JA8)

    • Warm Dim LED

      Warm Dim LED

    • Specification Sheet / Technical Files

      Prop 65 Warning for California Residents This product can expose you to chemicals, which are known in the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.p65warnings.ca.gov/.
