Fraxion3 RD Fixed Trimless / IC Airtight Housing MFR ID: F3RT1F-00AU-9C27-40C1-PH
Fraxion3 RD Fixed Trimless / IC Airtight Housing 0 Recessed Lighting Lucifer Lighting

Fraxion3 RD Fixed Trimless / IC Airtight Housing

By Lucifer Lighting

Fraxion3 RD Fixed Trimless / IC Airtight Housing

By Lucifer Lighting

$607.50 - $697.50

Finish:
Gold Powdercoat

COLOR TEMP:
2700K Color temperatures close to 5000K are cool colors (bluish white), while lower color temperatures (2700–3000 K) are warmer colors (yellowish white through red).

IP Rating:
Dry / Damp Location

Free Shipping Icon

Usually leaves warehouse in 2-4 weeks

Based upon stock availability.

$607.50

MFR ID: F3RT1F-00AU-9C27-40C1-PH | ITEM #: LCF1038980

Fraxion3 RD Fixed Trimless / IC Airtight Housing

MFR ID: F3RT1F-00AU-9C27-40C1-PH

Item #: LCF1038980

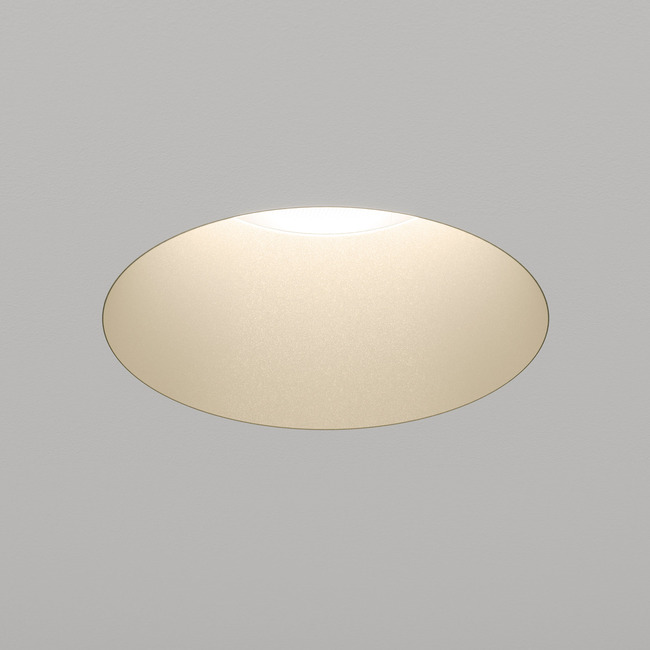

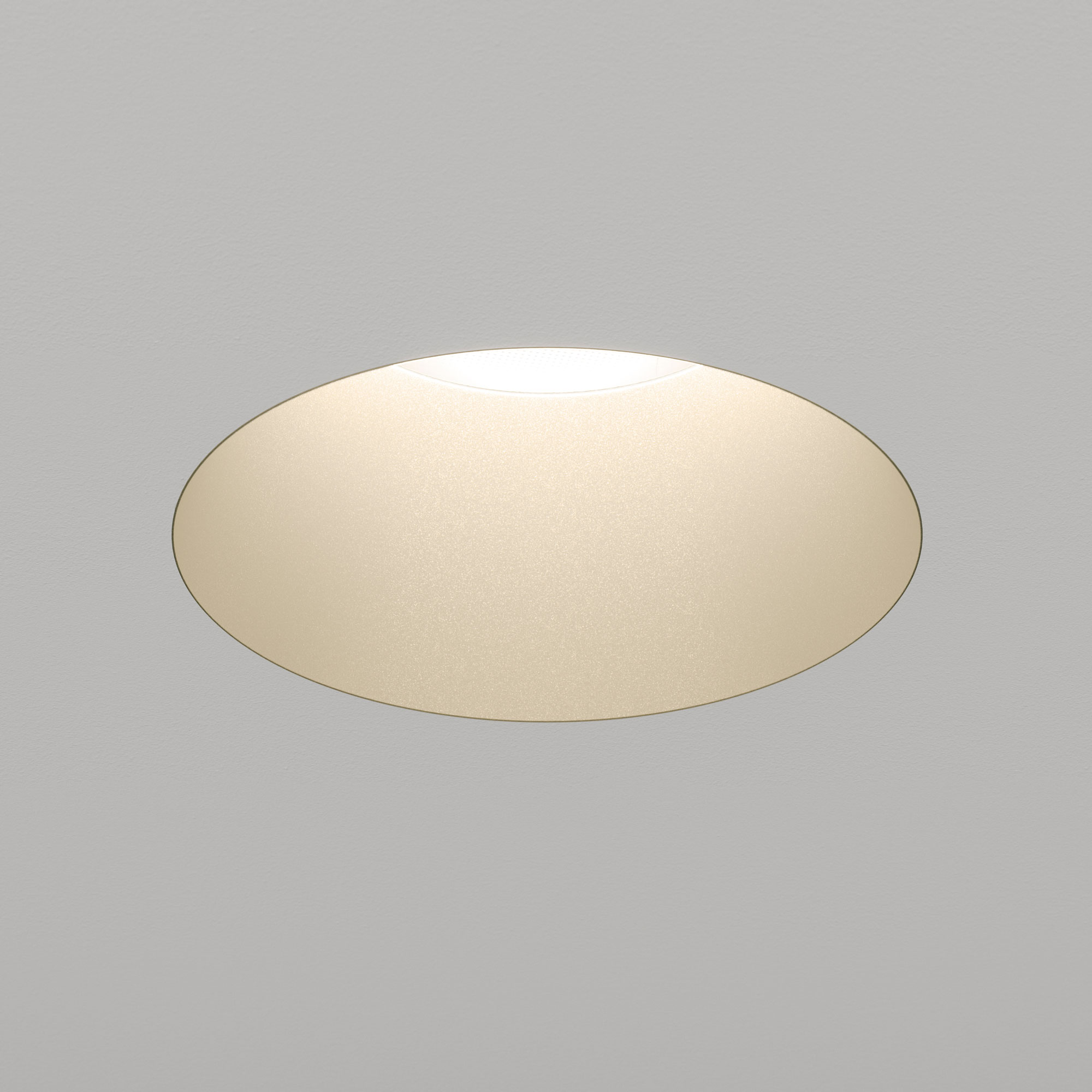

The Fraxion 3 Inch Round Fixed Trimless Downlight with New Construction IC Airtight Housing (Chicago Plenum, Airtight and Title 24 compliant) features a low profile and slim housing making it an excellent choice for residential, retail or commercial spaces. Baffle in powdercoat finish. Includes soft focus lens. Offered in 2700K and Warm Dim (3200K-1800K) color temperature options with 40 degree beam angle. Ceiling thickness: .50-1.375 inch. Suitable for dry/damp locations only. Integral 120 volt LED driver dimmable with an electronic low voltage (ELV) or Triac dimmer to 2%.

Specifications

    • Finish: Gold Powdercoat
    • IP Rating: Dry / Damp Location
    • Size: 13.4"L x 7.5"W x 2.6"H
    • Dimmer: Low Voltage Electronic
    • Materials: Aluminum
    • Function: Downlight
    • Housing Type: New construction IC Airtight
    • Housing Height: 3"
    • Aperture Shape: Round
    • Lamp Source: LED
    • Bulb:
      1 x LED/14W/120V LED
      LED module included
    • Total Wattage: 14 watts
    • Lamp Color: 2700K
    • Color Rendering: 90 CRI
    • Delivered Lumens: 896 lumens
    • Lumens/Watt: 64.00
    • Beam Angle: 40°
    • Lamp Life: 50000 hours
    • UL

      UL

    • Wet location

      Wet location

    • Damp Location

      Damp Location

    • Airtight

      Airtight

    • Title 24 (JA8)

      Title 24 (JA8)

    • Warm Dim LED

      Warm Dim LED

    • Specification Sheet / Technical Files

      Prop 65 Warning for California Residents This product can expose you to chemicals, which are known in the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.p65warnings.ca.gov/.

      // Options //

      1

      Fraxion3 RD Fixed Trimless / IC Airtight Housing

      F3RT1F-00WH-9C27-40C1-PH
      LCF1038976

      • Finish:
        White Powdercoat
      • Color:
        N/A
      • Width 7.5”
      • Lamp:  LED
      • Stock:  0

      Price:   $607.50

      Add To cart

      2

      Fraxion3 RD Fixed Trimless / IC Airtight Housing

      F3RT1F-00WH-9WWD-40C1-PH
      LCF1038977

      • Finish:
        White Powdercoat
      • Color:
        N/A
      • Width 7.5”
      • Lamp:  LED
      • Stock:  0

      Price:   $663.00

      Add To cart

      3

      Fraxion3 RD Fixed Trimless / IC Airtight Housing

      F3RT2F-00WH-9C27-40C1-PH
      LCF1038988

      • Finish:
        White Powdercoat
      • Color:
        N/A
      • Width 7.5”
      • Lamp:  LED
      • Stock:  0

      Price:   $642.00

      Add To cart

      4

      Fraxion3 RD Fixed Trimless / IC Airtight Housing

      F3RT2F-00WH-9WWD-40C1-PH
      LCF1038989

      • Finish:
        White Powdercoat
      • Color:
        N/A
      • Width 7.5”
      • Lamp:  LED
      • Stock:  0

      Price:   $697.50

      Add To cart

      5

      Fraxion3 RD Fixed Trimless / IC Airtight Housing

      F3RT1F-00BK-9C27-40C1-PH
      LCF1038978

      • Finish:
        Black Powdercoat
      • Color:
        N/A
      • Width 7.5”
      • Lamp:  LED
      • Stock:  0

      Price:   $607.50

      Add To cart

      6

      Fraxion3 RD Fixed Trimless / IC Airtight Housing

      F3RT1F-00BK-9WWD-40C1-PH
      LCF1038979

      • Finish:
        Black Powdercoat
      • Color:
        N/A
      • Width 7.5”
      • Lamp:  LED
      • Stock:  0

      Price:   $663.00

      Add To cart

      7

      Fraxion3 RD Fixed Trimless / IC Airtight Housing

      F3RT2F-00BK-9C27-40C1-PH
      LCF1038990

      • Finish:
        Black Powdercoat
      • Color:
        N/A
      • Width 7.5”
      • Lamp:  LED
      • Stock:  0

      Price:   $642.00

      Add To cart

      8

      Fraxion3 RD Fixed Trimless / IC Airtight Housing

      F3RT2F-00BK-9WWD-40C1-PH
      LCF1038991

      • Finish:
        Black Powdercoat
      • Color:
        N/A
      • Width 7.5”
      • Lamp:  LED
      • Stock:  0

      Price:   $697.50

      Add To cart

      9

      Fraxion3 RD Fixed Trimless / IC Airtight Housing

      F3RT1F-00AU-9C27-40C1-PH
      LCF1038980

      • Finish:
        Gold Powdercoat
      • Color:
        N/A
      • Width 7.5”
      • Lamp:  LED
      • Stock:  0

      Price:   $607.50

      Add To cart

      10

      Fraxion3 RD Fixed Trimless / IC Airtight Housing

      F3RT1F-00AU-9WWD-40C1-PH
      LCF1038981

      • Finish:
        Gold Powdercoat
      • Color:
        N/A
      • Width 7.5”
      • Lamp:  LED
      • Stock:  0

      Price:   $663.00

      Add To cart

      11

      Fraxion3 RD Fixed Trimless / IC Airtight Housing

      F3RT2F-00AU-9C27-40C1-PH
      LCF1038992

      • Finish:
        Gold Powdercoat
      • Color:
        N/A
      • Width 7.5”
      • Lamp:  LED
      • Stock:  0

      Price:   $642.00

      Add To cart

      12

      Fraxion3 RD Fixed Trimless / IC Airtight Housing

      F3RT2F-00AU-9WWD-40C1-PH
      LCF1038993

      • Finish:
        Gold Powdercoat
      • Color:
        N/A
      • Width 7.5”
      • Lamp:  LED
      • Stock:  0

      Price:   $697.50

      Add To cart
      Scroll

      Questions & Answers

      Ask a Question

      Can these lights be dimmed with a Buster and Punch Dimmer?
      March 12, 2023

      Answer
      Yes, this fixture requires a Low Voltage Electronic dimmer. If you would like assistance specifying specific items for your project please contact our sales department.
