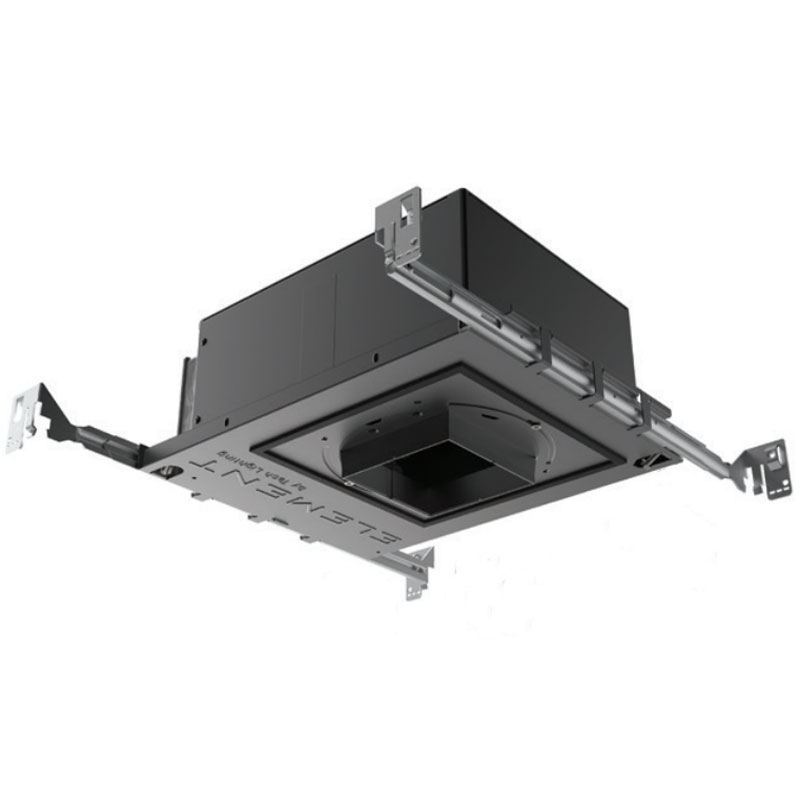

Element 3IN RD Flangeless Adj New Construction Housing
By Visual Comfort Architectural
Element 3IN RD Flangeless Adj New Construction Housing
$580.00 - $662.00
Usually leaves warehouse in 4-6 weeks
Based upon stock availability.
$580.00
+ FREE SHIPPING
SPEC #: ELE360983 | ID: E3RLF-LH9274AI
Element 3IN RD Flangeless Adj New Construction Housing
SPEC #: ELE360983
ID: E3RLF-LH9274AI
3 Inch Round 90CRI Flangeless Adjustable Non-IC Airtight, IC Airtight, or Chicago Plenum New Construction Housing for round flangeless trims. This small aperture LED downlight is fully adjustable and the design allows the LED to be positioned closer to the aperture for maximum light output and efficiency, or higher to minimize glare on the trim. Additional adjustability allows for tool-free hot aiming and locking, including 0 to 40 degree tilt and 361 degree rotation to eliminate dead spots.
Includes a 12 or 17 watt LED module in three color temperature options or with Warm Dim LED (3000K-1800K). Offered with a 10, 18, 25, 40 or 60 degree beam angle. 3 7/8 inch ceiling opening. Suitable for damp locations. Suitable for wet locations with shower trim option.
Includes a 120-277V Universal driver dimmable with standard reverse-phase, forward-phase, TRIAC, and 0-10V dimming. Note: A complete fixture requires a housing and trim, sold separately.
Note: Warm Dim option is not available with 10 degree beam angle.
Available Options
Specifications
- Finish: Black Powder Coat
- Housing: IC Airtight Housing
- Size: 12.5"L x 9.5"W x 4"H
- Dimmer: Low Voltage Electronic
- Materials: Steel
- Function: Adjustable Accent
- Ceiling Type: Drywall Trimless/Flush
- Housing Type: New construction IC Airtight
- Housing Height: 4"
- Aperture Shape: Round
- Lamp Source: LED
-
Bulb:1 x LED/17W/120-277V LEDIntegrated LED module
- Total Wattage: 17 watts
- Lamp Color: 2700K
- Color Rendering: 90 CRI
- Delivered Lumens: 1450 lumens
- Lumens/Watt: 85.29
- Beam Angle: 40°
- Lamp Life: 50000 hours

ETL

Damp Location

Airtight

Title 24 (JA8)

Warm Dim LED
Specification Sheet / Technical Files
