Element 3IN SQ Flangeless Low-Profile Downlight Housing
$360.00 - $502.00
Usually leaves warehouse in 2-4 weeks
Based upon stock availability.
$472.00
+ FREE SHIPPING
SPEC #: ELE945782 | ID: E3SLF-LH9270DCS

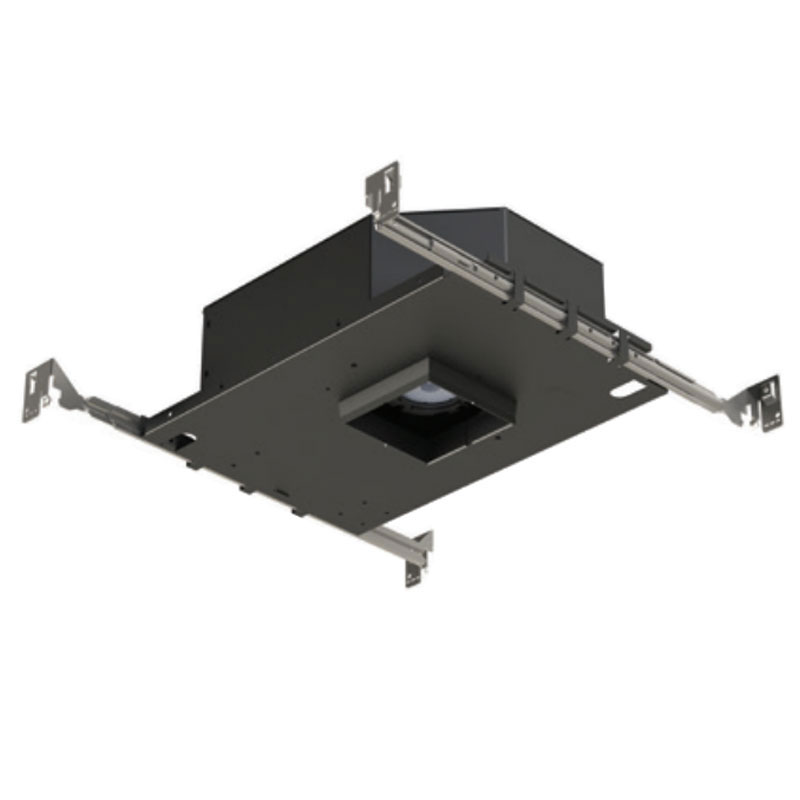

Element 3IN SQ Flangeless Low-Profile Downlight Housing
SPEC #: ELE945782
ID: E3SLF-LH9270DCS
3 Inch Square 90CRI Flangeless Fixed Downlight Low Profile IC Airtight, or Chicago Plenum New Construction Housing for square flangeless trims. Small aperture LED downlight with architectural appearance.
Includes a 12 or 17 watt LED module in three color temperature options and Warm Dim LED (3000K-1800K). Offered with a 10, 18, 25, 40 or 60 degree beam angle. 3 7/8 inch ceiling opening. Suitable for damp locations. Suitable for wet locations with shower trim option.
Includes a 120-277V Universal driver dimmable with standard reverse-phase, forward-phase, TRIAC, and 0-10V dimming. Note: A complete fixture requires a housing and trim, sold separately.
Note: Warm Dim option is not available with 10 degree beam angle.
Available Options
Specifications
- Finish: Black Powder Coat
- Housing: Chicago Plenum
- Size: 12"L x 7"W x 3.4"H
- Shipping Weight: 9.00 lbs
- Dimmer: Low Voltage Electronic
- Materials: Steel
- Function: Downlight
- Ceiling Type: Drywall Trimless/Flush
- Housing Type: Chicago plenum approved
- Housing Height: 3.5"
- Aperture Shape: Square
- Lamp Source: LED
-
Bulb:1 x LED/17W/120-277V LEDIntegrated LED module
- Total Wattage: 17 watts
- Lamp Color: 2700K
- Color Rendering: 90 CRI
- Delivered Lumens: 1450 lumens
- Lumens/Watt: 85.29
- Beam Angle: 10°
- Lamp Life: 50000 hours
ETL
Damp Location
Airtight
Title 24 (JA8)
Warm Dim LED
Specification Sheet / Technical Files
