ECO 1IN Shallow New Construction IC Housing
By CSL
ECO 1IN Shallow New Construction IC Housing
By CSL
$228.00 - $250.00
COLOR TEMP:
2700K
Color temperatures close to 5000K are cool colors (bluish white), while lower color temperatures (2700–3000 K) are warmer colors (yellowish white through red).
Usually leaves warehouse in 2-4 weeks
Based upon stock availability.
$228.00
+ FREE SHIPPING
SPEC #: CSL1160422 | ID: ED1SNIC-279050-12A1
ECO 1IN Shallow New Construction IC Housing
SPEC #: CSL1160422
ID: ED1SNIC-279050-12A1

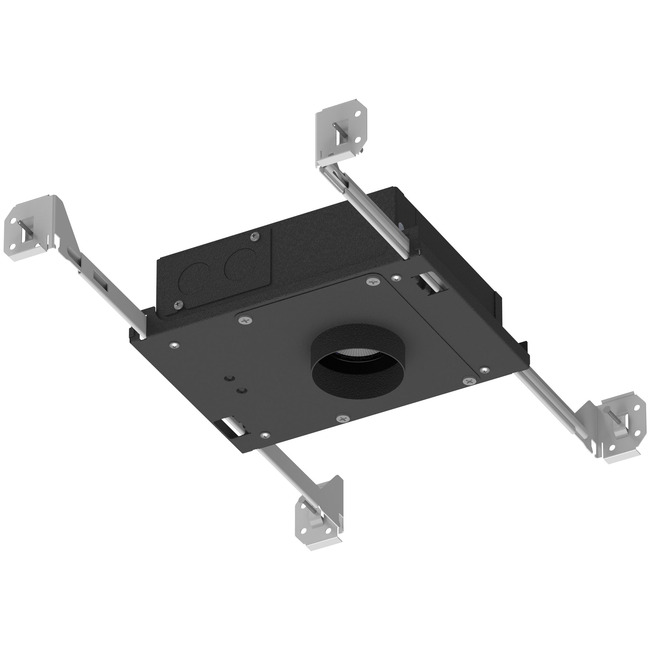

The ECO 1 Inch Shallow New Construction Housing is ready to install into 2.5 inch shallow plenums in drywall or T-bar grid ceilings with IC, Airtight and Chicago Plenum certifications. Features a 120V phase control driver offering 5%-100% TRIAC or ELV dimming and delivering up to 1100 lumens.
Available in three color temperature options and Warm Dim (3000K-1800K) which visually warms the space as the lights are dimmed. ECO 1 includes a fixed 50 degree optic for general task and accent lighting with minimal glare. Insert up to two lenses for additional light control, sold separately.
ECO 1 pairs with a variety of trim styles and colors (round and square, with flange and flangeless) for a clean ceiling aesthetic. Rated for wet locations when used with a wet location trim.
Warm Dim with 10, 30, or 50 degree optic requires an MP (Solite Lens). Warm Dim with 80 degree optic requires an FR (Frosted Lens), sold separately.
Note: A complete fixture requires a housing, trim, (and mud-in plate for flangeless), sold separately.
Available Options
Specifications
- Finish: Black
- Size: 11.13"W x 2.38"H x 5.44"D
- Dimmer: Low Voltage Electronic
- Materials: Galvanized Steel
- Housing Type: New construction IC Airtight
- Housing Height: 2.5"
- Lamp Source: LED
-
Bulb:1 x LED/12W/120V LEDIntegrated LED module
- Total Wattage: 12 watts
- Lamp Color: 2700K
- Color Rendering: 90 CRI
- Delivered Lumens: 825 lumens
- Lumens/Watt: 68.75
- Beam Angle: 50°
- Lamp Life: 55000 hours
- Country of Origin: China

UL

Wet location

Damp Location

Airtight

Title 24 (JA8)

Warm Dim LED
Specification Sheet / Technical Files

CSL designs and manufactures performance-engineered architectural lighting fixtures. CSL Lighting products are developed to incorporate the latest lamping and electronic technologies into our fixtures to offer precision-engineered, highly-functional, energy-efficient and beautiful lighting.
