TruLine .5A 5W 24VDC Plaster-In LED System MFR ID: TL.5A-5WDC-4FT-ST27K
TruLine .5A 5W 24VDC Plaster-In LED System 30 Wall Lighting PureEdge Lighting

TruLine .5A 5W 24VDC Plaster-In LED System

By Gregory Kay, for PureEdge Lighting

TruLine .5A 5W 24VDC Plaster-In LED System

By Gregory Kay, For PureEdge Lighting

$400.50 - $665.10

COLOR TEMP:
2700K Color temperatures close to 5000K are cool colors (bluish white), while lower color temperatures (2700–3000 K) are warmer colors (yellowish white through red).

Free Shipping Icon

Usually leaves warehouse in 2-4 weeks

Based upon stock availability.

Receive a free JWDA Portable Lamp in Black with qualifying purchases over $400 with code: JWDA2023
Accessories Not Included. See accessories here.

$400.50

MFR ID: TL.5A-5WDC-4FT-ST27K | ITEM #: EDG1201003

TruLine .5A 5W 24VDC Plaster-In LED System

MFR ID: TL.5A-5WDC-4FT-ST27K

Item #: EDG1201003

Designed by Gregory KayRead Bio

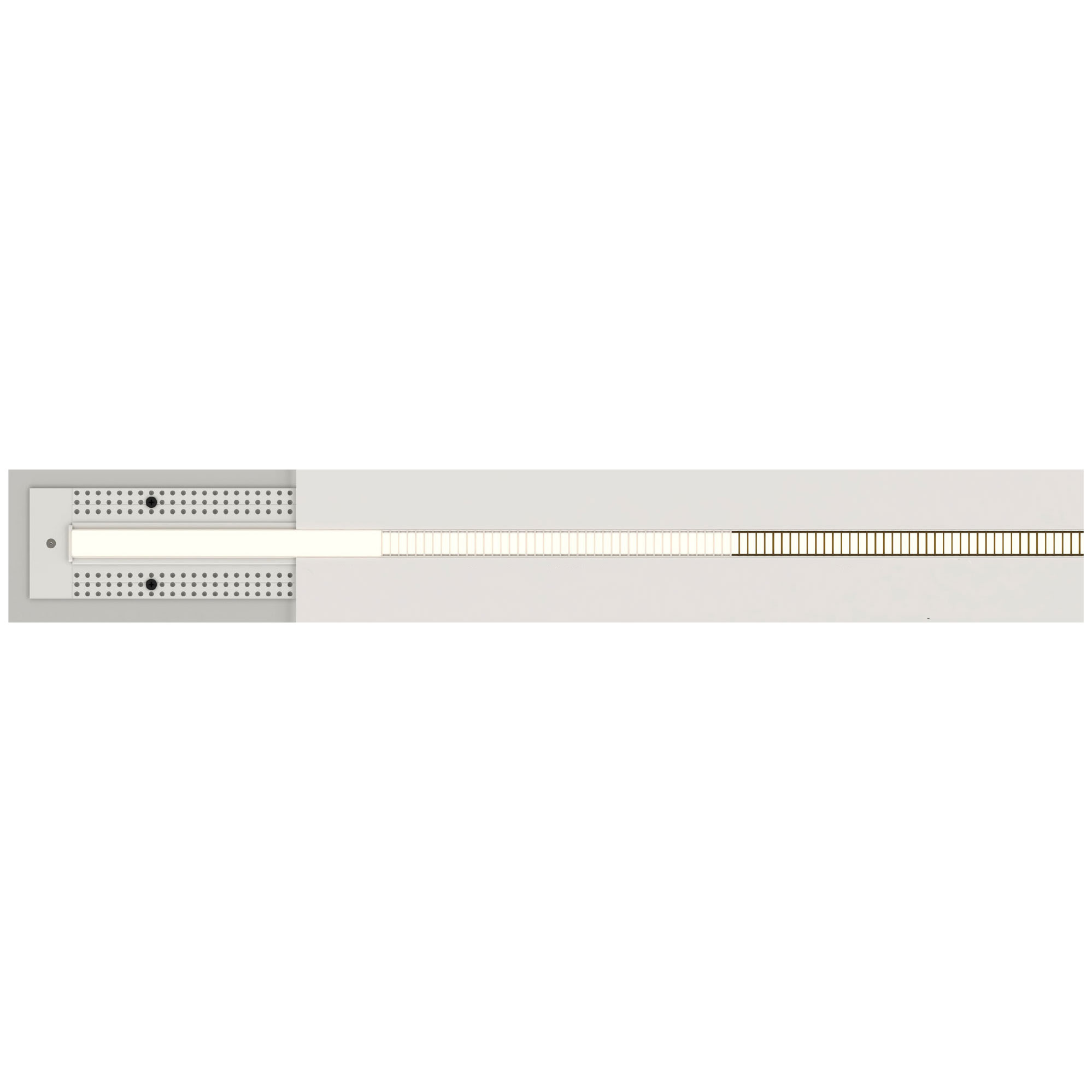

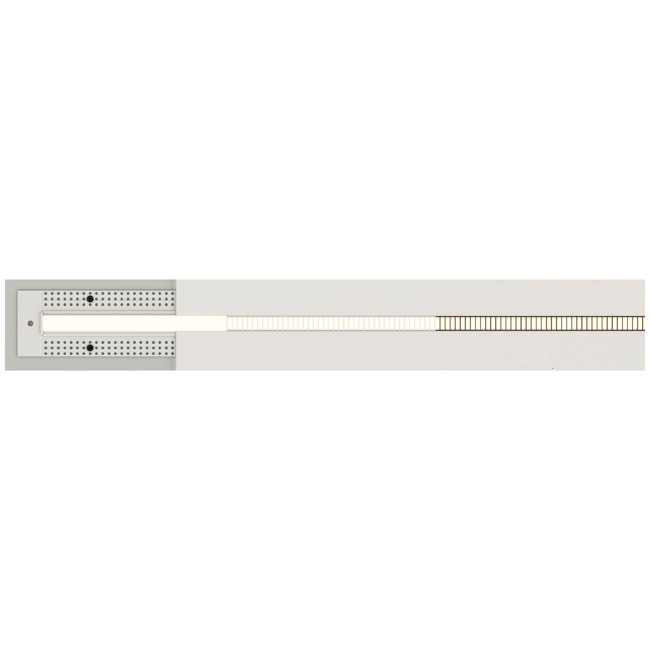

The TruLine .5A 5W 24VDC Plaster-In 24VDC LED system provides smooth and glare-free general illumination using designer-grade high CRI LEDs. TruLine .5A recesses within 5/8 inch drywall without any joist modification. The slim extrusions, LED strips, and lenses are field-cuttable.

Includes 5 watts/foot LED module in 2700K Static White, 3000K Static White, 2700K (to 1800K) Warm Dim or 3000K (to 1800K) Warm Dim color temperature options.

Can be installed on a single surface, join runs on multiple planes from wall to ceiling, or from one wall to an adjacent wall. Use TruLine .5A Build-It-Yourself (BIY) with pre-formed components to create desired configurations including mitered picture frame and outside or inside corners for room wrapping installations.

Included components: TruLine .5A channel(s), LED Soft Strip, Truline .5A Junction Box, Take-Up Box, Adjustable Mounting Bars, Mounting Strap, Power End Cap, Drywall Screw, and Lenses.

System requires a 24 volt electronic low voltage (ELV) PS-60L-ELV-24VDC power supply (ELV dimming) which fits inside junction box or remote Universal (UNI) power supply (TRIAC/ELV/0-10V dimming), sold separately. Note: Required power supply, dimmer, and optional mounting components sold separately.

Product is built to order

Specifications

    • Lamp Source: LED
    • Bulb:
      4 x LED/5W/24V LED
      LED module included
    • Total Wattage: 20 watts
    • Lamp Color: 2700K
    • Color Rendering: 95 CRI
    • Delivered Lumens: 1332 lumens
    • Lumens/Watt: 66.60
    • Lamp Life: 50000 hours
    • ETL

      ETL

    • Damp Location

      Damp Location

    • Title 24 (JA8)

      Title 24 (JA8)

    • Warm Dim LED

      Warm Dim LED

    • Prop 65 Warning for California Residents This product can expose you to chemicals, which are known in the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.p65warnings.ca.gov/.

      // Options //

      1

      TruLine .5A 5W 24VDC Plaster-In LED System

      TL.5A-5WDC-8FT-ST27K
      EDG1201005

      • Finish:
        White
      • Color:
        N/A
      • Length 96”
      • Lamp:  LED
      • Stock:  2 Quick Ship

      Price:   $543.60

      Add To cart

      2

      TruLine .5A 5W 24VDC Plaster-In LED System

      TL.5A-5WDC-8FT-ST30K
      EDG1201009

      • Finish:
        White
      • Color:
        N/A
      • Length 96”
      • Lamp:  LED
      • Stock:  2 Quick Ship

      Price:   $543.60

      Add To cart

      3

      TruLine .5A 5W 24VDC Plaster-In LED System

      TL.5A-5WDC-4FT-ST27K
      EDG1201003

      • Finish:
        White
      • Color:
        N/A
      • Length 48”
      • Lamp:  LED
      • Stock:  0

      Price:   $400.50

      Add To cart

      4

      TruLine .5A 5W 24VDC Plaster-In LED System

      TL.5A-5WDC-4FT-ST30K
      EDG1201007

      • Finish:
        White
      • Color:
        N/A
      • Length 48”
      • Lamp:  LED
      • Stock:  0

      Price:   $400.50

      Add To cart

      5

      TruLine .5A 5W 24VDC Plaster-In LED System

      TL.5A-5WDC-4FT-ST27D
      EDG1201015

      • Finish:
        White
      • Color:
        N/A
      • Length 48”
      • Lamp:  LED
      • Stock:  0

      Price:   $415.80

      Add To cart

      6

      TruLine .5A 5W 24VDC Plaster-In LED System

      TL.5A-5WDC-4FT-ST30D
      EDG1201019

      • Finish:
        White
      • Color:
        N/A
      • Length 48”
      • Lamp:  LED
      • Stock:  0

      Price:   $415.80

      Add To cart

      7

      TruLine .5A 5W 24VDC Plaster-In LED System

      TL.5A-5WDC-6FT-ST27K
      EDG1201004

      • Finish:
        White
      • Color:
        N/A
      • Length 72”
      • Lamp:  LED
      • Stock:  0

      Price:   $470.70

      Add To cart

      8

      TruLine .5A 5W 24VDC Plaster-In LED System

      TL.5A-5WDC-6FT-ST30K
      EDG1201008

      • Finish:
        White
      • Color:
        N/A
      • Length 72”
      • Lamp:  LED
      • Stock:  0

      Price:   $470.70

      Add To cart

      9

      TruLine .5A 5W 24VDC Plaster-In LED System

      TL.5A-5WDC-6FT-ST27D
      EDG1201016

      • Finish:
        White
      • Color:
        N/A
      • Length 72”
      • Lamp:  LED
      • Stock:  0

      Price:   $493.20

      Add To cart

      10

      TruLine .5A 5W 24VDC Plaster-In LED System

      TL.5A-5WDC-6FT-ST30D
      EDG1201020

      • Finish:
        White
      • Color:
        N/A
      • Length 72”
      • Lamp:  LED
      • Stock:  0

      Price:   $493.20

      Add To cart

      11

      TruLine .5A 5W 24VDC Plaster-In LED System

      TL.5A-5WDC-8FT-ST27D
      EDG1201017

      • Finish:
        White
      • Color:
        N/A
      • Length 96”
      • Lamp:  LED
      • Stock:  0

      Price:   $574.20

      Add To cart

      12

      TruLine .5A 5W 24VDC Plaster-In LED System

      TL.5A-5WDC-8FT-ST30D
      EDG1201021

      • Finish:
        White
      • Color:
        N/A
      • Length 96”
      • Lamp:  LED
      • Stock:  0

      Price:   $574.20

      Add To cart

      13

      TruLine .5A 5W 24VDC Plaster-In LED System

      TL.5A-5WDC-10FT-ST27K
      EDG1201006

      • Finish:
        White
      • Color:
        N/A
      • Length 10ft
      • Lamp:  LED
      • Stock:  0

      Price:   $626.40

      Add To cart

      14

      TruLine .5A 5W 24VDC Plaster-In LED System

      TL.5A-5WDC-10FT-ST30K
      EDG1201010

      • Finish:
        White
      • Color:
        N/A
      • Length 10ft
      • Lamp:  LED
      • Stock:  0

      Price:   $626.40

      Add To cart

      15

      TruLine .5A 5W 24VDC Plaster-In LED System

      TL.5A-5WDC-10FT-ST27D
      EDG1201018

      • Finish:
        White
      • Color:
        N/A
      • Length 10ft
      • Lamp:  LED
      • Stock:  0

      Price:   $665.10

      Add To cart

      16

      TruLine .5A 5W 24VDC Plaster-In LED System

      TL.5A-5WDC-10FT-ST30D
      EDG1201022

      • Finish:
        White
      • Color:
        N/A
      • Length 10ft
      • Lamp:  LED
      • Stock:  0

      Price:   $665.10

      Add To cart
