Element 3IN SQ Flangeless Downlight New Construction Housing 0 Recessed Lighting Visual Comfort Architectural

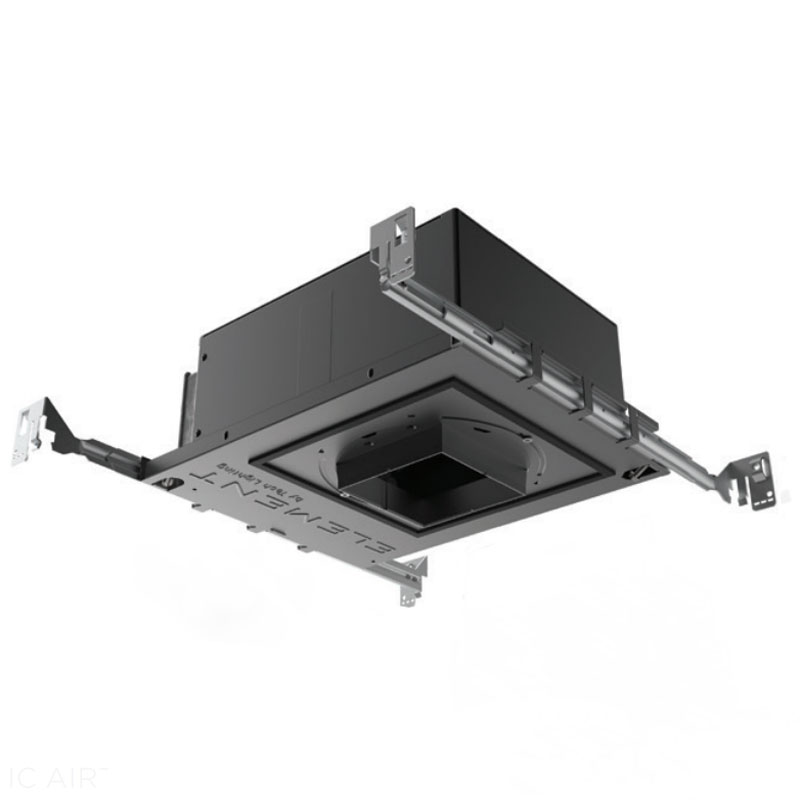

Element 3IN SQ Flangeless Downlight New Construction Housing

By Visual Comfort Architectural

LOADING PRODUCT DATA . . .
Element 3IN SQ Flangeless Downlight New Construction Housing - Black
Element 3IN SQ Flangeless Downlight New Construction Housing - Black
Element 3IN SQ Flangeless Downlight New Construction Housing - Black

Share with friends:

Element 3IN SQ Flangeless Downlight New Construction Housing

By Visual Comfort Architectural

$450.00 - $532.00

  • Manufacturer Stock: 100+
Free Shipping Icon

Usually leaves warehouse in 3-5 business days

Based upon stock availability.

Accessories Not Included. See accessories here.

$502.00

+ FREE SHIPPING

SPEC #: ELE364991 | ID: E3SLF-LH9274DC

  • Product Details
  • Specification Sheet / Technical Files
  • Shipping & Returns
    • Free ground shipping
    • Lightology offers free ground shipping on most retail web lighting orders over $100, shipped within the continental U.S.
    • Shipping to Alaska, Hawaii and Canada are available for an additional fee, and subject to change. Please contact us for a quote. Expedited Delivery is also available for an additional charge.
    • Please note that processing times posted on our website are in addition to shipping times.
    • Read Shipping Policy
    • Return Options
    • Product is cancelable/returnable within 60 days with no restocking fee. Once shipped, return shipping fee applies. Product must be new and uninstalled with all original packaging.
    • Read Return Policy
Design Services See Design Services
Help Icon Questions About This Product?
Product Rendering Icon Request Room Rendering

Element 3IN SQ Flangeless Downlight New Construction Housing

SPEC #: ELE364991

ID: E3SLF-LH9274DC

3 Inch Square 90CRI Flangeless Fixed Downlight Non-IC Airtight, IC Airtight, or Chicago Plenum New Construction Housing for square flangeless trims. Small aperture LED downlight with architectural appearance.

Includes a 12 or 17 watt LED module in three color temperature options and Warm Dim LED (3000K-1800K). Offered with a 10, 18, 25, 40 or 60 degree beam angle. 3 7/8 inch ceiling opening. Suitable for damp locations. Suitable for wet locations with shower trim option.

Includes a 120-277V Universal driver dimmable with standard reverse-phase, forward-phase, TRIAC, and 0-10V dimming. Note: A complete fixture requires a housing and trim, sold separately.

Note: Warm Dim option is not available with 10 degree beam angle.

Available Options

Finish: Black

Specifications

    • Finish: Black
    • Housing: Chicago Plenum
    • Size: 12.5"L x 9.5"W x 4"H
    • Dimmer: Low Voltage Electronic
    • Materials: Steel
    • Function: Downlight
    • Ceiling Type: Drywall Trimless/Flush
    • Housing Type: Chicago plenum approved
    • Housing Height: 4"
    • Aperture Shape: Square
    • Lamp Source: LED
    • Bulb:
      1 x LED/17W/120-277V LED
      Integrated LED module
    • Total Wattage: 17 watts
    • Lamp Color: 2700K
    • Color Rendering: 90 CRI
    • Delivered Lumens: 1200 lumens
    • Lumens/Watt: 70.59
    • Beam Angle: 40°
      ETL

      ETL

      Damp Location

      Damp Location

      Airtight

      Airtight

      Title 24 (JA8)

      Title 24 (JA8)

      Warm Dim LED

      Warm Dim LED

      Specification Sheet / Technical Files

      Prop 65 Warning for California Residents This product can expose you to chemicals, which are known in the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.p65warnings.ca.gov/.
      Brand Logo

      The Visual Comfort Architectural Collection, formerly known as Element by Tech Lighting, helps homeowners, interior designers, and businesses accomplish their design dreams due through an absolute commitment to innovation and high-quality lighting. These sophisticated and contemporary lighting fixtures can make the remodeling or redecorating of any interior or outdoor space simple. Lightology offers a wide selection of customizable lighting from the Visual Comfort Architectural Collection.
