Light Channel .6 Warm Dim Surface Mount Micro Grazer
By Gregory Kay, for PureEdge Lighting
Light Channel .6 Warm Dim Surface Mount Micro Grazer
By Gregory Kay, For PureEdge Lighting
$201.00 - $650.00
Color:
Clear Lens
Length:
12”
COLOR TEMP:
2700K Warm Dim
Color temperatures close to 5000K are cool colors (bluish white), while lower color temperatures (2700–3000 K) are warmer colors (yellowish white through red).
Usually leaves warehouse in 2-4 weeks
Based upon stock availability.
$201.00
+ FREE SHIPPING
SPEC #: EDG648091 | ID: LCMG.6-5W-12-C27D-SA
Light Channel .6 Warm Dim Surface Mount Micro Grazer
SPEC #: EDG648091
ID: LCMG.6-5W-12-C27D-SA
Designed by Gregory KayRead Bio

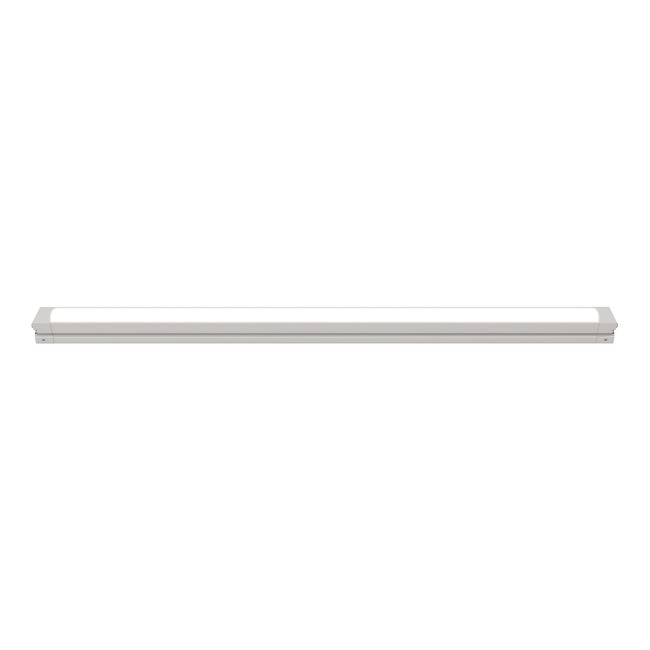

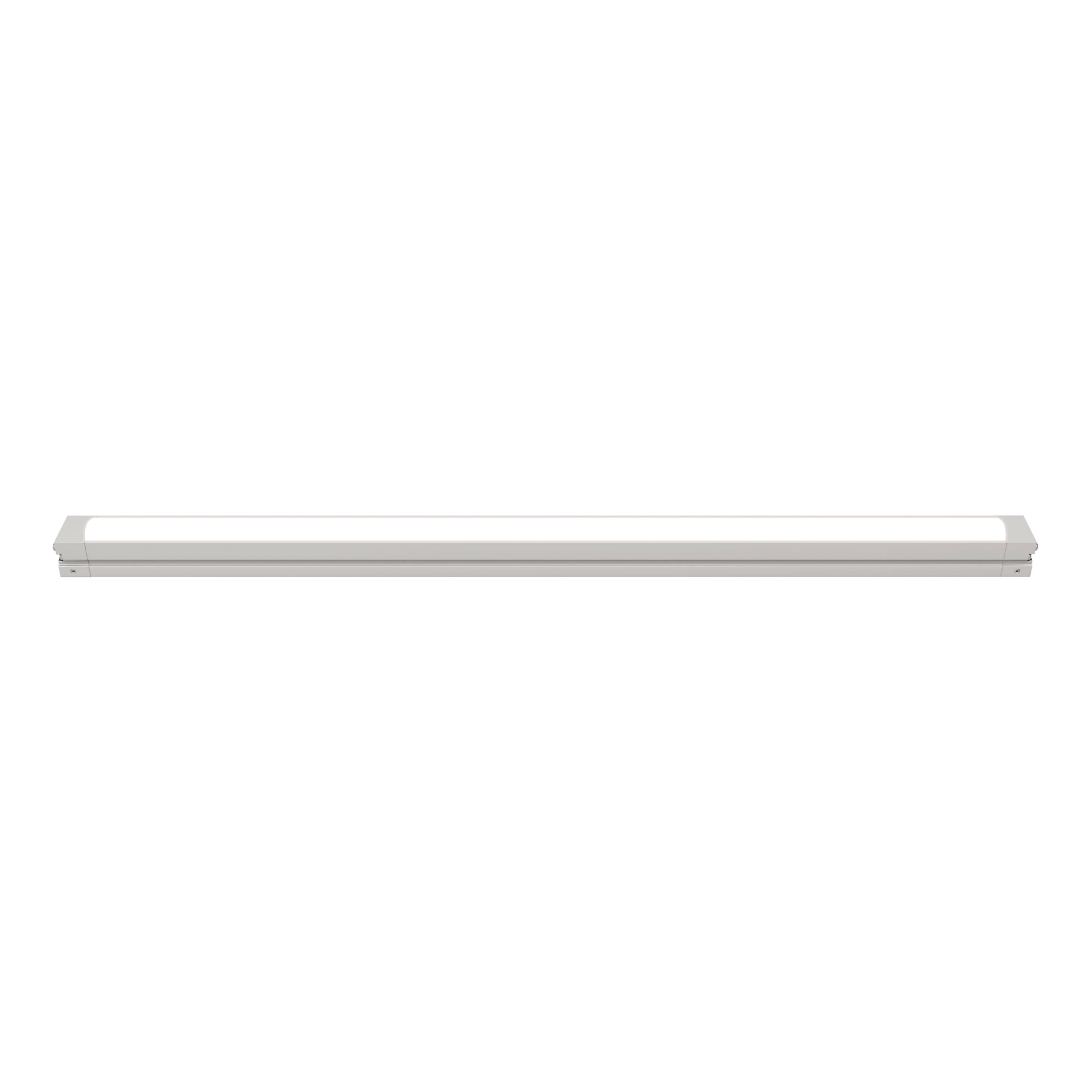

The Light Channel .6 Warm Dim Micro Grazer is a slim profile made-to-order channel designed to bring life to textured walls, panels, masonry and undulating tiles.
The Micro Grazer is available in 12 inch increments up to 120 inches with a 20 degree linear frosted lens (projects some pixelation) or a clear 7 degree transparent clear lens (LED diodes will show) for maximum light levels. Available in a 5 watts (4.8 watts) per foot option with Warm Dim 27D (2700K-1800K) or 30D (3000K-2000K) color temperature. Warm Dim technology mimics an incandescent atmosphere by decreasing the color temperature as you dim.
Included components: Light Channel Micro Grazer Assembly, 96 inch Power Connector (one per fixture), 24VDC LED Soft Strip, mounting clips (included with every 2 feet of channel), end caps, lever nuts, and lens.
A PS-60L-ELV-24VDC (50 watt ELV power supply will fit inside a standard junction box), or a remote Universal power supply is required and sold separately. Note: Required power supply, dimmer control, and optional mounting accessories sold separately.
Available Options
Specifications
- Finish: Satin Aluminum
- Color: Clear Lens
- Size: 12"L x 0.7"W x 0.61"H
- Dimmer: Low Voltage Electronic
- Lamp Source: LED
-
Bulb:1 x LED/5W/24V LEDIntegrated LED module
- Total Wattage: 5 watts
- Lamp Color: 2700K Warm Dim
- Color Rendering: 92 CRI
- Delivered Lumens: 242 lumens
- Lumens/Watt: 48.40
- Lamp Life: 50000 hours

ETL

Damp Location

Title 24 (JA8)

Warm Dim LED
Specification Sheet / Technical Files
