2X2 Trimmed Flanged Chicago Plenum Non-IC Housing
$792.00 - $872.00
Finish:
Black
WATTAGE:
12W
Dimming:
ELV
Usually leaves warehouse in 2-4 weeks
Based upon stock availability.
$792.00
+ FREE SHIPPING
SPEC #: ELE934801 | ID: EMTH22FLOC120ELVB
2X2 Trimmed Flanged Chicago Plenum Non-IC Housing
SPEC #: ELE934801
ID: EMTH22FLOC120ELVB

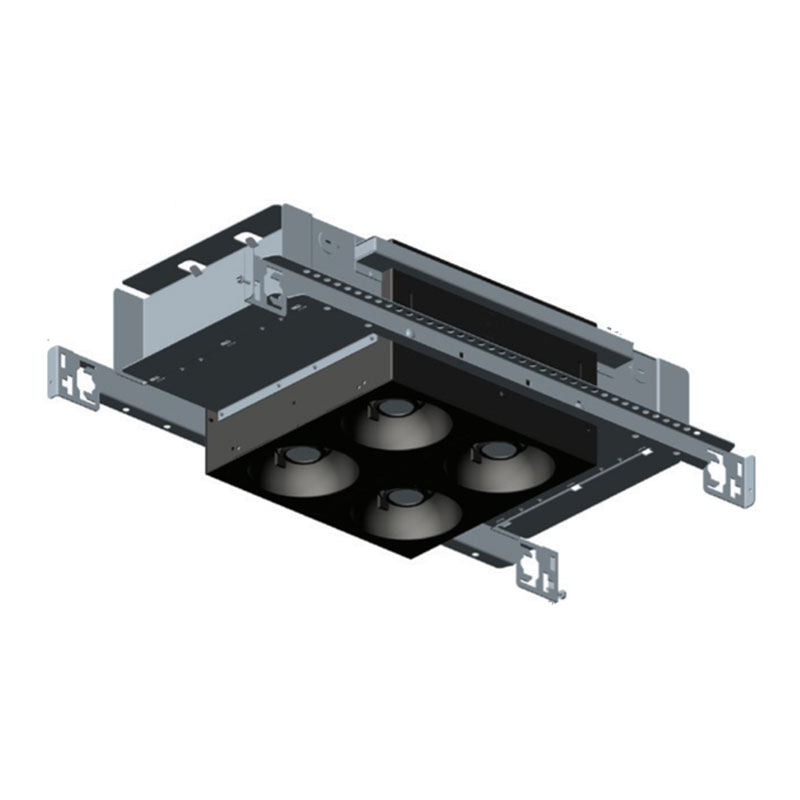

2X2 Trimmed Flanged 4-Light Chicago Plenum Non-IC Housing is constructed of heavy gauge cold rolled steel with durable Black or White powder coat finish. Available in a low output (4 x 12 watt) or high output (4 x 17 watt) option. Features a unique patented LED spot dome module enabling tool-free adjustment and locking while maintaining center beam through the aperture. 35 degree tilt, 360 degree rotation. Low profile design for use in standard 2X6 construction. Accommodates up to 2 inch ceiling thickness. Includes integrated junction box approved for branch circuit through wiring. Housing includes individual driver for each module (ie: 4 drivers in a 2x2). 5 inch x 5 inch ceiling cut-out per module. ETL listed. Suitable for damp locations. 5 year warranty. Dimming Options: Electronic low voltage (ELV) down to <1% or 0-10V down to 5%. A complete fixture includes housing, light module (must order corresponding number of modules based on housing size), and trim, sold separately.
Available Options
Specifications
- Finish: Black
- Dimming: ELV
- Size: 24.4"L x 11.3"W x 5.8"H
- Shipping Weight: 28.00 lbs
- Dimmer: Low Voltage Electronic
- Materials: Steel
- Ceiling Type: Drywall with Trim
- Housing Type: Chicago plenum approved
- Housing Height: 6"
- Aperture Size: 2.800"
- Lamp Source: LED
-
Bulb:4 x LED/12W/120V LEDIntegrated LED module
- Total Wattage: 48 watts
- Delivered Lumens: 4992 lumens
- Lumens/Watt: 104.00
ETL
Damp Location
