Element 3IN SQ Flanged Dual Adj New Construction Housing
By Visual Comfort Architectural
LOADING PRODUCT DATA . . .
Element 3IN SQ Flanged Dual Adj New Construction Housing
$840.00 - $952.00
COLOR TEMP:
3000K Warm Dim
Color temperatures close to 5000K are cool colors (bluish white), while lower color temperatures (2700–3000 K) are warmer colors (yellowish white through red).
WATTAGE:
12W
BEAM ANGLE:
60°
Housing:
Non-IC Airtight
Usually leaves warehouse in 2-4 weeks
Based upon stock availability.
$900.00
+ FREE SHIPPING
SPEC #: ELE945450 | ID: E3SF-LOWD6DAN
Element 3IN SQ Flanged Dual Adj New Construction Housing
SPEC #: ELE945450
ID: E3SF-LOWD6DAN

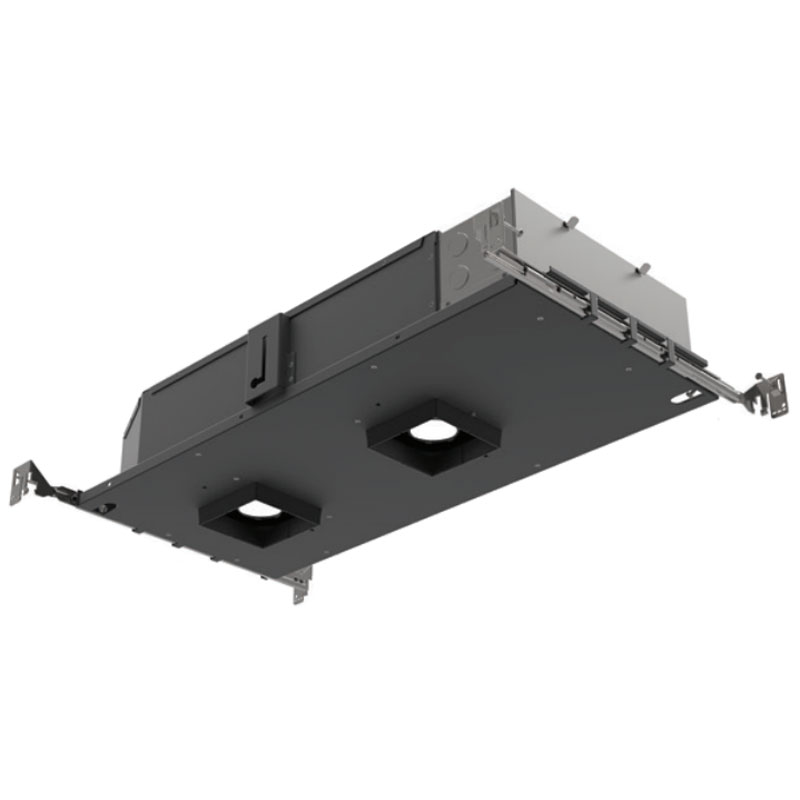

3 Inch Square 90CRI Flanged Dual Adjustable Non IC Airtight, IC Airtight, or Chicago Plenum New Construction Housing for square flanged trims features two closely spaced independently adjustable downlights. Offered with lockable, hot aiming with 0-40 degree tilt and 361 degree rotation ability.
Includes two 12 or 17 watt LED modules in 2700K, 3000K or 3500K color temperature options or Warm Dim LED (3000K-1800K). Offered with a 10, 18, 25, 40 or 60 degree beam angle. 3 7/8 inch ceiling opening. Suitable for damp locations. Suitable for wet locations with shower trim option.
Includes a 120-277V Universal driver dimmable with standard reverse-phase, forward-phase, TRIAC, and 0-10V dimming. Note: A complete fixture requires a housing and two trims, sold separately.
Note: Warm Dim option is not available with 10 degree beam angle.
Available Options
Specifications
- Finish: Black
- Housing: Non-IC Airtight
- Size: 25.9"L x 11.5"W x 4.1"H
- Shipping Weight: 23.00 lbs
- Dimmer: Low Voltage Electronic
- Materials: Steel
- Function: Adjustable Accent
- Ceiling Type: Drywall with Trim
- Housing Type: New construction NON IC Airtight
- Housing Height: 4"
- Aperture Shape: Square
- Lamp Source: LED
-
Bulb:2 x LED/12W/120-277V LEDIntegrated LED module
- Total Wattage: 24 watts
- Lamp Color: 3000K Warm Dim
- Color Rendering: 90 CRI
- Delivered Lumens: 1800 lumens
- Lumens/Watt: 75.00
- Beam Angle: 60°
- Lamp Life: 50000 hours
ETL
Damp Location
Airtight
Title 24 (JA8)
Warm Dim LED
Specification Sheet / Technical Files
Prop 65 Warning for California Residents
This product can expose you to chemicals, which are known in the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.p65warnings.ca.gov/.
The Visual Comfort Architectural Collection, formerly known as Element by Tech Lighting, helps homeowners, interior designers, and businesses accomplish their design dreams due through an absolute commitment to innovation and high-quality lighting. These sophisticated and contemporary lighting fixtures can make the remodeling or redecorating of any interior or outdoor space simple. Lightology offers a wide selection of customizable lighting from the Visual Comfort Architectural Collection.
