2IN SQ Flanged Adjustable Downlight Chicago Plenum Housing
By Visual Comfort Architectural
LOADING PRODUCT DATA . . .
2IN SQ Flanged Adjustable Downlight Chicago Plenum Housing
$380.00 - $410.00
COLOR TEMP:
2700K
Color temperatures close to 5000K are cool colors (bluish white), while lower color temperatures (2700–3000 K) are warmer colors (yellowish white through red).
WATTAGE:
12W
BEAM ANGLE:
20°
Usually leaves warehouse in 2-4 weeks
Based upon stock availability.
$380.00
+ FREE SHIPPING
SPEC #: ELE930283 | ID: E2SF-LO92720AC
2IN SQ Flanged Adjustable Downlight Chicago Plenum Housing
SPEC #: ELE930283
ID: E2SF-LO92720AC

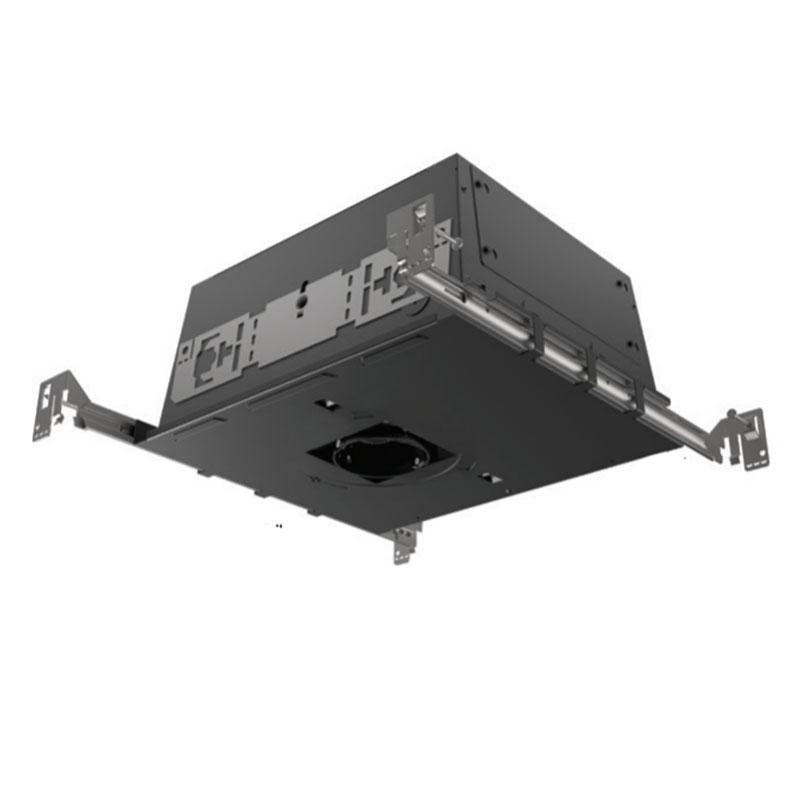

The 2 Inch Square Flanged Adjustable Downlight Chicago Plenum Housing is constructed of heavy gauge cold rolled steel with a durable Black powder coat finish. This specification grade housing features an integral 12 watt (average 930 lumens) or 17 watt (average 1250 lumens) LED module in three color temperature options with 20, 30, 40 or 60 degree beam angle, or Warm Dim (3000K to 1800K) in low output 12 watt (average 850 lumens) and 20, 30, 40 or 60 degree beam angle.
2.75 inch ceiling cutout, suitable for ceilings up to 2 inch thick. ETL listed. Suitable for damp locations. Title 24 compliant. 5 year warranty. Dimmable down to 5 percent with an electronic low voltage (ELV) or 1 percent with a 0-10V dimmer, sold separately. A complete fixture consists of a housing and trim, sold separately.
NOTE: WARM DIM OPTION AVAILABLE IN LOW OUTPUT (12 WATT) ONLY.
Available Options
Specifications
- Finish: Black
- Dimming: ELV
- Size: 12"L x 10"W x 5.25"H
- Shipping Weight: 9.50 lbs
- Dimmer: Low Voltage Electronic
- Ceiling Type: Drywall with Trim
- Housing Type: Chicago plenum approved
- Housing Height: 6"
- Aperture Shape: Square
- Aperture Size: 2.000"
- Lamp Source: LED
-
Bulb:1 x LED/12W/120V LEDIntegrated LED module
- Total Wattage: 12 watts
- Lamp Color: 2700K
- Color Rendering: 90 CRI
- Delivered Lumens: 939 lumens
- Lumens/Watt: 78.25
- Beam Angle: 20°
- Lamp Life: 50000 hours
ETL
Damp Location
Specification Sheet / Technical Files
