Ocularc 3IN Round Color-Select Downlight Trim with Housing

Name: Ocularc 3IN Round Color-Select Downlight Trim with Housing
Brand: WAC Lighting
SKU: WAC1425083
Price: 231.95 USD
Availability: InStock

By WAC Lighting

LOADING PRODUCT DATA . . .

Ocularc 3IN Round Color-Select Downlight Trim with Housing - White

Ocularc 3IN Round Color-Select Downlight Trim with Housing - Brushed Nickel

Ocularc 3IN Round Color-Select Downlight Trim with Housing

By WAC Lighting

(0)

Q&A (0)

$231.95

Finish:
White

BEAM ANGLE:
18°

Usually leaves warehouse in 1-3 business days

Based upon stock availability.

$231.95

+ FREE SHIPPING

SPEC #: WAC1425083 | ID: R3BRD-SCS-WT

Product Details
- - Finish: White
  - Size: 4.75"W x 3.88"H
  - Dimmer: Low Voltage Electronic
  - Materials: Glass, Die Cast Aluminum
  - Function: Downlight
  - Ceiling Type: Drywall with Trim
  - Housing Type: New construction IC Airtight
  - Housing Height: 4"
  - Aperture Shape: Round
  - Lamp Source: LED
  - Bulb:
    1 x LED/13W/120-277V LED
    Integrated LED module
  - Total Wattage: 13 watts
  - Lamp Color: CCT Select
  - Color Rendering: 90 CRI
  - Delivered Lumens: 1040 lumens
  - Lumens/Watt: 80.00
  - Beam Angle: 18°
  - Lamp Life: 50000 hours
- - ETL
  - Wet location
  - Energy Star
  - Title 24 (JA8)
- See full description
Specification Sheet / Technical Files
Shipping & Returns
- Free ground shipping
- Lightology offers free ground shipping on most retail web lighting orders over $100, shipped within the continental U.S.
- Shipping to Alaska, Hawaii and Canada are available for an additional fee, and subject to change. Please contact us for a quote. Expedited Delivery is also available for an additional charge.
- Please note that processing times posted on our website are in addition to shipping times.
- Read Shipping Policy
- Return Options
- Product is cancelable/returnable within 60 days with no restocking fee. Once shipped, return shipping fee applies. Product must be new and uninstalled with all original packaging.
- Read Return Policy

See Design Services

Questions About This Product?

Request Room Rendering

Ocularc 3IN Round Color-Select Downlight Trim with Housing

SPEC #: WAC1425083

ID: R3BRD-SCS-WT

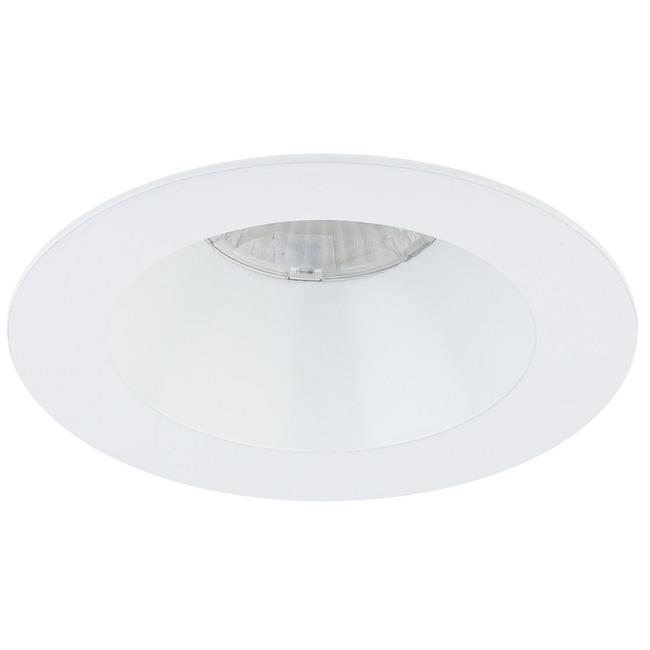

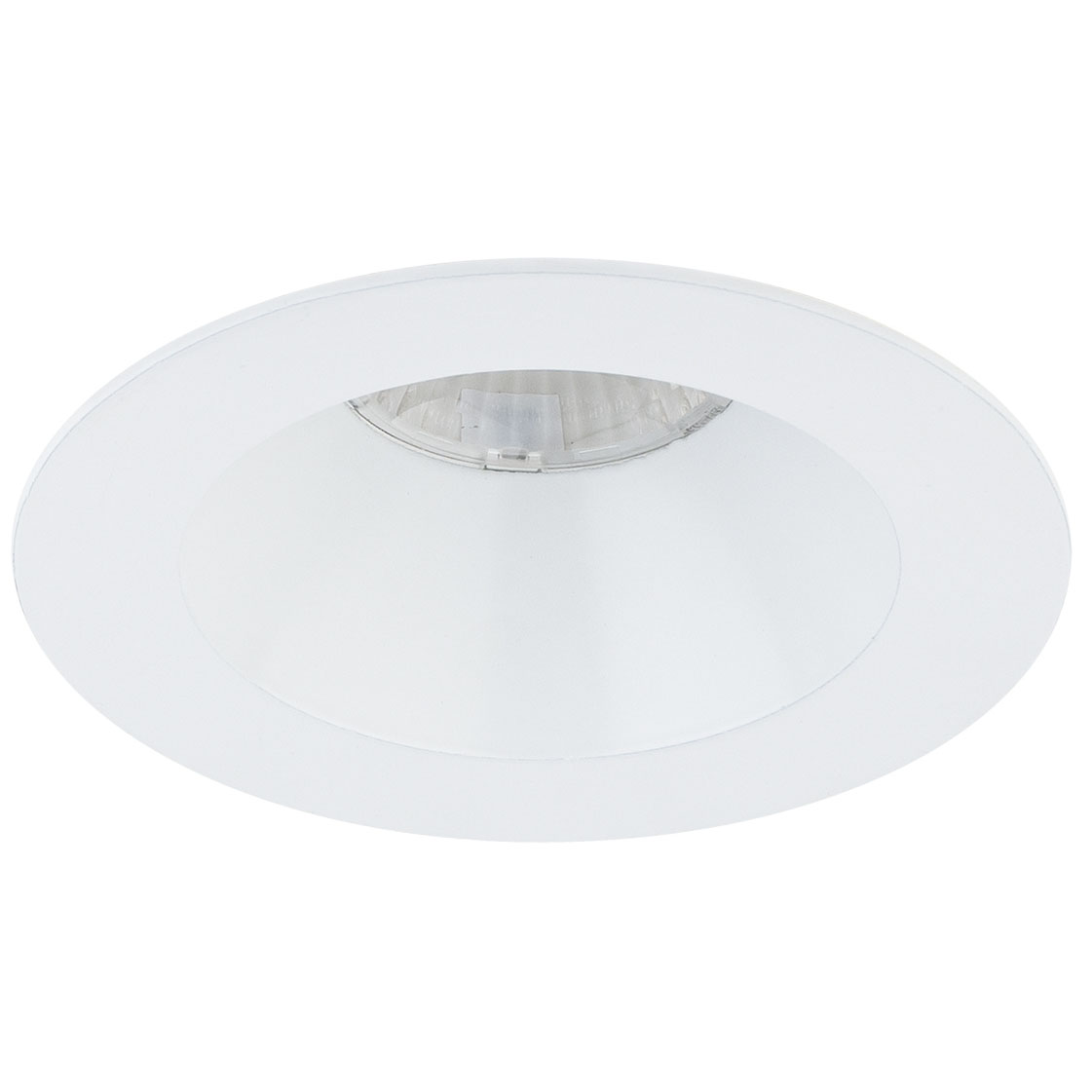

The Ocularc 3 Inch Round Downlight includes a trim and shallow IC Airtight New Construction Housing with driver designed to fit in tight plenum spaces. Compatible with ceiling thickness of 0.5-1.5 inches. Cutout: 4.25 inch. IC Rated: suitable for direct contact with insulation.

Ocularc includes a color-select switch which allows user to field select between 2700K, 3000K, 3500K, 4000K and 5000K color temperature options. Includes TIR lens. TRIAC and ELV dimming at 120V. 0-10V dimming at 277V.

NOTE: Sold as new construction, but may be reconfigured in the field for remodel.

Available Options

Finish: Black, Brushed Nickel, White, White / Haze Reflector

Specifications

- Finish: White
- Size: 4.75"W x 3.88"H
- Dimmer: Low Voltage Electronic
- Materials: Glass, Die Cast Aluminum
- Function: Downlight
- Ceiling Type: Drywall with Trim
- Housing Type: New construction IC Airtight
- Housing Height: 4"
- Aperture Shape: Round
- Lamp Source: LED
- Bulb:
  1 x LED/13W/120-277V LED
  Integrated LED module
- Total Wattage: 13 watts
- Lamp Color: CCT Select
- Color Rendering: 90 CRI
- Delivered Lumens: 1040 lumens
- Lumens/Watt: 80.00
- Beam Angle: 18°
- Lamp Life: 50000 hours

ETL

Wet location

Energy Star

Title 24 (JA8)

Specification Sheet / Technical Files
