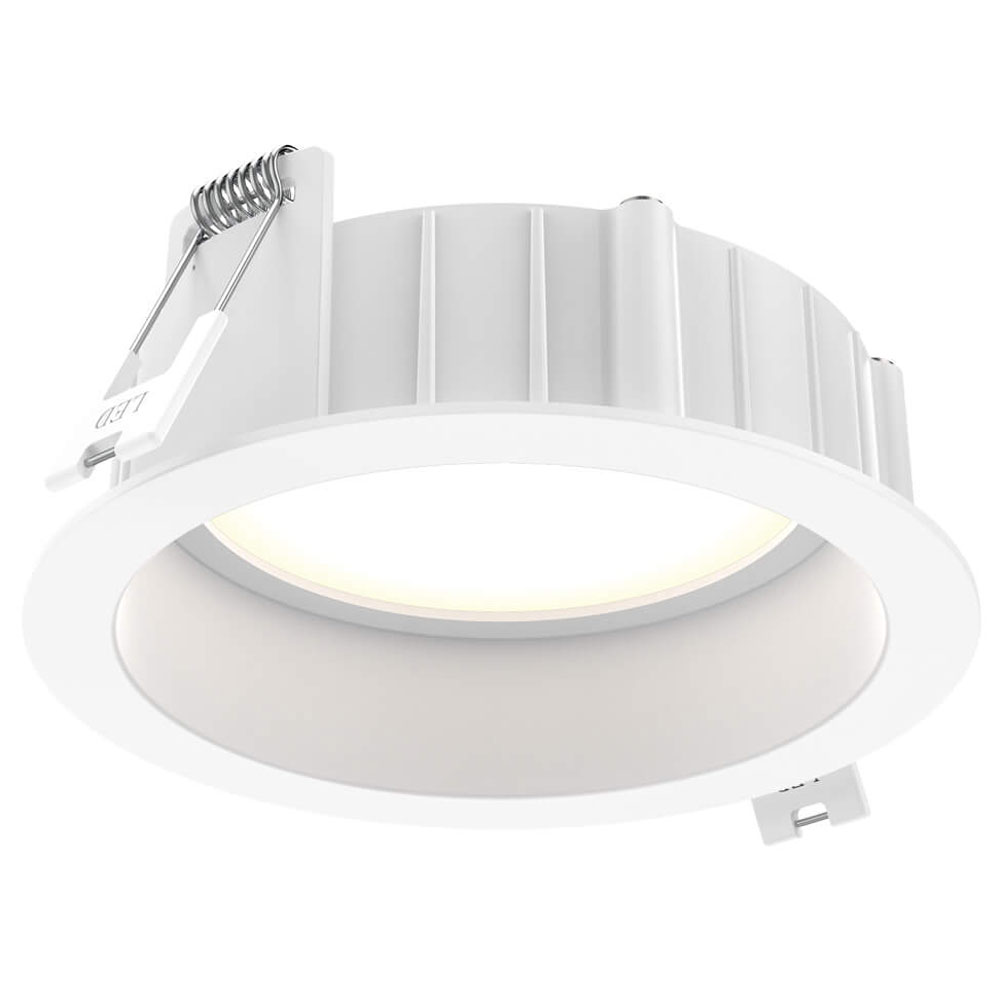

Notch Color-Select Regressed Panel Light
$32.50 - $76.82
Finish:
White
Size:
4 Inch 120V
- Manufacturer Stock: 37
Usually leaves warehouse in 3-5 business days
Based upon stock availability.
$40.74
SPEC #: DLS1231615 | ID: DRR4-CC-WH
Notch Color-Select Regressed Panel Light
SPEC #: DLS1231615
ID: DRR4-CC-WH
The Notch Regressed Panel Downlight is characterized by a deep-set LED position which greatly reduces glare, neatly packaged in a price-conscious solution to general lighting. Smooth 360 degree wide spread. Every fixture includes a junction box with an integrated driver. Can be daisy chained. Switch-selectable color temperature: 2700K/3000K/3500K/4000K/5000K with switch on panel wire. Frosted lens. Optional trims sold separately. 120V: TRIAC and ELV dimming (see attached manufacturer dimmer reference). 120-277V: 0-10V dimming.
NOTE: 2 inch available in Black and White finishes. All other options available in White finish only.
Available Options
Specifications
- Finish: White
- Reflector/Baffle Color: White
- Size: 4 Inch 120V
- Size: 4.75"W x 1.88"H
- Dimmer: Standard 120V
- Materials: Aluminum, Acrylic
- Function: Downlight
- Ceiling Type: Drywall with Trim
- Housing Type: Remodel IC Airtight
- Housing Height: 2"
- Aperture Shape: Round
- Aperture Size: 3.810"
- Lamp Source: LED
-
Bulb:1 x LED/11W/120V LEDIntegrated LED module
- Total Wattage: 11 watts
- Lamp Color: CCT Select
- Color Rendering: 90 CRI
- Delivered Lumens: 796 lumens
- Lumens/Watt: 72.36
- Beam Angle: 100°
- Lamp Life: 50000 hours
- Cutout Size (in): 4.25"
- Switch-Selectable Color Temperature: 2700K/3000K/3500K/4000K/5000K
- Country of Origin: China
ETL
Wet location
Airtight
Title 24 (JA8)
Specification Sheet / Technical Files
Prop 65 Warning for California Residents
This product can expose you to chemicals, which are known in the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.p65warnings.ca.gov/.
Options
1
Notch Color-Select Regressed Panel Light
-
FINISH:White
-
COLOR:White
-
Height:
1.9”
-
LAMP:
LED
-
STOCK:
37
Price: $40.74
2
Notch Color-Select Regressed Panel Light
-
FINISH:White
-
COLOR:White
-
Height:
1.9”
-
LAMP:
LED
-
STOCK:
27
Price: $32.50
3
Notch Color-Select Regressed Panel Light
-
FINISH:White
-
COLOR:White
-
Height:
1.9”
-
LAMP:
LED
-
STOCK:
23
Price: $76.82
4
Notch Color-Select Regressed Panel Light
-
FINISH:White
-
COLOR:White
-
Height:
1.9”
-
LAMP:
LED
-
STOCK:
5
Price: $55.88
5
Notch Color-Select Regressed Panel Light
-
FINISH:Black
-
COLOR:White
-
Height:
1.9”
-
LAMP:
LED
-
STOCK:
2
Price: $32.50
6
Notch Color-Select Regressed Panel Light
-
FINISH:White
-
COLOR:White
-
Height:
1.9”
-
LAMP:
LED
-
STOCK:
0
Price: $55.88
