Light Placement Tool for Recessed,
Accent, Track or Monorail Lighting

Avoid reflected glare on artwork by shining accent lighting onto the art at a 30 degree angle. Use these charts to find recommended ideal distance from an art wall to mount your recessed lighting, track, or rail fixture to achieve the perfect light.

Track & Rail Placement

Use this tool to determine proper track light spacing and positioning based on a 30-degree angle from the wall. Fine-tune the layout to achieve consistent, balanced wall wash and optimal illumination.

Chart for Track and Monorail Distance Out vs Ceiling Height

Recessed Lighting Placement

Use this tool to determine proper recessed lighting spacing and positioning based on a 30-degree angle from the wall. Fine-tune the layout to achieve optimal illumination.

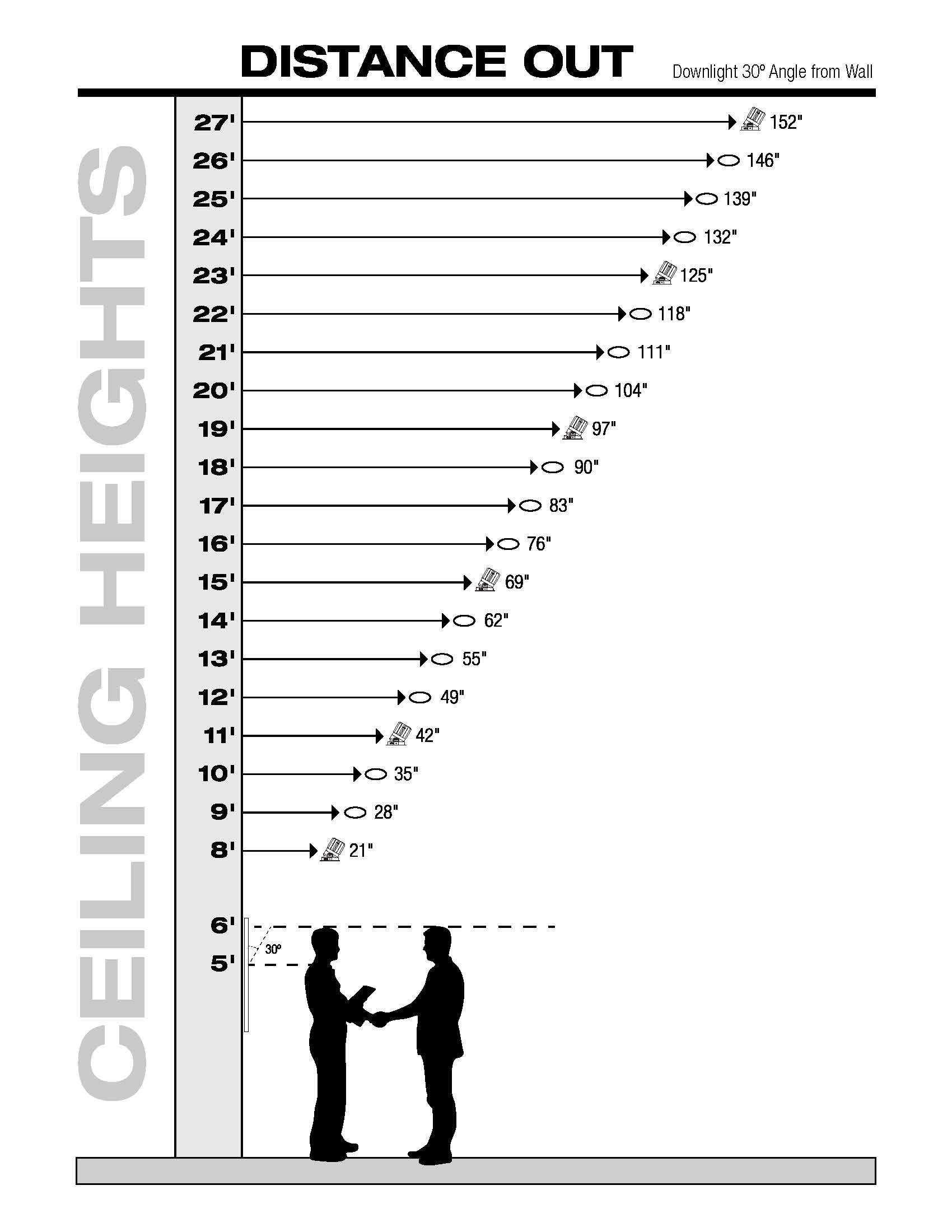

Chart for Recessed Lighting Distance Out vs Ceiling Height
