Minifit Adjustable Gimbal with External Driver

SPEC #: GRC1080815

ID: GC-98439

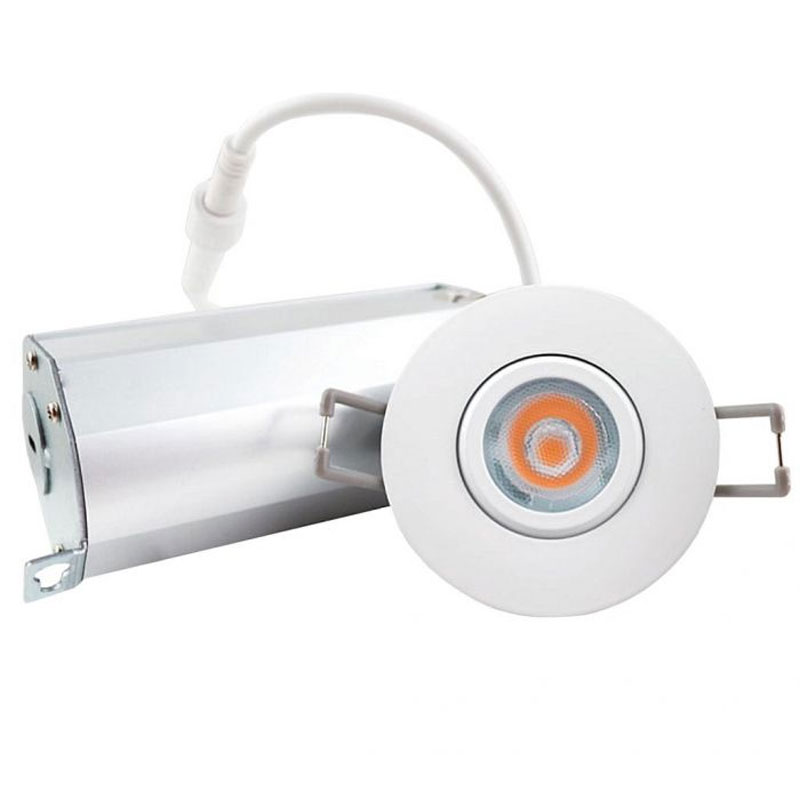

The Minifit Adjustable Gimbal with External Driver is an IC and Air-tight fixture designed for new and remodel construction shallow plenum applications including soffits, bulkheads and casework.

Die cast aluminum optical assembly with polycarbonate lens fits in a spun aluminum trim for a clean look. Fixture can rotate 360 degrees and tilts up to 30 degrees. 38 degree flood beam angle. Fixture installs and is accessible from below the ceiling. Plenum rated quick connect cable allows for easy wiring. Spring clips accommodate ceiling thickness between .50 to 2 inch.

Includes 120 volt external driver, dimmable to 10% with TRIAC and ELV.

Note: Minifit can be used for new construction applications with new construction mounting plate accessory, sold separately.

Available Options

Finish: White

Specifications

    • Finish: White
    • Size: 1 Inch
    • Size: 2.5"W x 1.63"H
    • Dimmer: Low Voltage Electronic
    • Function: Adjustable Accent
    • Ceiling Type: Drywall with Trim
    • Housing Type: Remodel IC Airtight
    • Housing Height: 2"
    • Aperture Shape: Round
    • Aperture Size: 1.880"
    • Lamp Source: LED
    • Bulb:
      1 x LED/120V LED
      Integrated LED module
    • Total Wattage: 5 watts
    • Lamp Color: 2700K
    • Color Rendering: 90 CRI
    • Delivered Lumens: 320 lumens
    • Lumens/Watt: 64.00
    • Beam Angle: 38°
    • Lamp Life: 50000 hours
    • ETL

      ETL

    • Energy Star

      Energy Star

    • Damp Location

      Damp Location

    • Airtight

      Airtight

    • Title 24 (JA8)

      Title 24 (JA8)

      • Specification Sheet / Technical Files
