Mini Star 24VDC Linear Static White/Color Outdoor Light
By PureEdge Lighting
Mini Star 24VDC Linear Static White/Color Outdoor Light
$387.00 - $709.00
Finish:
Satin Aluminum
Length:
24”
COLOR TEMP:
2700K
Color temperatures close to 5000K are cool colors (bluish white), while lower color temperatures (2700–3000 K) are warmer colors (yellowish white through red).
Option:
40 Degree Lens
Usually leaves warehouse in 8-12 weeks
Based upon stock availability.
$387.00
+ FREE SHIPPING
SPEC #: EDG1102181 | ID: MSLO-24V-24W24-40-27K-SA
Mini Star 24VDC Linear Static White/Color Outdoor Light
SPEC #: EDG1102181
ID: MSLO-24V-24W24-40-27K-SA

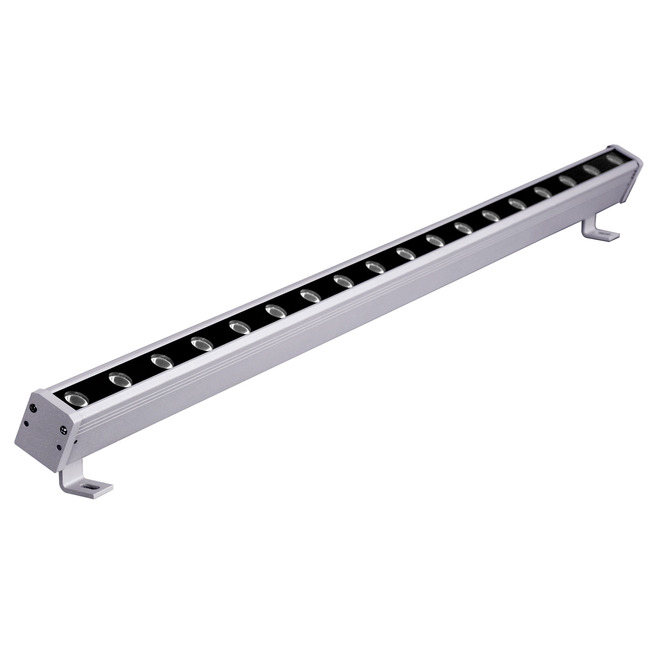

Clean lines paired with a minimal profile create the Mini Star Outdoor Linear LED fixture. Using state-of-the-art technology the Mini Star is a workhorse housed in a compact design. With the ability to mount on the ceiling, wall or floor and choice of various lens options, the Mini Star is perfect for wall grazing, wall washing, and general outdoor lighting applications.
Offered in Black powder coat or Satin Aluminum finish in two standard lengths and three lens options in a variety of static white and static color options.
Mini Star requires a wet rated remote Universal power supply (dimmable with ELV, 0-10, TRIAC), or from a remote indoor location power supply, sold separately. Multiple fixtures can be ganged together up to 100 watts before re-feeding.
Note: Required power supply, wet location junction box, dimmer control and optional accessories sold separately.
Available Options
Specifications
- Finish: Satin Aluminum
- Option: 40 Degree Lens
- Size: 24"L x 1.7"W x 2"H
- Dimmer: Low Voltage Electronic
- Materials: Die Cast Aluminum, Tempered Glass, Aluminum Alloy
- Lamp Source: LED
-
Bulb:1 x LED/24W/24V LEDIntegrated LED module
- Total Wattage: 24 watts
- Lamp Color: 2700K
- Color Rendering: 83 CRI
- Delivered Lumens: 1512 lumens
- Lumens/Watt: 63.00
- Beam Angle: 40°
- Lamp Life: 50000 hours

ETL

Wet location

Title 24 (JA8)
Specification Sheet / Technical Files
