Element 3IN RD Flanged Downlight New Construction Housing
By Visual Comfort Architectural
LOADING PRODUCT DATA . . .
Element 3IN RD Flanged Downlight New Construction Housing
$420.00 - $502.00
- Manufacturer Stock: 5
Usually leaves warehouse in 3-5 business days
Based upon stock availability.
$472.00
+ FREE SHIPPING
SPEC #: ELE364725 | ID: E3RFF-LH9271DC

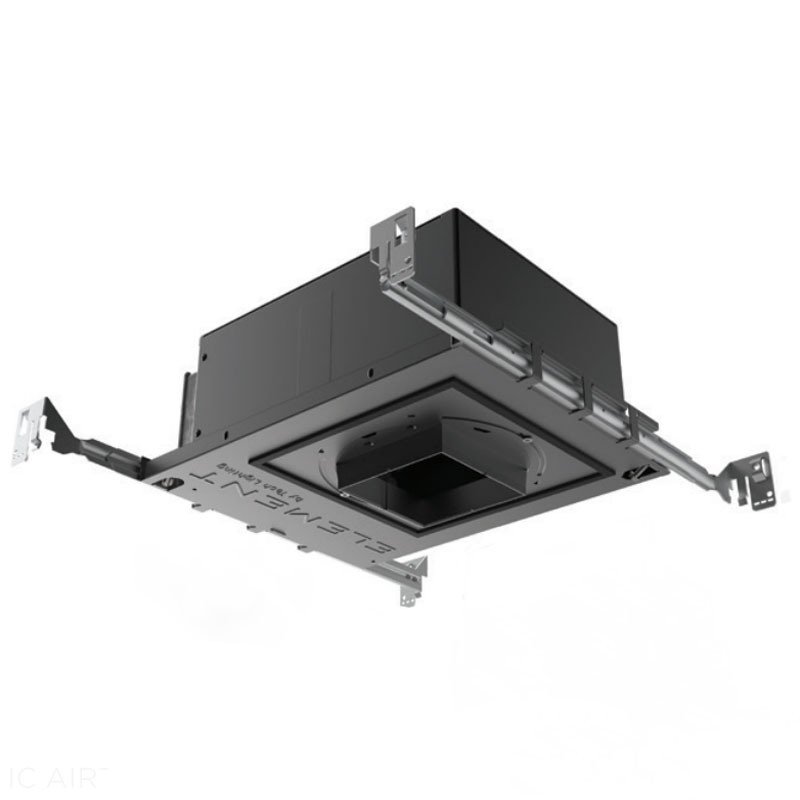

Element 3IN RD Flanged Downlight New Construction Housing
SPEC #: ELE364725
ID: E3RFF-LH9271DC
3 Inch Round 90CRI Fixed Downlight Non-IC Airtight, IC Airtight, or Chicago Plenum New Construction Housing for round flanged trims. Small aperture LED downlight with architectural appearance.
Includes 12 or 17 watt LED module with choice of 2700K, 3000K or 3500K color temperature or Warm Dim (3000K-1800K) and 10, 18, 25, 40 or 60 degree beam angle options. 3 7/8 inch ceiling opening. Suitable for damp locations. Suitable for wet locations with shower trim option.
Includes a 120-277V Universal driver dimmable with standard reverse-phase, forward-phase, TRIAC, and 0-10V dimming. Note: A complete fixture requires a housing and trim, sold separately.
Note: Warm Dim option is not available with 10 degree beam angle.
Available Options
Specifications
- Finish: Black Powder Coat
- Housing: Chicago Plenum
- Size: 12.5"W x 4"H x 9.5"D
- Dimmer: Low Voltage Electronic
- Materials: Steel
- Function: Downlight
- Ceiling Type: Drywall with Trim
- Housing Type: Chicago plenum approved
- Housing Height: 4"
- Aperture Shape: Round
- Lamp Source: LED
-
Bulb:1 x LED/17W/120-277V LEDIntegrated LED module
- Total Wattage: 17 watts
- Lamp Color: 2700K
- Color Rendering: 90 CRI
- Delivered Lumens: 1200 lumens
- Lumens/Watt: 70.59
- Beam Angle: 18°
ETL
Damp Location
Airtight
Title 24 (JA8)
Warm Dim LED
Specification Sheet / Technical Files
Prop 65 Warning for California Residents
This product can expose you to chemicals, which are known in the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.p65warnings.ca.gov/.
The Visual Comfort Architectural Collection, formerly known as Element by Tech Lighting, helps homeowners, interior designers, and businesses accomplish their design dreams due through an absolute commitment to innovation and high-quality lighting. These sophisticated and contemporary lighting fixtures can make the remodeling or redecorating of any interior or outdoor space simple. Lightology offers a wide selection of customizable lighting from the Visual Comfort Architectural Collection.
