Aculux 3.25 Inch 2000LM 35Deg Chicago Plenum 90CRI ID: TC420L-927-F-1-CP
Aculux 3.25 Inch 2000LM 35Deg Chicago Plenum 90CRI 0 Recessed Lighting Juno Lighting

Aculux 3.25 Inch 2000LM 35Deg Chicago Plenum 90CRI

By Juno Lighting

Aculux 3.25 Inch 2000LM 35Deg Chicago Plenum 90CRI

By Juno Lighting

CALL!

COLOR TEMP:
2700K Color temperatures close to 5000K are cool colors (bluish white), while lower color temperatures (2700–3000 K) are warmer colors (yellowish white through red).

Usually leaves warehouse in 2-4 weeks

Based upon stock availability.

CALL!

SPEC #: JUN538914 | ID: TC420L-927-F-1-CP

Aculux 3.25 Inch 2000LM 35Deg Chicago Plenum 90CRI

SPEC #: JUN538914

ID: TC420L-927-F-1-CP

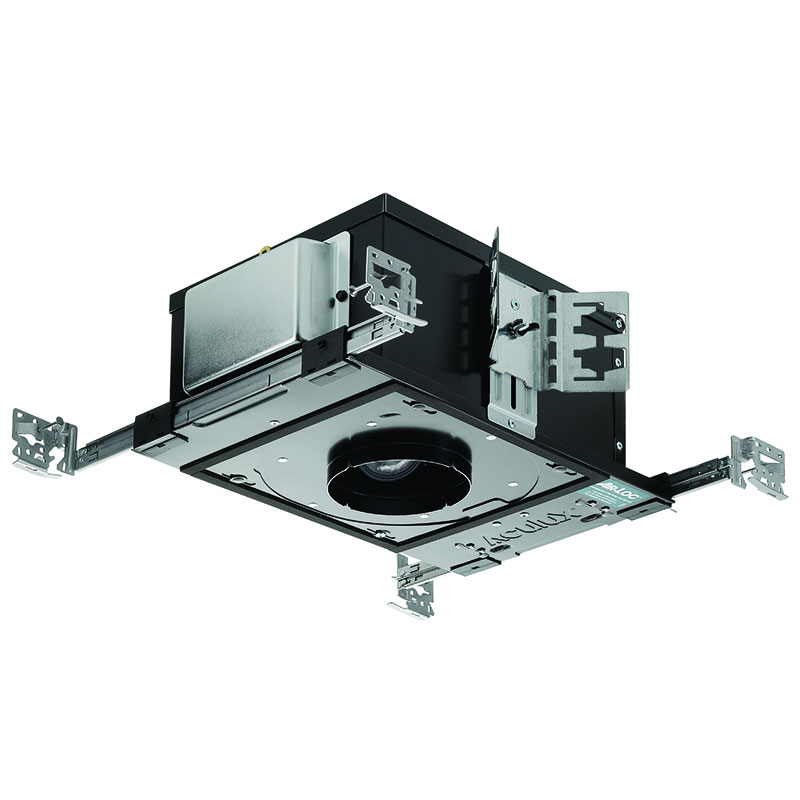

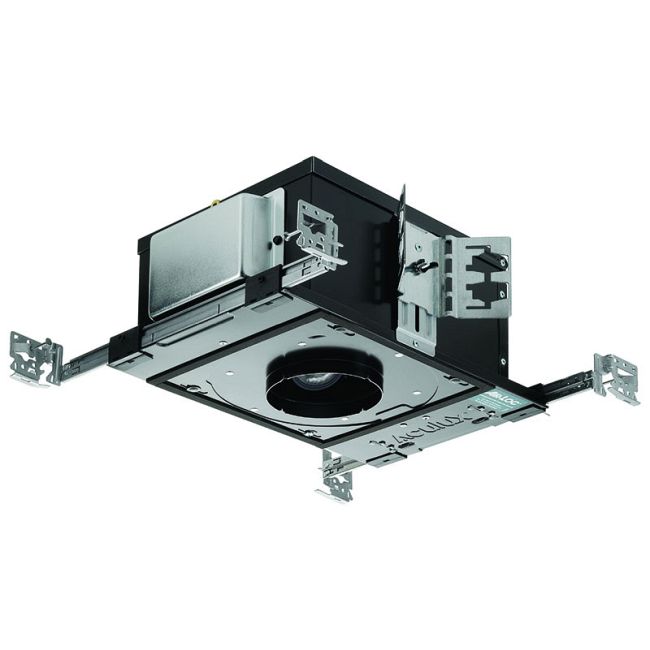

The Aculux TC420L Chicago Plenum 3.25 Inch 2000 Lumen Recessed Adjustable LED Non-IC Luminaire has 45 degree visual cutoff and features precision Acu-Aim geared hot-aiming. Non-IC luminaires must be used in non-insulated areas or where insulation is spaced at least 3 inches from housing. Available in 2700K or 3000K color temperatures, 90CRI, with modular field interchangeable optics of 12 degree Spot, 24 degree Narrow Flood, 35 degree Flood, and 50 degree Wide Flood, 120 volt. LED driver field replaceable from above or below the ceiling. 50,000 hour lamp life rated at 70 percent lumen maintenance. Optional optical accessories sold separately. Trim styles include: Trim Ring, Self-Flanged and Flush Mount reflectors, sold separately. For flush mount installations in drywall ceiling, use the FMA4 flush mount adapter, sold separately. UL and cUL listed for through branch wiring and damp locations. Wet location listed with certain trims. Energy Star qualified with select trims. 5 year warranty. 18 inch width x 13.75 inch depth x 5.44 inch height. See attached manufacturer dimmer compatibility reference for compatible dimmers. A complete fixture includes a housing and trim, sold separately.

Available Options

Finish: Black

Specifications

    • Finish: Black
    • Size: 18"W x 5.44"H x 13.75"D
    • Dimmer: Dimmable
    • Ceiling Type: Drywall with Trim
    • Housing Type: Chicago plenum approved
    • Housing Height: 6"
    • Aperture Size: 3.250"
    • Lamp Source: LED
    • Bulb:
      1 x LED/27W/120V LED
      Integrated LED module
    • Total Wattage: 27 watts
    • Lamp Color: 2700K
    • Color Rendering: 90 CRI
    • Delivered Lumens: 2000 lumens
    • Lumens/Watt: 74.07
    • Beam Angle: 35°
    • Lamp Life: 50000 hours
    • UL

      UL

    • Damp Location

      Damp Location

    • Prop 65 Warning for California Residents This product can expose you to chemicals, which are known in the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.p65warnings.ca.gov/.
      Brand Logo

      Juno Lighting Inc. is one of the largest manufacturers of recessed and track lighting including Trac-Master®, Trac 12, Flex 12, Trac 12/25, and recessed downlights. Juno was founded in 1976 with the vision of offering high quality lighting fixtures that are attractive, well-engineered and easy to install. Aculux is a comprehensive series of high-performance architectural-grade recessed luminaires. Juno designs, manufactures and markets track, recessed and linear undercabinet / casework lighting products for a broad range of retail, commercial and residential applications.
