1X3 Trimmed Flangeless IC Airtight Housing ID: EMTH13LLOI120ELVB
Add To Cart
1X3 Trimmed Flangeless IC Airtight Housing 0 Recessed Lighting Visual Comfort Architectural

1X3 Trimmed Flangeless IC Airtight Housing

By Visual Comfort Architectural

LOADING PRODUCT DATA . . .
1X3 Trimmed Flangeless IC Airtight Housing - Black

Share with friends:

1X3 Trimmed Flangeless IC Airtight Housing

By Visual Comfort Architectural

$630.00 - $690.00

Finish:
Black

Dimming:
ELV

Free Shipping Icon

Usually leaves warehouse in 6-8 days

Based upon stock availability.

$630.00

SPEC #: ELE934745 | ID: EMTH13LLOI120ELVB

  • Product Details
  • Specification Sheet / Technical Files
  • Shipping & Returns
    • Free ground shipping
    • Lightology offers free ground shipping on most retail web lighting orders over $100, shipped within the continental U.S.
    • Shipping to Alaska, Hawaii and Canada are available for an additional fee, and subject to change. Please contact us for a quote. Expedited Delivery is also available for an additional charge.
    • Please note that processing times posted on our website are in addition to shipping times.
    • Read Shipping Policy
    • Return Options
    • Product is Returnable within 60 days with no restocking fee, return shipping fee applies. Product must be new and uninstalled with all original packaging.
    • Read Return Policy
Design Services See Design Services
Help Icon Questions About This Product?
Product Rendering Icon Request Room Rendering

1X3 Trimmed Flangeless IC Airtight Housing

SPEC #: ELE934745

ID: EMTH13LLOI120ELVB

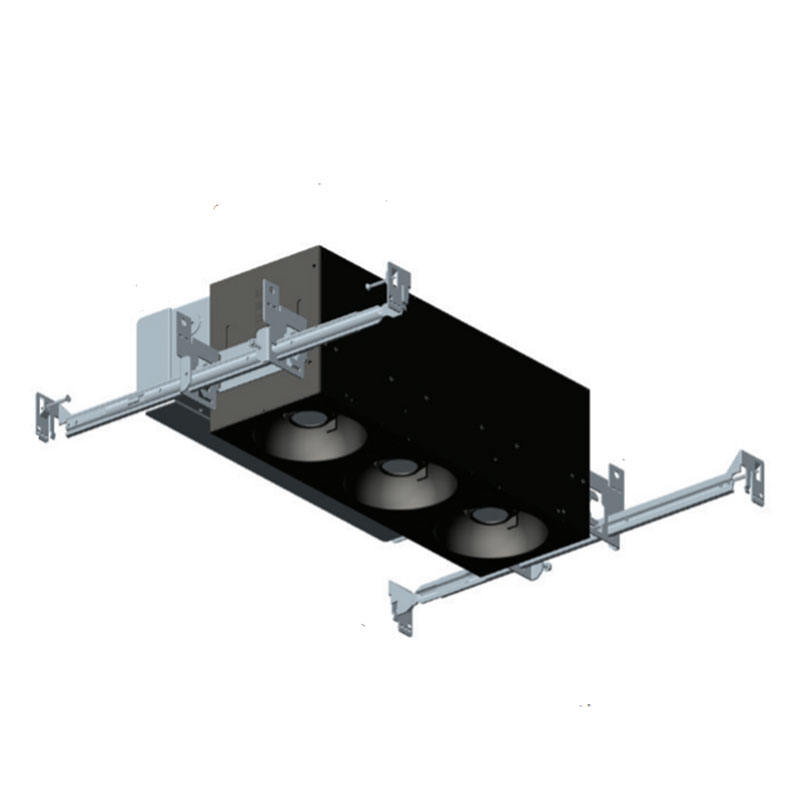

1X3 Trimmed Flangeless 3-Light Low Output (3 x 12 watt) IC Airtight Housing is constructed of heavy gauge cold rolled steel with durable Black or White powder coat finish. Features a unique patented LED spot dome module enabling tool-free adjustment and locking while maintaining center beam through the aperture. 35 degree tilt, 360 degree rotation. Low profile design for use in standard 2X6 construction. Accommodates up to 2 inch ceiling thickness. Includes integrated junction box approved for branch circuit through wiring. Housing includes individual driver for each module (ie: 3 drivers in a 1x3). Flangeless housing includes extruded and precision welded aluminum plaster plate. 5 inch x 5 inch ceiling cut-out per module. ETL listed. Suitable for damp locations. 5 year warranty. Dimming Options: Electronic low voltage (ELV) down to <1% or 0-10V down to 5%. A complete fixture includes housing, light module (must order corresponding number of modules based on housing size), and trim, sold separately.

Available Options

Finish: Black, White

Specifications

    • Finish: Black
    • Dimming: ELV
    • Size: 19.9"L x 8.7"W x 5.8"H
    • Shipping Weight: 17.00 lbs
    • Dimmer: Low Voltage Electronic
    • Materials: Steel
    • Ceiling Type: Drywall Trimless/Flush
    • Housing Type: New construction IC Airtight
    • Housing Height: 6"
    • Aperture Size: 2.800"
    • Lamp Source: LED
    • Bulb:
      3 x LED/12W/120V LED
      Integrated LED module
    • Total Wattage: 36 watts
    • Delivered Lumens: 3744 lumens
    • Lumens/Watt: 104.00
    • ETL

      ETL

    • Damp Location

      Damp Location

    • Airtight

      Airtight
