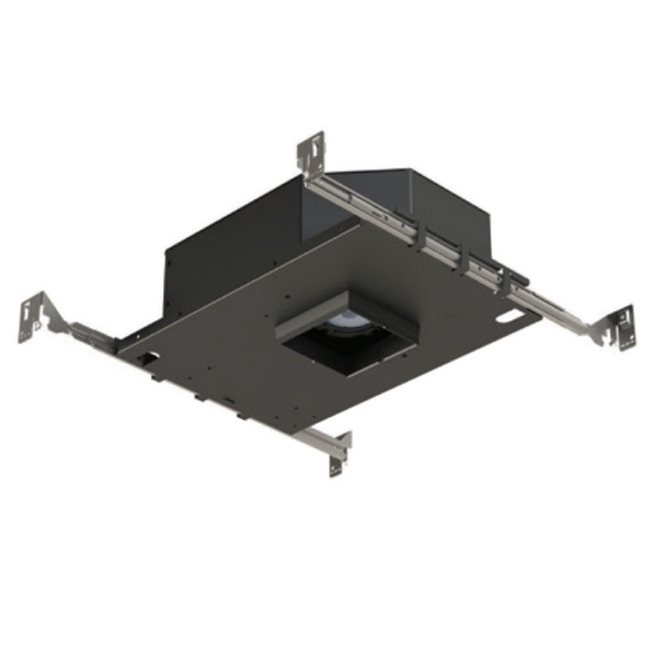

Element 3IN RD Flanged Downlight Low-Profile Housing
$330.00 - $472.00
COLOR TEMP:
2700K
Color temperatures close to 5000K are cool colors (bluish white), while lower color temperatures (2700–3000 K) are warmer colors (yellowish white through red).
WATTAGE:
17W
BEAM ANGLE:
60°
Housing:
IC Airtight Housing
- Manufacturer Stock: 19
Usually leaves warehouse in 3-5 business days
Based upon stock availability.
$390.00
+ FREE SHIPPING
SPEC #: ELE939993 | ID: E3RFF-LH9276DS
Element 3IN RD Flanged Downlight Low-Profile Housing
SPEC #: ELE939993
ID: E3RFF-LH9276DS
3 Inch Round 90CRI Flanged Fixed Downlight IC Airtight or Chicago Plenum New Construction Housing for use with round flanged trims. Small aperture LED downlight with architectural appearance.
Includes a 12 or 17 watt LED module or with 2700K, 3000K or 3500K color temperature options and Warm Dim LED (3000K-1800K). Offered with a 10, 18, 25, 40 or 60 degree beam angle. 3 7/8 inch ceiling opening. Suitable for damp locations. Suitable for wet locations with shower trim option.
Includes a 120-277V Universal driver dimmable with standard reverse-phase, forward-phase, TRIAC, and 0-10V dimming. Note: A complete fixture requires a housing and trim, sold separately.
Note: Warm Dim option is not available with 10 degree beam angle.
Available Options
Specifications
- Finish: Black Powder Coat
- Housing: IC Airtight Housing
- Size: 12"L x 7"W x 3.4"H
- Shipping Weight: 9.00 lbs
- Dimmer: Low Voltage Electronic
- Materials: Steel
- Function: Downlight
- Ceiling Type: Drywall with Trim
- Housing Type: New construction IC Airtight
- Housing Height: 3.5"
- Aperture Shape: Round
- Lamp Source: LED
-
Bulb:1 x LED/17W/120-277V LEDIntegrated LED module
- Total Wattage: 17 watts
- Lamp Color: 2700K
- Color Rendering: 90 CRI
- Delivered Lumens: 1454 lumens
- Lumens/Watt: 85.53
- Beam Angle: 60°
- Lamp Life: 50000 hours
ETL
Damp Location
Airtight
Title 24 (JA8)
Warm Dim LED
Specification Sheet / Technical Files
Prop 65 Warning for California Residents
This product can expose you to chemicals, which are known in the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.p65warnings.ca.gov/.
The Visual Comfort Architectural Collection, formerly known as Element by Tech Lighting, helps homeowners, interior designers, and businesses accomplish their design dreams due through an absolute commitment to innovation and high-quality lighting. These sophisticated and contemporary lighting fixtures can make the remodeling or redecorating of any interior or outdoor space simple. Lightology offers a wide selection of customizable lighting from the Visual Comfort Architectural Collection.
