2X4 LED Backlit Panel ID: TCP-DTF4UZD2930K
2X4 LED Backlit Panel 0 Commercial Lighting TCP

2X4 LED Backlit Panel


2X4 LED Backlit Panel



3000K Color temperatures close to 5000K are cool colors (bluish white), while lower color temperatures (2700–3000 K) are warmer colors (yellowish white through red).

Usually leaves warehouse in 2-3 weeks

Based upon stock availability.

Accessories Not Included. See accessories here.


SPEC #: TCP989327 | ID: TCP-DTF4UZD2930K

2X4 LED Backlit Panel

SPEC #: TCP989327

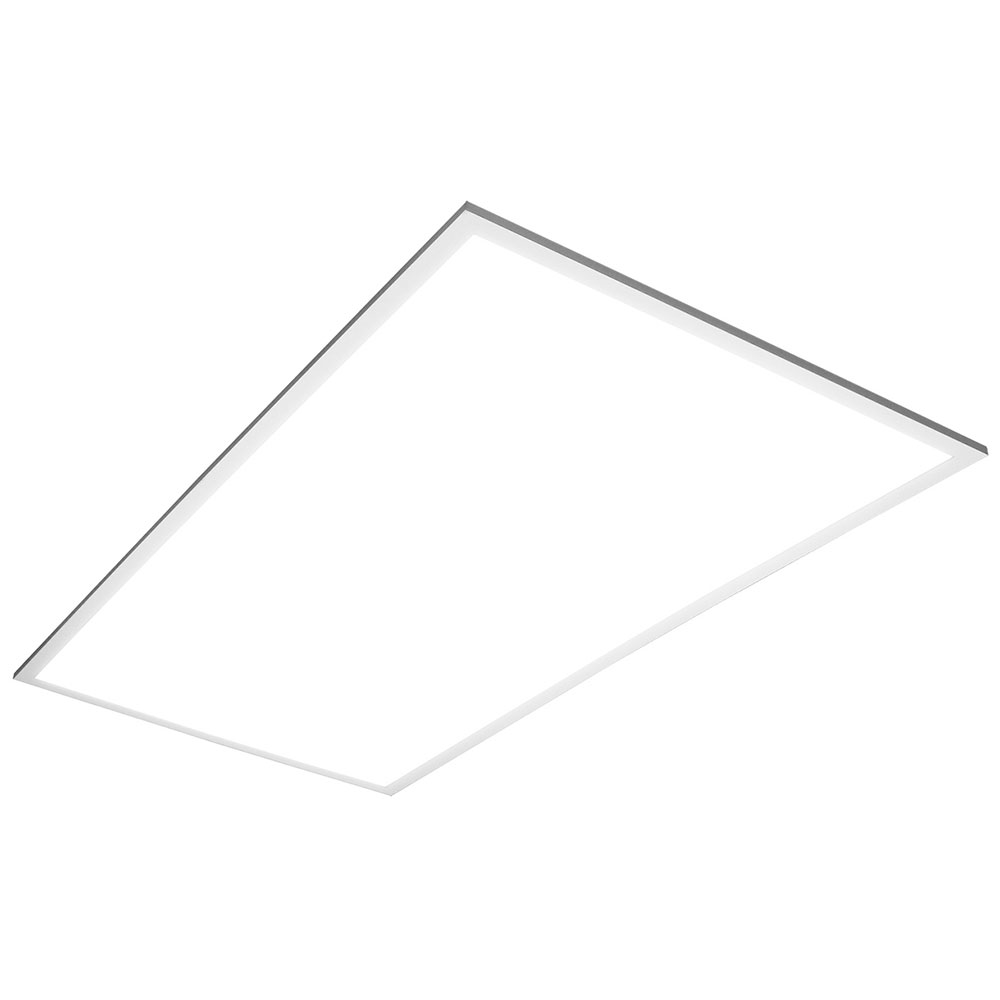

The 2X4 LED Panel features a low-profile design, back-lit technology, a 120 beam angle, and a frosted white diffuser for reduced glare and aesthetic appeal. Great alternative to traditional fluorescent troffers. Available in four color temperature options and three wattages. Includes an LED driver with integrated junction box. Designed for easy drop into T-bar grid ceilings. Optional accessories sold separately. DLC 5.0 Standard. IC rated. UL listed for damp locations.

Available Options

Finish: White

Color: Diffused Lens


    • Finish: White
    • Color: Diffused Lens
    • Size: 24"W x 1.25"H x 48"D
    • Dimmer: 0-10V
       Must supply 2 extra wires from dimmer to power supply in canopy
    • Lamp Source: LED
    • Bulb:
      1 x LED/29W/120-277V LED
      Integrated LED module
    • Total Wattage: 29 watts
    • Lamp Color: 3000K
    • Delivered Lumens: 3600 lumens
    • Lumens/Watt: 124.14
    • Lamp Life: 50000 hours
    • UL


    • DLC Approved

      DLC Approved

    • Specification Sheet / Technical Files
