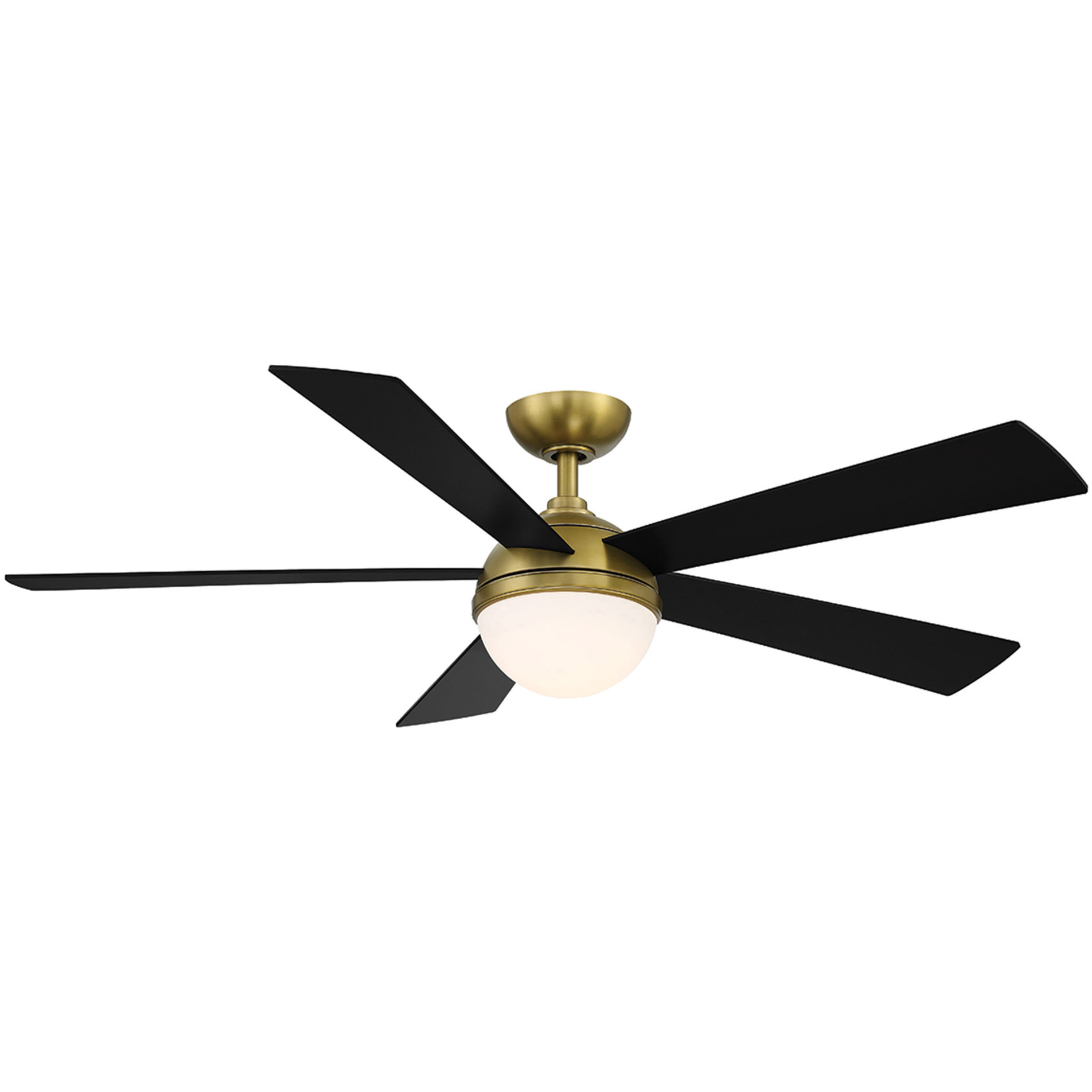

Eclipse Smart Ceiling Fan with Light MFR ID: F-053L-SB/MB
Eclipse Smart Ceiling Fan with Light 49 Fans WAC Lighting

Eclipse Smart Ceiling Fan with Light

By WAC Lighting

Eclipse Smart Ceiling Fan with Light

By WAC Lighting

$279.95 - $299.95

Soft Brass

Free Shipping IconQuick Ship Icon

Usually leaves warehouse in 1-3 business days

Based upon stock availability.

Accessories Not Included. See accessories here.


MFR ID: F-053L-SB/MB | ITEM #: WAC993242

Eclipse Smart Ceiling Fan with Light


Item #: WAC993242

Elevate your home with an intelligent fan that takes technology to the next level. The Eclipse Smart Ceiling Fan with Light can be controlled using the included Bluetooth remote control or the free Modern Forms app on your smart device. Both can set motor on/off, 6 speeds, forward and reverse, and light on/off with dimming. The app also enables Adaptive Learning, scheduling, and fan grouping.

The fan also integrates with smart home tech such as Google Assistant, Amazon Alexa/Echo, Samsung Smart Things, Ecobee, Control 4, and, for easy voice control.

Equipped with a DC motor and integrated LED module, the Eclipse is a quiet, energy-efficient solution for refreshing the air and illuminating your indoor or covered outdoor space.

Optional accessories are sold separately.

Available Options

Finish: Brushed Nickel / Matte Black, Soft Brass, Soft Brass / Matte White

Color: Matte Black, Matte White


    • Finish: Soft Brass
    • Blade Color: Matte Black
    • Size: 54"W x 14.6"H
    • Shipping Weight: 20.25 lbs
    • Product Weight: 14.11 lbs
    • Dimmer: Included
    • Materials: Glass  Aluminum  Plywood
    • Slope Ceiling Compatible: Yes
    • Lamp Source: LED
    • Bulb:
      1 x LED/20W/120V LED
      LED module included
    • Total Wattage: 20 watts
    • High CFM: 5106
    • Lamp Color: 3000K
    • Color Rendering: 90 CRI
    • Delivered Lumens: 862 lumens
    • Lumens/Watt: 43.10
    • Lamp Life: 50000 hours
    • Canopy: Round, 6.3" Dia
    • Diffuser: Opal Frosted Glass
    • Downrods: One 4.5" Included
    • Motor Size: 120 x 20 mm
    • Motor Type: DC
    • Blade Pitch: 13.5 Degrees
    • Blade Sweep: 54"
    • Blade Material: Plywood
    • Number of Blades: 5
    • Max Ceiling Slope: 30 Degrees
    • Country of Origin: China
  • UL


  • ETL


  • CSA


  • Energy Star

    Energy Star

  • Damp Location

    Damp Location

  • Title 24 (JA8)

    Title 24 (JA8)

  • Smart Home

    Smart Home

  • Title 20

    Title 20

  • DC Motor

    DC Motor

  • Specification Sheet / Technical Files
