E4 Pro 4IN SQ Flangeless Adjustable New Construction Housing
By Visual Comfort Architectural
LOADING PRODUCT DATA . . .
E4 Pro 4IN SQ Flangeless Adjustable New Construction Housing
$560.00 - $1,032.00
COLOR TEMP:
2700K
Color temperatures close to 5000K are cool colors (bluish white), while lower color temperatures (2700–3000 K) are warmer colors (yellowish white through red).
WATTAGE:
8W
BEAM ANGLE:
18°
Housing:
Chicago Plenum
Usually leaves warehouse in 2-4 weeks
Based upon stock availability.
$612.00
+ FREE SHIPPING
SPEC #: ELE1185661 | ID: E4PSL-L089271AC
E4 Pro 4IN SQ Flangeless Adjustable New Construction Housing
SPEC #: ELE1185661
ID: E4PSL-L089271AC

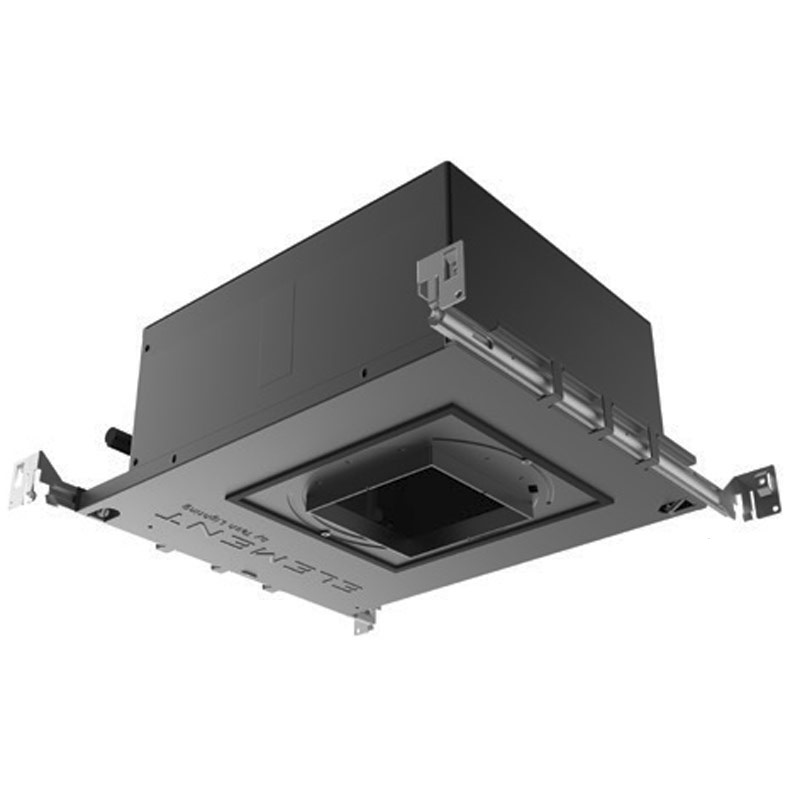

The Element 4IN Pro Series Adjustable LED Housing for square flangeless trims is a versatile fixture suitable for a variety of new construction uses. The housing is available in IC Airtight, Non-IC Airtight, Chicago Plenum, or Chicago Plenum Non-IC Airtight with an emergency backup battery. Lockable, tool free aiming allows the light to be angled up to 40 degrees and rotated 360 degrees.
Light sources are available in a variety of static white color temperatures, 3000K-1800K Warm Dim, or 2700K-5000K Tunable White, as well as 18, 25, 40, or 60 degree beam spreads, to provide the perfect lighting for any application.
Static White and Warm Dim housings include a Universal 120-277V driver, dimmable with standard reverse-phase, forward-phase, TRIAC, and 0-10V dimming. The Tunable White housing include a eldoLED 120-277V driver, dimmable with 0-10V dimmers only.
Note: A complete fixture requires a housing and flangeless trim, sold separately.
Available Options
Specifications
- Finish: Black Powder Coat
- Housing: Chicago Plenum
- Size: 11.5"W x 5.3"H x 6.2"D
- Dimmer: Low Voltage Electronic
- Materials: Steel
- Function: Adjustable Accent
- Ceiling Type: Drywall Trimless/Flush
- Housing Type: Chicago plenum approved
- Housing Height: 6"
- Aperture Shape: Square
- Lamp Source: LED
-
Bulb:1 x LED/8W/120-277V LEDIntegrated LED module
- Total Wattage: 8 watts
- Lamp Color: 2700K
- Color Rendering: 90 CRI
- Delivered Lumens: 675 lumens
- Lumens/Watt: 84.38
- Beam Angle: 18°
- Lamp Life: 50000 hours
ETL
Damp Location
Airtight
Title 24 (JA8)
Tunable White
Warm Dim LED
Specification Sheet / Technical Files
Prop 65 Warning for California Residents
This product can expose you to chemicals, which are known in the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.p65warnings.ca.gov/.
The Visual Comfort Architectural Collection, formerly known as Element by Tech Lighting, helps homeowners, interior designers, and businesses accomplish their design dreams due through an absolute commitment to innovation and high-quality lighting. These sophisticated and contemporary lighting fixtures can make the remodeling or redecorating of any interior or outdoor space simple. Lightology offers a wide selection of customizable lighting from the Visual Comfort Architectural Collection.
