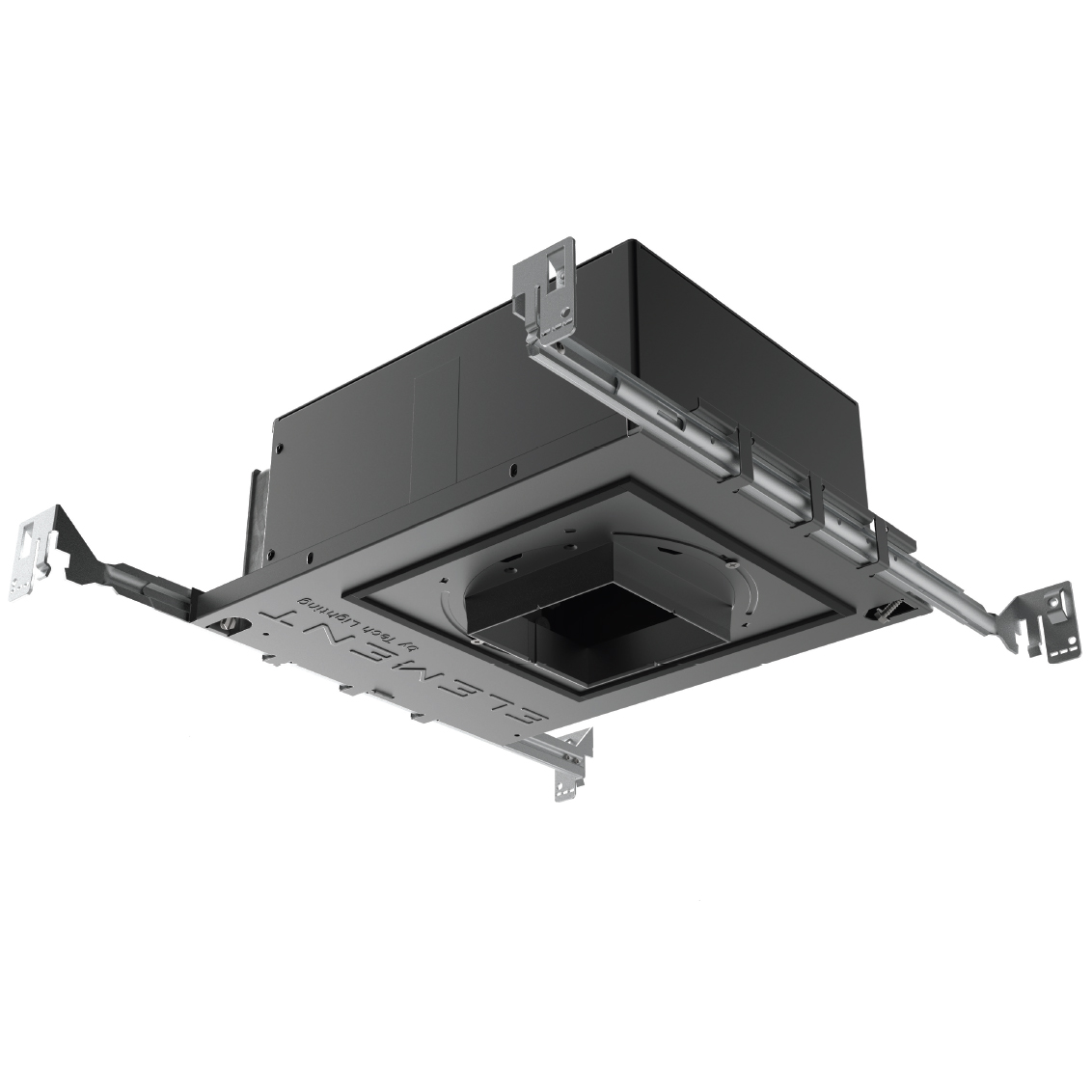

Element 3IN Square Wood Ceiling Wall Wash Housing
By Visual Comfort Architectural
Element 3IN Square Wood Ceiling Wall Wash Housing
$380.00 - $432.00
Housing:
IC Airtight Housing
- Manufacturer Stock: 69
Usually leaves warehouse in 3-5 business days
Based upon stock availability.
$380.00
+ FREE SHIPPING
SPEC #: ELE1535508 | ID: E3SWCW-LHI
Element 3IN Square Wood Ceiling Wall Wash Housing
SPEC #: ELE1535508
ID: E3SWCW-LHI
The 3 Inch Square 90CRI Flangeless Wall Wash IC Airtight or Chicago Plenum New Construction Housing for square flangeless wall wash trims for wood ceilings provides a consistent floor of illumination vertically and horizontally without hotspots, scallops, or shadows. Wood ceiling option accommodates flangeless trims only.
Square housing has 90 degree rotation increments and 45 degree alignment for collar. 3 7/8 inch ceiling cutout. Includes a 16 watt LED light source.
Includes a 120/277V Universal driver, dimmable with standard reverse-phase, forward-phase, TRIAC, and 0-10V down to 1%. NOTE: A complete fixture requires a housing and trim, sold separately.
Available Options
Specifications
- Finish: Black Powder Coat
- Housing: IC Airtight Housing
- Size: 12.5"W x 4"H x 9.5"D
- Dimmer: Low Voltage Electronic
- Materials: Steel
- Function: Wall Washer
- Ceiling Type: Wood
- Housing Type: New construction IC Airtight
- Housing Height: 4"
- Aperture Shape: Square
- Lamp Source: LED
-
Bulb:1 x LED/16W/120-277V LEDIntegrated LED module
- Total Wattage: 16 watts
- Color Rendering: 90 CRI
- Delivered Lumens: 1288 lumens
- Lumens/Watt: 80.50
ETL
Specification Sheet / Technical Files
The Visual Comfort Architectural Collection, formerly known as Element by Tech Lighting, helps homeowners, interior designers, and businesses accomplish their design dreams due through an absolute commitment to innovation and high-quality lighting. These sophisticated and contemporary lighting fixtures can make the remodeling or redecorating of any interior or outdoor space simple. Lightology offers a wide selection of customizable lighting from the Visual Comfort Architectural Collection.
