Element 2 inch RD Flanged Adjustable Chicago Plenum Housing 113 Recessed Lighting Visual Comfort Architectural

Element 2 inch RD Flanged Adjustable Chicago Plenum Housing

By Visual Comfort Architectural

LOADING PRODUCT DATA . . .
Element 2 inch RD Flanged Adjustable Chicago Plenum Housing - Black

Share with friends:

Element 2 inch RD Flanged Adjustable Chicago Plenum Housing

By Visual Comfort Architectural

$380.00 - $410.00

COLOR TEMP
2700K Color temperatures close to 5000K are cool colors (bluish white), while lower color temperatures (2700–3000 K) are warmer colors (yellowish white through red).

WATTAGE
12W

BEAM ANGLE
20°

SPEC #: ELE929462 | ID: E2RF-LO92720AC

Free Shipping Icon

Usually leaves warehouse in 6-8 weeks

Based upon stock availability.

Accessories Not Included. See accessories here.

$380.00

+ FREE SHIPPING

  • Explore this Product in 3D
  • Product Details
      • Finish: Black
      • Dimming: ELV
      • Size: 12"L x 10"W x 5.25"H
      • Shipping Weight: 9.50 lbs
      • Dimmer: Low Voltage Electronic
      • Materials: Steel
      • Ceiling Type: Drywall with Trim
      • Housing Type: Chicago plenum approved
      • Housing Height: 6"
      • Aperture Shape: Round
      • Aperture Size: 2.000"
      • Lamp Source: LED
      • Bulb:
        1 x LED/12W/120-277V LED
        Integrated LED module
      • Total Wattage: 12 watts
      • Lamp Color: 2700K
      • Color Rendering: 90 CRI
      • Delivered Lumens: 939 lumens
      • Lumens/Watt: 78.25
      • Beam Angle: 20°
      • Lamp Life: 50000 hours
          • ETLETL
          • Damp LocationDamp Location
          • Title 24 (JA8)Title 24 (JA8)
          • Warm Dim LEDWarm Dim LED
        • See full description
      • Specification Sheet / Technical Files
      • Shipping & Returns
        • Free ground shipping
        • Lightology offers free ground shipping on most retail web lighting orders over $100, shipped within the continental U.S.
        • Shipping to Alaska, Hawaii and Canada are available for an additional fee, and subject to change. Please contact us for a quote. Expedited Delivery is also available for an additional charge.
        • Please note that processing times posted on our website are in addition to shipping times.
        • Read Shipping Policy
        • Return Options
        • Product is cancelable/returnable within 60 days with no restocking fee. Once shipped, return shipping fee applies. Product must be new and uninstalled with all original packaging.
        • Read Return Policy
      Design Services Design Services
      Help Icon Questions?

      Element 2 inch RD Flanged Adjustable Chicago Plenum Housing

      SPEC #: ELE929462

      ID: E2RF-LO92720AC

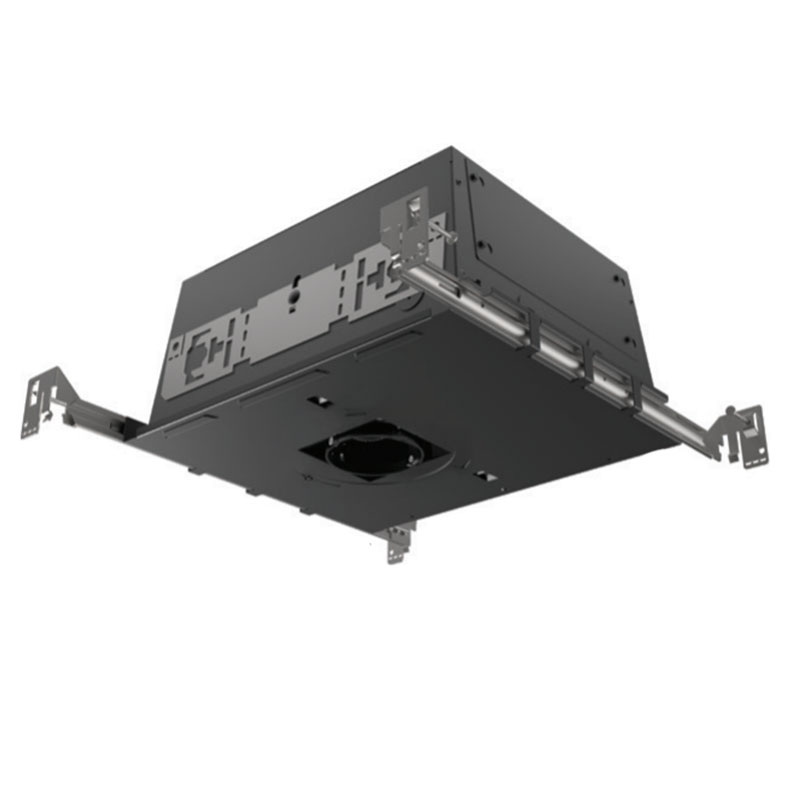

      The 2 Inch Round Flanged Adjustable Downlight Chicago Plenum Housing is constructed of heavy gauge cold rolled steel with a durable Black powder coat finish. This specification grade housing features an integral 12 watt (average 930 lumens) or 17 watt (average 1250 lumens) LED module in three color temperature options with 20, 30, 40 or 60 degree beam angle, or Warm Dim (3000K to 1800K) in low output 12 watt (average 850 lumens) and 20, 30, 40 or 60 degree beam angle.

      2.75 inch ceiling cutout, suitable for ceilings up to 2 inch thick. ETL listed. Suitable for damp locations. Title 24 compliant. 5 year warranty. 120-277V Universal driver with standard reverse-phase, forward-phase, TRIAC, and 0-10V dimming down to 1%, sold separately. A complete fixture requires a housing and trim, sold separately.

      Note: Warm Dim option available in low output only (12 Watt).
