MicroTrack 48VDC 1-Circuit Straight Suspension Track
By PureEdge Lighting
MicroTrack 48VDC 1-Circuit Straight Suspension Track
$147.00 - $242.00
Finish:
Matte White
Length:
44”
Usually leaves warehouse in 2-4 weeks
Based upon stock availability.
$147.00
+ FREE SHIPPING
SPEC #: EDG1586969 | ID: MTS48-1C-4FT-MW
MicroTrack 48VDC 1-Circuit Straight Suspension Track
SPEC #: EDG1586969
ID: MTS48-1C-4FT-MW

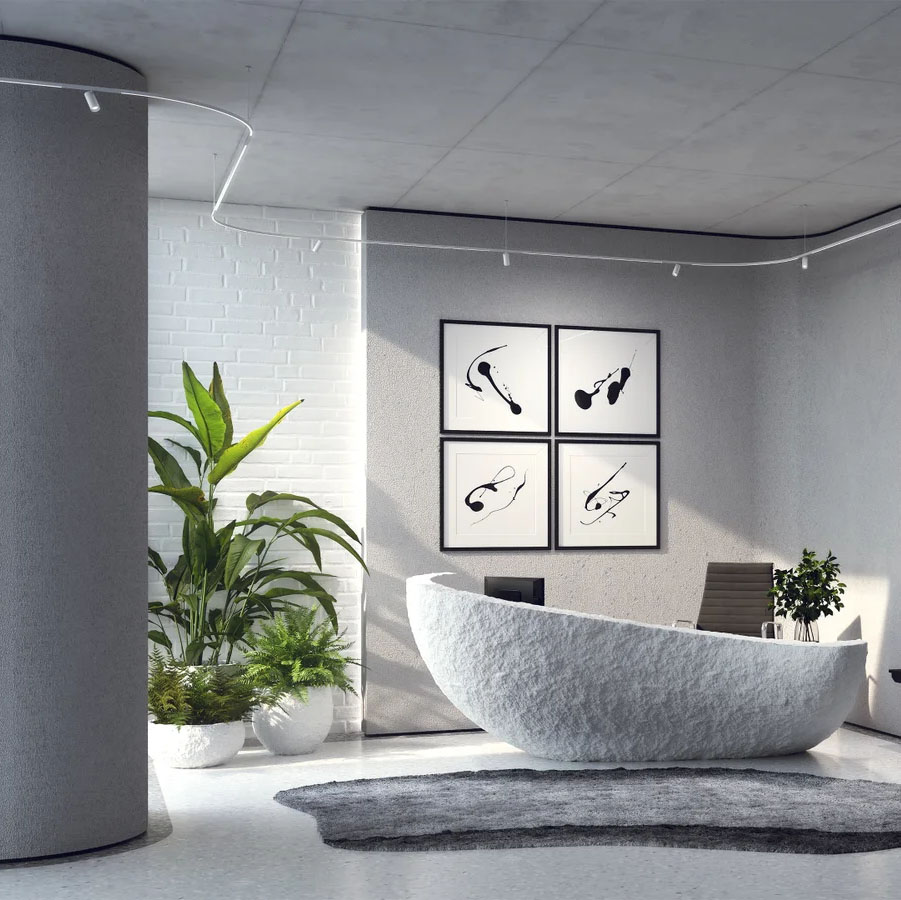

The MicroTrack Suspension is a 1-Circuit 48VDC cable suspension track system housed in a 5/8 deep x 7/16 inch wide track with a 1/4 inch slot profile with a clean, contemporary style. For a clean architectural aesthetic, a slot cover is supplied with track channels for hiding the 12 AWG copper busbars and mounting screws.
Straight channels are available in 44 inch and 92 inch lengths with the ability to be cut in the field. Curved channels are available in 12 and 20 degree radius options. Track heads easily attach to the track with one hand (no screwdriver necessary).
Channels include 12 foot suspension cables, joiner connectors, end caps, straight connectors and Black or Matte White opaque plastic slot covers to conceal the 12AWG copper busbars.
Offered with an end or center power feed. Use up to two 96 watt remote power supplies on the same line voltage circuit. A 48VDC power supply and power feed are required and sold separately. Track components and track heads are sold separately.
Available Options
Specifications
- Finish: Matte White
- Size: 44"L x 0.438"W x 0.625"H
-
Bulb:LED/48V LEDBulb not included
