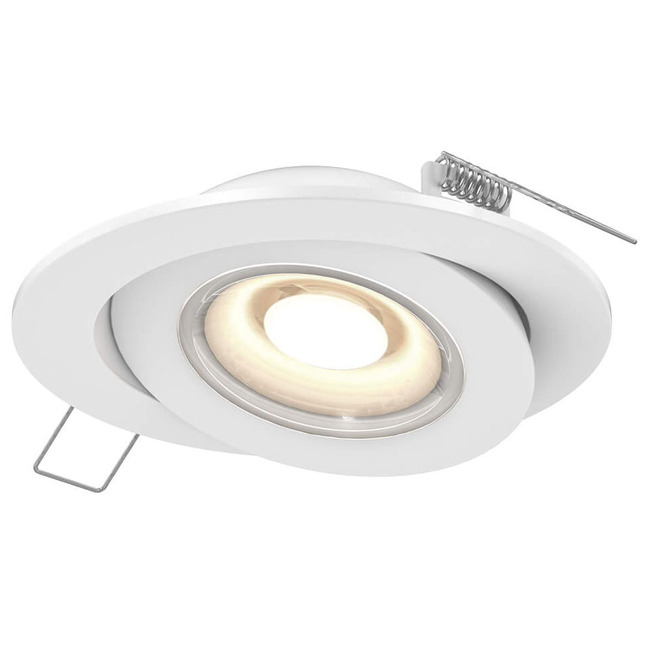

Pivot 4IN Round 120-277V Color-Select Flat Gimbal Downlight
By DALS Lighting
Pivot 4IN Round 120-277V Color-Select Flat Gimbal Downlight
$48.93
Usually leaves warehouse in 2-4 weeks
Based upon stock availability.
$48.93
SPEC #: DLS1231645 | ID: FGM4-CC-V-WH
Pivot 4IN Round 120-277V Color-Select Flat Gimbal Downlight
SPEC #: DLS1231645
ID: FGM4-CC-V-WH
The Pivot Round Color Select Flat Gimbal IC Airtight Recessed Trim and Housing offers powerful lumen output and the ability to direct light with a 360 degree rotation and 90 degree tilt. Features switch selectable color temperature: 2700K/3000K/3500K/4000K/5000K with a switch located on driver. Each fixture includes a junction box with an integrated driver. Can be daisy chained. Optional accessories sold separately. 120-277V, dimmable with 0-10V.
Available Options
Specifications
- Finish: White
- Size: 4.81"W x 1.31"H
-
Dimmer:
0-10VMust supply 2 extra wires from dimmer to power supply in canopy
- Materials: Acrylic, Cast Aluminum
- Function: Adjustable Accent
- Ceiling Type: Drywall with Trim
- Housing Type: Remodel IC Airtight
- Housing Height: 3"
- Aperture Shape: Round
- Lamp Source: LED
-
Bulb:1 x LED/9W/120-277V LEDIntegrated LED module
- Total Wattage: 9 watts
- Lamp Color: CCT Select
- Color Rendering: 90 CRI
- Delivered Lumens: 700 lumens
- Lumens/Watt: 77.78
- Beam Angle: 40°
- Lamp Life: 50000 hours
- Ceiling Cutout: 4.25 inch
- Switch-Selectable Color Temperature: 2700K/3000K/3500K/4000K/5000K
- Country of Origin: China

ETL

Wet location

Energy Star

Airtight

Title 24 (JA8)
Specification Sheet / Technical Files
