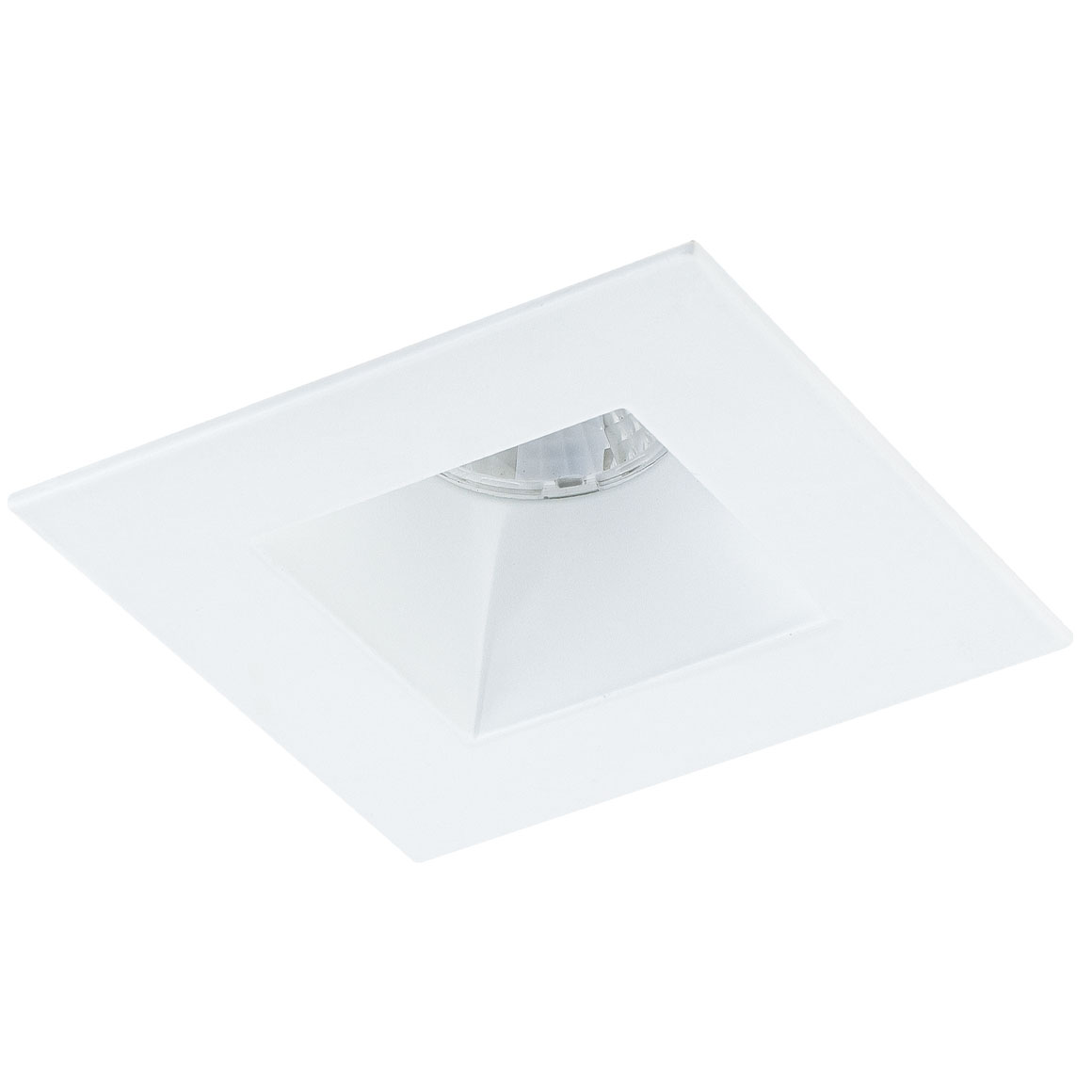

Ocularc 2IN Square Color-Select Downlight Trim with Housing

Name: Ocularc 2IN Square Color-Select Downlight Trim with Housing
Brand: WAC Lighting
SKU: WAC1425047
Price: 208.76 USD
Availability: InStock

By WAC Lighting

LOADING PRODUCT DATA . . .

Ocularc 2IN Square Color-Select Downlight Trim with Housing - White

Ocularc 2IN Square Color-Select Downlight Trim with Housing - Brushed Nickel

Ocularc 2IN Square Color-Select Downlight Trim with Housing

By WAC Lighting

(0)

Q&A (0)

$208.76

Finish:
White

BEAM ANGLE:
18°

Usually leaves warehouse in 2-3 weeks

Based upon stock availability.

Save for a limited time

ON SALE

$208.76

Was $231.95 | You Save $23.19 (10%)

+ FREE SHIPPING

SPEC #: WAC1425047 | ID: R2BSD-SCS-WT

Product Details
- - Finish: White
  - Size: 3.5"W x 3.88"H x 3.5"D
  - Dimmer: Low Voltage Electronic
  - Materials: Glass, Die Cast Aluminum
  - Function: Downlight
  - Ceiling Type: Drywall with Trim
  - Housing Type: New construction IC Airtight
  - Housing Height: 4"
  - Aperture Shape: Square
  - Lamp Source: LED
  - Bulb:
    1 x LED/12W/120-277V LED
    Integrated LED module
  - Total Wattage: 12 watts
  - Lamp Color: CCT Select
  - Color Rendering: 90 CRI
  - Delivered Lumens: 935 lumens
  - Lumens/Watt: 77.92
  - Beam Angle: 18°
  - Lamp Life: 50000 hours
- - ETL
  - Wet location
  - Energy Star
  - Airtight
  - Title 24 (JA8)
- See full description
Specification Sheet / Technical Files
Shipping & Returns
- Free ground shipping
- Lightology offers free ground shipping on most retail web lighting orders over $100, shipped within the continental U.S.
- Shipping to Alaska, Hawaii and Canada are available for an additional fee, and subject to change. Please contact us for a quote. Expedited Delivery is also available for an additional charge.
- Please note that processing times posted on our website are in addition to shipping times.
- Read Shipping Policy
- Return Options
- Product is cancelable/returnable within 60 days with no restocking fee. Once shipped, return shipping fee applies. Product must be new and uninstalled with all original packaging.
- Read Return Policy

See Design Services

Questions About This Product?

Request Room Rendering

Ocularc 2IN Square Color-Select Downlight Trim with Housing

SPEC #: WAC1425047

ID: R2BSD-SCS-WT

The Ocularc 2 Inch Square Downlight includes a trim and shallow IC Airtight New Construction Housing with driver designed to fit in tight plenum spaces. Compatible with ceiling thickness of 0.5-1.5 inches. Cutout: 3 1/16 inch. IC Rated: suitable for direct contact with insulation.

Ocularc includes a color-select switch which allows user to field select between 2700K, 3000K, 3500K, 4000K and 5000K color temperature options. Includes TIR lens. TRIAC and ELV dimming at 120V. 0-10V dimming at 277V.

Note: Sold as new construction, but may be reconfigured in the field for remodel.

Available Options

Finish: Black, Brushed Nickel, White, White / Haze Reflector

Specifications

- Finish: White
- Size: 3.5"W x 3.88"H x 3.5"D
- Dimmer: Low Voltage Electronic
- Materials: Glass, Die Cast Aluminum
- Function: Downlight
- Ceiling Type: Drywall with Trim
- Housing Type: New construction IC Airtight
- Housing Height: 4"
- Aperture Shape: Square
- Lamp Source: LED
- Bulb:
  1 x LED/12W/120-277V LED
  Integrated LED module
- Total Wattage: 12 watts
- Lamp Color: CCT Select
- Color Rendering: 90 CRI
- Delivered Lumens: 935 lumens
- Lumens/Watt: 77.92
- Beam Angle: 18°
- Lamp Life: 50000 hours

ETL

Wet location

Energy Star

Airtight

Title 24 (JA8)
