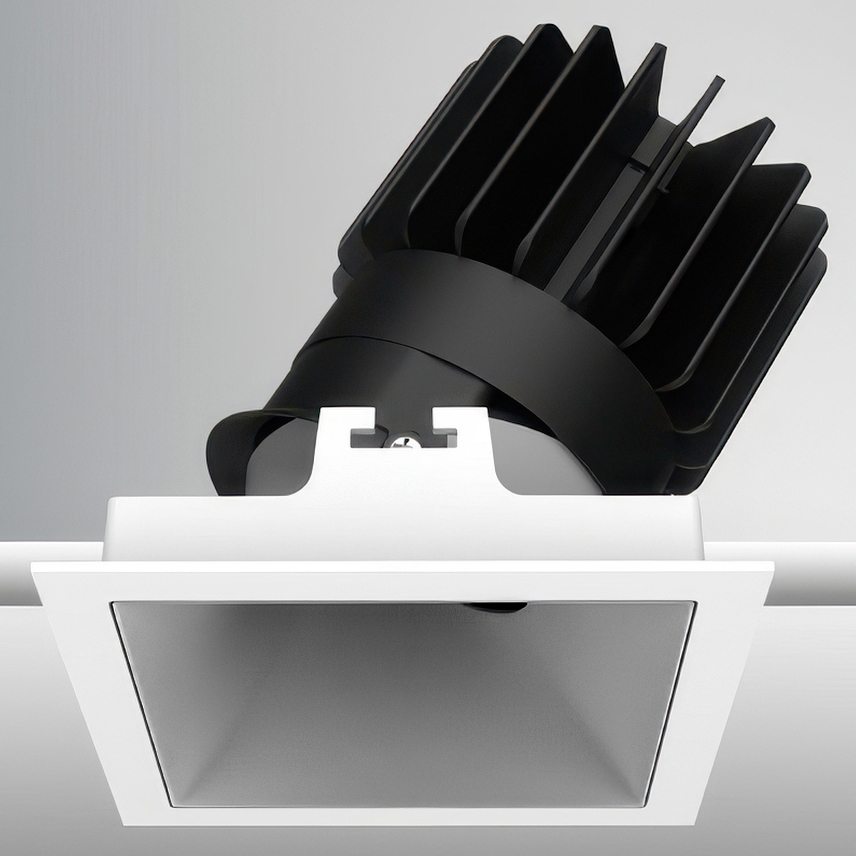

Luca 3.5 inch Square DALI/DMX RGBTW 48V Downlight with Trim
By Gregory Kay, for PureEdge Lighting
LOADING PRODUCT DATA . . .
Luca 3.5 inch Square DALI/DMX RGBTW 48V Downlight with Trim
By Gregory Kay, For PureEdge Lighting
$566.00 - $606.00
Finish:
White
Reflector/Baffle Color:
Haze Satin Silver
WATTAGE:
14W
BEAM ANGLE:
25°
Option:
Adjustable
Usually leaves warehouse in 2-3 weeks
Based upon stock availability.
$583.00
+ FREE SHIPPING
SPEC #: EDG1480823 | ID: L35L-14W-SP-DMX-TC-SAHW
Luca 3.5 inch Square DALI/DMX RGBTW 48V Downlight with Trim
SPEC #: EDG1480823
ID: L35L-14W-SP-DMX-TC-SAHW
Designed by Gregory KayRead Bio
Experience the radiance of Luca 3.5, a cutting-edge downlight that embodies its Latin namesake as the Bringer of Light'. Luca is a testament to the latest advancements in cutting-edge lighting technology, delivering high performance solutions designed to elevate hospitality, retail, commercial, and discerning residential spaces.
The Luca 3.5 DMX/DALI TruColor technology uses five channels of tunable LEDs composed of RGBTW (Red, Blue, Green and Tunable White) 1500K-6500K color temperature. Unlock the full potential of Luca's extensive color palette, superior output, energy efficiency, smart control, and exceptional color consistency. The compact form of the Luca 3.5 allows for installation in new construction and remodel applications with limited clearance.
With the PureEdge Unity 2 DMX Gateway Luca 3.5 seamlessly integrates into all major Home Lighting Systems.
Luca 3.5 DMX/DALI is a Remodel Non-IC housing with adjustable or fixed trim complete with a DMX decoder with 48VDC input Class 2 wiring. Required remote power supply sold separately. Can be used for new construction applications with new construction mounting frame or new construction housing sold separately.
Note: Fixed Downlight Trim is wet listed. Adjustable Downlight Trim is damp listed.
Available Options
Specifications
- Finish: White
- Reflector/Baffle Color: Haze Satin Silver
- Option: Adjustable
- Size: 4.4"W x 5.31"H
- Shipping Weight: 1.60 lbs
- Materials: Die Cast Aluminum
- Function: Adjustable Accent
- Ceiling Type: Drywall with Trim
- Housing Type: Remodel NON IC
- Housing Height: 6"
- Aperture Shape: Square
- Aperture Size: 3.500"
- Lamp Source: LED
-
Bulb:1 x LED/14W/48V LEDIntegrated LED module
- Total Wattage: 14 watts
- Lamp Color: RGB+White
- Color Rendering: 95 CRI
- Delivered Lumens: 700 lumens
- Lumens/Watt: 50.00
- Beam Angle: 25°
- Lamp Life: 50000 hours
ETL
Wet location
Damp Location
Title 24 (JA8)
