TruCirque .5A Tunable White 2K6K Plaster-In LED System
By Gregory Kay, for PureEdge Lighting
LOADING PRODUCT DATA . . .
TruCirque .5A Tunable White 2K6K Plaster-In LED System
By Gregory Kay, For PureEdge Lighting
$1,325.00 - $5,451.00
Length:
24”
WATTAGE:
2W
Usually leaves warehouse in 2-3 weeks
Based upon stock availability.
$1,325.00
+ FREE SHIPPING
SPEC #: EDG1543505 | ID: TCIR.5-2W-2FT-ST2K6K
TruCirque .5A Tunable White 2K6K Plaster-In LED System
SPEC #: EDG1543505
ID: TCIR.5-2W-2FT-ST2K6K
Designed by Gregory KayRead Bio

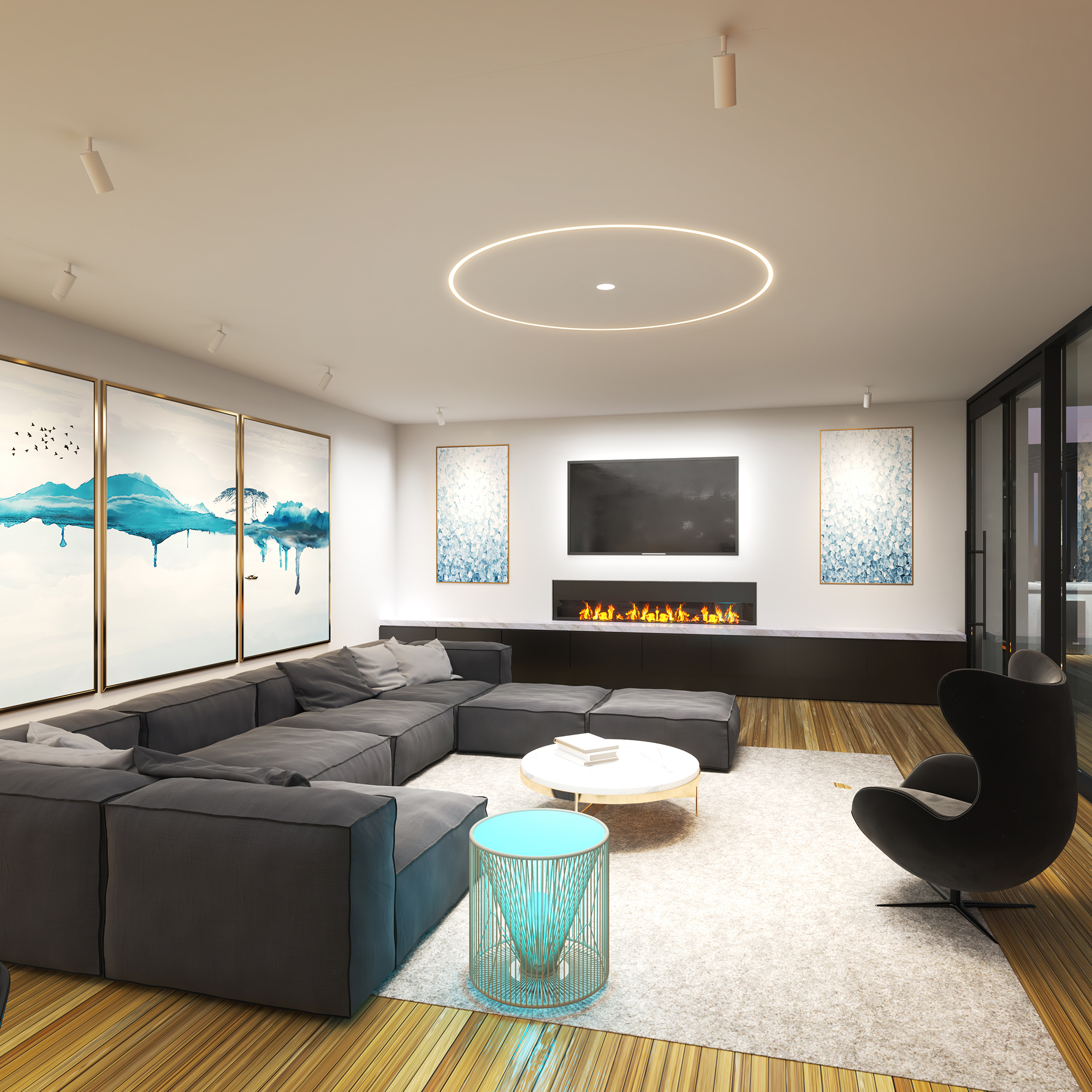

The TruCirque .5A is an innovative and highly efficient that system blends seamlessly into the drywall, becoming part of the architecture and redefining the relationship between lighting and interior design. TruCirque brings the same ease of installation as other PureEdge 5/8 inch drywall families to a pristine circle of illumination.
The slim extrusions are offered in various diameters from 2 to 18 feet, supplied with a diffused, flexible lens. TruCirque provides smooth, glare free illumination using high color rendering LEDs (CRI) offered in 2 watt (2.5 watts) 5 watt (4.4 watts) and 7 watt (7.5 watts) per foot options and Tunable White 2K6K (2000K-6500K) color temperature.
Tunable White grants independent control and adjustment of color temperature and intensity from 2000K (Sunset) through 6500K (Daylight White). Tunable White lighting visually, biologically and emotionally contributes to human interaction with the physical world. Human centric lighting (HCL) builds on this technology bringing the dynamics of natural daylight indoors, and delivering a positive effect on human health, wellbeing and performance.
Included Components: TruCirque .5 Inch Channel, Power Channel Connector(s) with Junction Box, Channel Joiners, Mounting Straps, Drywall Screws, LED Strip, and Flexible Diffused Lens.
Note: A DMX color changing power supply or 2XK 0-10V 2-Channel power supply is required and sold separately. 0-10V requires two dimmers --one for intensity and one for color temperature. DMX power supply must be used with PureEdge controller (CDMX1-2XK).
Maximum Diameter Before Re-Feeding:
2WDC, 2.5 watts per foot -- 12 Feet
5WDC, 4.4 watts per foot -- 6 Feet
7WDC, 7.5 watts per foot -- 3 Feet
Available Options
Specifications
- Finish: White
- Size: 24"L x 0.5"W x 0.63"H
- Lamp Source: LED
-
Bulb:2 x LED/2W/24V LEDIntegrated LED module
- Total Wattage: 4 watts
- Lamp Color: 2000K-6000K Tunable White
- Color Rendering: 92 CRI
- Delivered Lumens: 164 lumens
- Lumens/Watt: 41.00
- Lamp Life: 50000 hours
ETL
Damp Location
Specification Sheet / Technical Files
Prop 65 Warning for California Residents
This product can expose you to chemicals, which are known in the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.p65warnings.ca.gov/.
About Gregory Kay
Gregory Kay is a renowned designer with a legacy spanning over 30 years in the industry. He continuously pushes the boundaries of traditional lighting design, integrating the most advanced technology, and allowing endless creativity and personalization. With such architectural lighting innovations as TruLine and TruCurve - recessed lighting only 5/8 thick - a designer no longer must worry about where the studs are. You can let the drywall be your canvas.
Setting the mood and evoking emotions through his technical mastery of lighting, Kay's designs go beyond the ordinary - they are a fusion of artistry and innovation within architecture. With an impressive collection of over 30 design awards and 13 patents earned in the last decade, Gregory Kay stands as a true luminary in the industry.
Kay's lighting solutions are not just fixtures, they are experiences. Each creation is meticulously engineered not only for its visual appeal, but also for its ease of installation, ensuring that the desired atmosphere can be effortlessly achieved throughout the entire space. His work speaks volumes, creating immersive environments that leave a lasting impression and actualize the desired emotion.
In a world where design meets technology, Gregory Kay continues to be a driving force, pushing the boundaries of what's possible. His creations are not just illuminating spaces, they are illuminating lives, leaving an indelible mark on the world of design.
Shop This Designer
A merge of Pure Lighting (recessed architectural lighting systems) and Edge Lighting (minimalist suspensions and wall fixtures), Chicago-based PureEdge Lighting offers a robust catalog of innovative lighting systems, scalable to any size space. Award-winning product collections like TruLine and Lazer Line create minimalist lines of light both in and out of the drywall, serving as tools that allow architects and designers to unleash their creativity ... let the drywall be your canvas! TruTrack recessed track lighting takes an existing system, and updates it for the modern era in clean, seamless fashion. Another award-winning, innovative light system - Pipeline Modular is the perfect solution for today's urban lofts and open offices, consisting of rounded bars of light that can be pieced together to weave within the network of ducts and pipes found in today's open ceilings. Other collections - like Tie Stix, Glide and Pix Sticks - deliver linear suspensions perfectly suited for today's modern kitchens and lobbies. In the bathroom, vanity lights and LED lit mirrors bring future technology like Warm Dim and Tunable White to an environment that demands personalization and mood-setting functionality. With so many options, it's no wonder PureEdge Lighting has become the go-to name for high-end residences, offices, retail and more. From projects with Delta and Lyft to Chicago's-own Merchandise Mart, PureEdge Lighting knows a thing or two about illuminating today's best - and brightest - environments.
