Amigo 3IN SQ Trimless Downlight / Remodel Housing MFR ID: 28717-30-024
543227 Amigo 3IN SQ Trimless Downlight / Remodel Housing 0 Eurofase
LOADING PRODUCT DATA . . .

Share this with your friends:

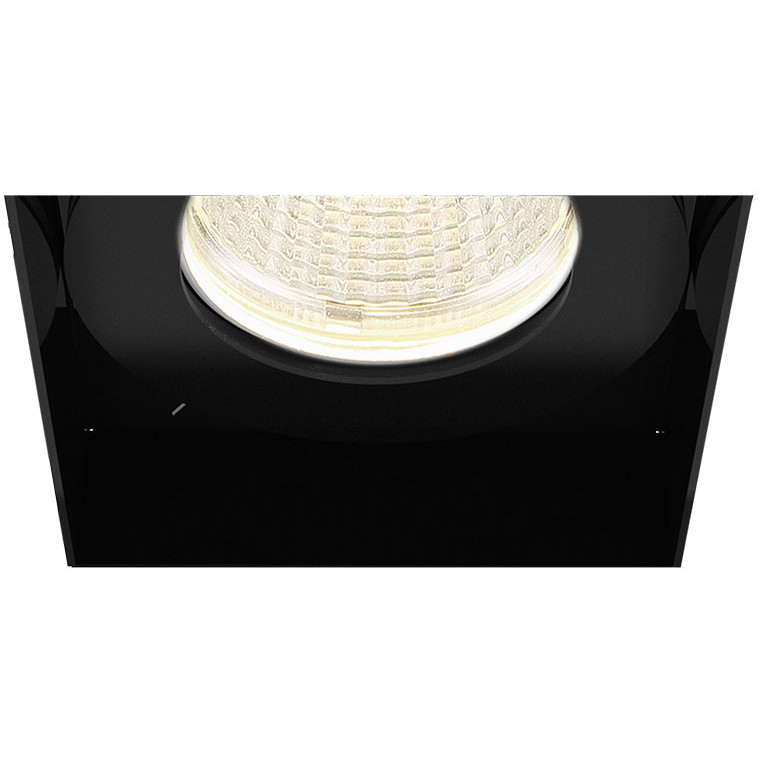

Amigo 3IN SQ Trimless Downlight / Remodel Housing

By Eurofase

Trim Finish:
Black

Color Temp:
3000K

(Usually leaves warehouse in 3-5 business days)
MFR ID: 28717-30-024
ITEM #: EUF543227
List Price: $272.50
$218.00

The 28717 3 Inch Square Aperture Non-IC Remodel Housing with Downlight Trimless is constructed of 18 gauge powder coated steel. Non-IC designation requires that insulation be kept a minimum of 3 inches away from housing. Includes steel mesh plate with perforated perimeter to allow mud to bond to mounting surface leaving a seamless finish in the ceiling. Features 1-light flangeless downlight trim in White or Black. Includes 15 watt, 120 volt LED module with 40 degree beam angle in 3000K or 3500K color temperature, 80+CRI, 1290 lumens. 50,000 hour average lamp life. Class 2 dimmable constant current driver included. Driver box mates to fixture by 12 inch flexible BX cable. Thermally protected. Input voltage: 120 volt. Dimmable with a TRIAC (low voltage electronic) dimmer, sold separately. ETL listed. Fixture: 2.75 inch square x 5.75 inch height. Cutout: 3 inch square. Can be converted to a Non-IC new construction housing with 30536 mounting plate, IC new construction with 30532-014 housing, or IC Airtight new construction with 30532-023 housing, sold separately.


  • Trim Finish: Black
  • Size: 2.75"W x 5.75"H x 2.75"D
  • Dimmer: Low Voltage Electronic
  • Labels: ETL
  • Function: Downlight
  • Ceiling Type: Drywall Trimless/Flush
  • Housing Type: Remodel NON IC
  • Housing Height: 6"
  • Aperture Shape: Square
  • Aperture Size: 3.000"
  • Lamp Source: LED
  • Bulb:

    1 x LED/15W/120V LED
    LED module included

  • Total Wattage: 15 watts
  • Lamp Color: 3000K
  • Color Rendering: 80 CRI
  • Luminous Flux: 1290 lumens
  • Lumens/Watt: 86.00
  • Beam Angle: 40°
  • Lamp Life: 50000 hours
About Eurofase
Proudly entering its third decade of existence, Eurofase continues its evolution as a provider of artful illumination. Eurofase is born of a company culture that passionately seeks to improve the lives of its customer with innovative design, lasting quality and genuine service. Eurofase carefully considers the interaction of a lighting fixture with those who enjoy it. Beyond the style or finish of a fixture is the ambiance created for the space within which it resides. Always with the goal of higher achievement top of mind, each product is inspired by human needs. With many pieces still being crafted by human hands, the authenticity of this company philosophy is carried through to the finished product. Eurofase is credited with introducing several new design and technology trends to the North American marketplace. Additionally, the company’s flair for contemporary design continually promotes the use of emerging lamp technologies, such as LED, halogen and compact fluorescent. See more from Eurofase

// Options //

1

Amigo 3IN SQ Trimless Downlight / Remodel Housing

28717-30-010

  • Finish:
    White
  • Color:
    N/A
  • Width 2.8”
  • Lamp:  LED
  • Stock:  59

List Price:   $272.50

Price:   $218.00

Add To cart

2

Amigo 3IN SQ Trimless Downlight / Remodel Housing

28717-30-024

  • Finish:
    Black
  • Color:
    N/A
  • Width 2.8”
  • Lamp:  LED
  • Stock:  13

List Price:   $272.50

Price:   $218.00

Add To cart

3

Amigo 3IN SQ Trimless Downlight / Remodel Housing

28717-35-024

  • Finish:
    Black
  • Color:
    N/A
  • Width 2.8”
  • Lamp:  LED
  • Stock:  0

List Price:   $272.50

Price:   $218.00

Add To cart

4

Amigo 3IN SQ Trimless Downlight / Remodel Housing

28717-35-010

  • Finish:
    White
  • Color:
    N/A
  • Width 2.8”
  • Lamp:  LED
  • Stock:  0

List Price:   $272.50

Price:   $218.00

Add To cart
