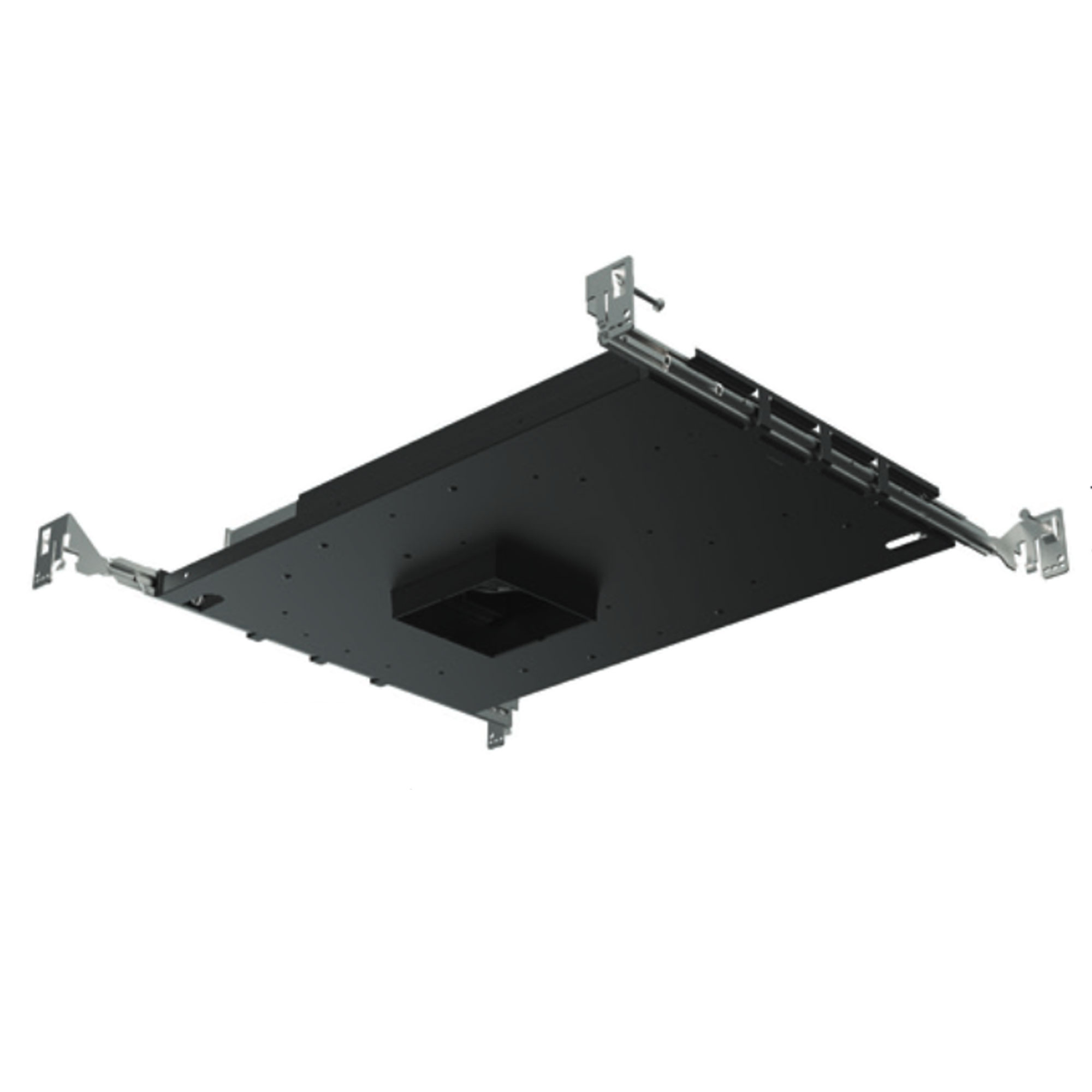

Element 3IN RD Flangeless Downlight Ultra Shallow Housing

Name: Element 3IN RD Flangeless Downlight Ultra Shallow Housing
Brand: Visual Comfort Architectural
SKU: ELE614163
Price: 490.00 USD
Availability: InStock

By Visual Comfort Architectural

LOADING PRODUCT DATA . . .

Element 3IN RD Flangeless Downlight Ultra Shallow Housing - Black

Element 3IN RD Flangeless Downlight Ultra Shallow Housing

By Visual Comfort Architectural

(0)

Q&A (0)

$490.00 - $550.00

COLOR TEMP:
2700K Color temperatures close to 5000K are cool colors (bluish white), while lower color temperatures (2700–3000 K) are warmer colors (yellowish white through red).

BEAM ANGLE:
18°

Housing:
IC Airtight Housing

Usually leaves warehouse in 3-5 business days

Based upon stock availability.

Accessories Not Included. See accessories here.

$490.00

+ FREE SHIPPING

SPEC #: ELE614163 | ID: E3RLF-LH9271DUS

Product Details
- - Finish: Black
  - Housing: IC Airtight Housing
  - Size: 17.5"W x 2"H x 11.5"D
  - Dimmer: Low Voltage Electronic
  - Materials: Steel
  - Function: Downlight
  - Ceiling Type: Drywall Trimless/Flush
  - Housing Type: New construction IC Airtight
  - Housing Height: 2"
  - Aperture Shape: Round
  - Lamp Source: LED
  - Bulb:
    1 x LED/17W/120-277V LED
    Integrated LED module
  - Total Wattage: 17 watts
  - Lamp Color: 2700K
  - Color Rendering: 90 CRI
  - Delivered Lumens: 1450 lumens
  - Lumens/Watt: 85.29
  - Beam Angle: 18°
  - Lamp Life: 50000 hours
- - ETL
  - Damp Location
  - Title 24 (JA8)
  - Warm Dim LED
- See full description
Specification Sheet / Technical Files
Shipping & Returns
- Free ground shipping
- Lightology offers free ground shipping on most retail web lighting orders over $100, shipped within the continental U.S.
- Shipping to Alaska, Hawaii and Canada are available for an additional fee, and subject to change. Please contact us for a quote. Expedited Delivery is also available for an additional charge.
- Please note that processing times posted on our website are in addition to shipping times.
- Read Shipping Policy
- Return Options
- Product is cancelable/returnable within 60 days with no restocking fee. Once shipped, return shipping fee applies. Product must be new and uninstalled with all original packaging.
- Read Return Policy

See Design Services

Questions About This Product?

Request Room Rendering

Element 3IN RD Flangeless Downlight Ultra Shallow Housing

SPEC #: ELE614163

ID: E3RLF-LH9271DUS

3 Inch Round 90CRI Flangeless Fixed Ultra Shallow Downlight IC AirTight New Construction Housing for use with 3 inch round flangeless trims. Supplied with LED module in three color temperature options and Warm Dim (3000K-1800K). Available with 18, 25 or 40 degree beam angle options. 3 7/8 inch ceiling cutout. Suitable for wet locations with shower trim.

Includes a 120-277V Universal driver dimmable with standard reverse-phase, forward-phase, TRIAC, and 0-10V dimming. Note: A complete fixture requires a housing and flangeless trim, sold separately.

Available Options

Finish: Black

Specifications

- Finish: Black
- Housing: IC Airtight Housing
- Size: 17.5"W x 2"H x 11.5"D
- Dimmer: Low Voltage Electronic
- Materials: Steel
- Function: Downlight
- Ceiling Type: Drywall Trimless/Flush
- Housing Type: New construction IC Airtight
- Housing Height: 2"
- Aperture Shape: Round
- Lamp Source: LED
- Bulb:
  1 x LED/17W/120-277V LED
  Integrated LED module
- Total Wattage: 17 watts
- Lamp Color: 2700K
- Color Rendering: 90 CRI
- Delivered Lumens: 1450 lumens
- Lumens/Watt: 85.29
- Beam Angle: 18°
- Lamp Life: 50000 hours

ETL

Damp Location

Title 24 (JA8)

Warm Dim LED

Specification Sheet / Technical Files

Prop 65 Warning for California Residents
