Truline Trim 1.6A Trucolor RGBTW 24VDC Recessed LED System

By Gregory Kay, for PureEdge Lighting

Truline Trim 1.6A Trucolor RGBTW 24VDC Recessed LED System

By Gregory Kay, For PureEdge Lighting

$1,053.90 - $1,707.30

Free Shipping Icon

Usually leaves warehouse in 2-3 weeks

Based upon stock availability.

Accessories Not Included. See accessories here.

$1,053.90

+ FREE SHIPPING

SPEC #: EDG1358208 | ID: TTL1.6A10W10WZ4FTTCWH

Truline Trim 1.6A Trucolor RGBTW 24VDC Recessed LED System

SPEC #: EDG1358208

ID: TTL1.6A10W10WZ4FTTCWH

Designed by Gregory KayRead Bio

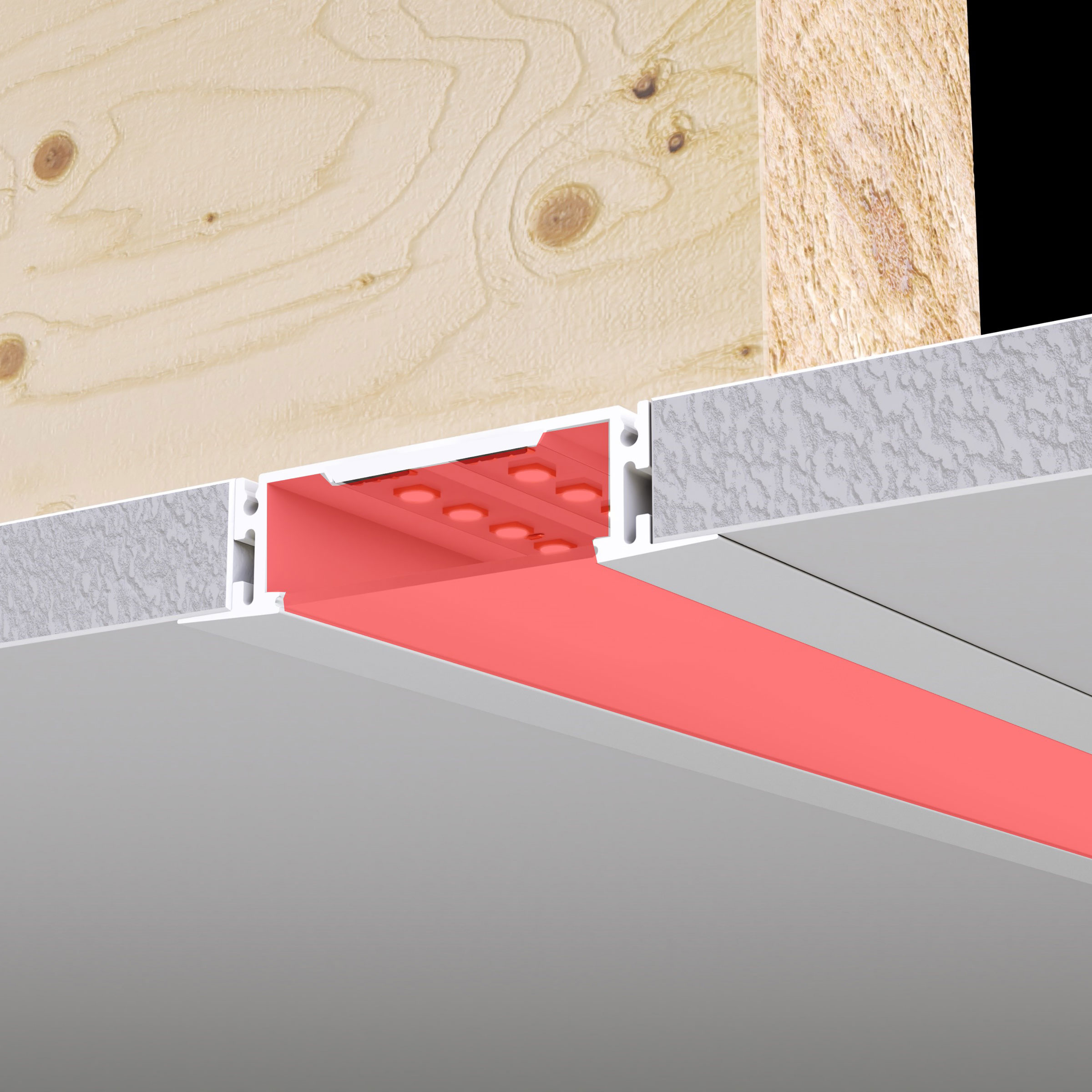

The Truline Trim 1.6A with the TruColor RGBTW light engine is another original and innovative design that comes from the family of recessed 24VDC systems pioneered by PureEdge that recess into any surface at least 5/8-inch thick without having to modify framing or surrounding construction. Truline Trim has a 1/2 inch finished flange that allows it to be recessed into any surface including wood, tile, cement, or drywall. Redefining the relationship between Lighting and Interior Design, this innovative and highly efficient system blends seamlessly into the drywall, becoming part of the architecture. The Power Feeds included with this fixture contain a 5-Channel WiZ Pro CV Bridgebox allowing for wireless control of the Truline Trim luminaire with the WiZ Pro software suite and Pure Smart Wi-Fi Room Controller. The slim extrusions, LED strips, and lenses are field-cuttable and ordered in 1' increments (up to 20' before re-feeding). Multiple runs of channel mount flawlessly together providing smooth and glare-free general illumination using designer-grade color rendering LEDs (97+ CRI). With the ability to run in vertical, horizontal, and diagonal directions, the compositions are truly endless.

Pure Smart TruColor technology uses five channels of tunable LEDs, composed of RGBTW red, blue, green, and Tunable White (1500K-6500K). With our precision-engineered, proprietary color mixing, we produce one of the widest, most accurate spectrums available, giving our customers access to the warm glow of the sunset (1500K-2400K golden hour) to the pure white light of the mid-day sun (5700K) and everything in between. TruColor LEDs achieve an average CRI-Color Rendering Index of 97+ and a Duv of +-.0020 in relation to the blackbody curve at any point on the spectrum of tunable white CCT. Dynamic Color Changing functionality provides millions of possibilities for intricate customization, rich saturated secondary colors, and unprecedented ease of installation, making RGBTW the ideal choice for residential and commercial applications. TruColor RGBTW adds more than just decorative flexibility; it also helps to support a healthy Circadian Rhythm and well-being. Let TruColor transform your space and the people within it. TruColor RGBTW is optimized for control with WiZ Pro Wi-Fi based smart control system.

Available Options

Finish: Black, White

Specifications

    • Lamp Source: LED
    • Bulb:
      4 x LED/10W/24V LED
      Integrated LED module
    • Total Wattage: 40 watts
    • Lamp Color: RGB+White
    • Color Rendering: 95 CRI
    • Delivered Lumens: 2312 lumens
    • Lumens/Watt: 57.80
    • Lamp Life: 50000 hours
      ADA

      ADA

      ETL

      ETL

      Damp Location

      Damp Location

      WiZ Connected

      WiZ Connected

      RGBTW

      RGBTW

      Smart Home Compatible

      Smart Home Compatible

      Specification Sheet / Technical Files

      Prop 65 Warning for California Residents This product can expose you to chemicals, which are known in the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.p65warnings.ca.gov/.
      Gregory Kay

      About Gregory Kay

      Gregory Kay is a renowned designer with a legacy spanning over 30 years in the industry. He continuously pushes the boundaries of traditional lighting design, integrating the most advanced technology, and allowing endless creativity and personalization. With such architectural lighting innovations as TruLine and TruCurve - recessed lighting only 5/8 thick - a designer no longer must worry about where the studs are. You can let the drywall be your canvas.

      Setting the mood and evoking emotions through his technical mastery of lighting, Kay's designs go beyond the ordinary - they are a fusion of artistry and innovation within architecture. With an impressive collection of over 30 design awards and 13 patents earned in the last decade, Gregory Kay stands as a true luminary in the industry.

      Kay's lighting solutions are not just fixtures, they are experiences. Each creation is meticulously engineered not only for its visual appeal, but also for its ease of installation, ensuring that the desired atmosphere can be effortlessly achieved throughout the entire space. His work speaks volumes, creating immersive environments that leave a lasting impression and actualize the desired emotion.

      In a world where design meets technology, Gregory Kay continues to be a driving force, pushing the boundaries of what's possible. His creations are not just illuminating spaces, they are illuminating lives, leaving an indelible mark on the world of design.

      Shop This Designer
      Brand Logo

      A merge of Pure Lighting (recessed architectural lighting systems) and Edge Lighting (minimalist suspensions and wall fixtures), Chicago-based PureEdge Lighting offers a robust catalog of innovative lighting systems, scalable to any size space. Award-winning product collections like TruLine and Lazer Line create minimalist lines of light both in and out of the drywall, serving as tools that allow architects and designers to unleash their creativity ... let the drywall be your canvas! TruTrack recessed track lighting takes an existing system, and updates it for the modern era in clean, seamless fashion. Another award-winning, innovative light system - Pipeline Modular is the perfect solution for today's urban lofts and open offices, consisting of rounded bars of light that can be pieced together to weave within the network of ducts and pipes found in today's open ceilings. Other collections - like Tie Stix, Glide and Pix Sticks - deliver linear suspensions perfectly suited for today's modern kitchens and lobbies. In the bathroom, vanity lights and LED lit mirrors bring future technology like Warm Dim and Tunable White to an environment that demands personalization and mood-setting functionality. With so many options, it's no wonder PureEdge Lighting has become the go-to name for high-end residences, offices, retail and more. From projects with Delta and Lyft to Chicago's-own Merchandise Mart, PureEdge Lighting knows a thing or two about illuminating today's best - and brightest - environments.

      Explore PureEdge Lighting

      Options

      1
      Truline Trim 1.6A Trucolor RGBTW 24VDC Recessed LED System
      • FINISH:
        Black Black
      • COLOR:
        N/A
      • Length:
        48”
      • LAMP:
        LED
      • STOCK:
        0

      Price:   $1,053.90

      2
      Truline Trim 1.6A Trucolor RGBTW 24VDC Recessed LED System
      • FINISH:
        Black Black
      • COLOR:
        N/A
      • Length:
        48”
      • LAMP:
        LED
      • STOCK:
        0

      Price:   $1,055.70

      3
      Truline Trim 1.6A Trucolor RGBTW 24VDC Recessed LED System
      • FINISH:
        White White
      • COLOR:
        N/A
      • Length:
        48”
      • LAMP:
        LED
      • STOCK:
        0

      Price:   $1,053.90

      4
      Truline Trim 1.6A Trucolor RGBTW 24VDC Recessed LED System
      • FINISH:
        White White
      • COLOR:
        N/A
      • Length:
        48”
      • LAMP:
        LED
      • STOCK:
        0

      Price:   $1,055.70

      5
      Truline Trim 1.6A Trucolor RGBTW 24VDC Recessed LED System
      • FINISH:
        Black Black
      • COLOR:
        N/A
      • Length:
        72”
      • LAMP:
        LED
      • STOCK:
        0

      Price:   $1,260.90

      6
      Truline Trim 1.6A Trucolor RGBTW 24VDC Recessed LED System
      • FINISH:
        Black Black
      • COLOR:
        N/A
      • Length:
        72”
      • LAMP:
        LED
      • STOCK:
        0

      Price:   $1,264.50

      7
      Truline Trim 1.6A Trucolor RGBTW 24VDC Recessed LED System
      • FINISH:
        White White
      • COLOR:
        N/A
      • Length:
        72”
      • LAMP:
        LED
      • STOCK:
        0

      Price:   $1,260.90

      8
      Truline Trim 1.6A Trucolor RGBTW 24VDC Recessed LED System
      • FINISH:
        White White
      • COLOR:
        N/A
      • Length:
        72”
      • LAMP:
        LED
      • STOCK:
        0

      Price:   $1,264.50

      9
      Truline Trim 1.6A Trucolor RGBTW 24VDC Recessed LED System
      • FINISH:
        Black Black
      • COLOR:
        N/A
      • Length:
        96”
      • LAMP:
        LED
      • STOCK:
        0

      Price:   $1,475.10

      10
      Truline Trim 1.6A Trucolor RGBTW 24VDC Recessed LED System
      • FINISH:
        Black Black
      • COLOR:
        N/A
      • Length:
        96”
      • LAMP:
        LED
      • STOCK:
        0

      Price:   $1,479.60

      11
      Truline Trim 1.6A Trucolor RGBTW 24VDC Recessed LED System
      • FINISH:
        White White
      • COLOR:
        N/A
      • Length:
        96”
      • LAMP:
        LED
      • STOCK:
        0

      Price:   $1,475.10

      12
      Truline Trim 1.6A Trucolor RGBTW 24VDC Recessed LED System
      • FINISH:
        White White
      • COLOR:
        N/A
      • Length:
        96”
      • LAMP:
        LED
      • STOCK:
        0

      Price:   $1,479.60

      13
      Truline Trim 1.6A Trucolor RGBTW 24VDC Recessed LED System
      • FINISH:
        Black Black
      • COLOR:
        N/A
      • Length:
        10ft
      • LAMP:
        LED
      • STOCK:
        0

      Price:   $1,701.90

      14
      Truline Trim 1.6A Trucolor RGBTW 24VDC Recessed LED System
      • FINISH:
        Black Black
      • COLOR:
        N/A
      • Length:
        10ft
      • LAMP:
        LED
      • STOCK:
        0

      Price:   $1,707.30

      15
      Truline Trim 1.6A Trucolor RGBTW 24VDC Recessed LED System
      • FINISH:
        White White
      • COLOR:
        N/A
      • Length:
        10ft
      • LAMP:
        LED
      • STOCK:
        0

      Price:   $1,701.90

      16
      Truline Trim 1.6A Trucolor RGBTW 24VDC Recessed LED System
      • FINISH:
        White White
      • COLOR:
        N/A
      • Length:
        10ft
      • LAMP:
        LED
      • STOCK:
        0

      Price:   $1,707.30
