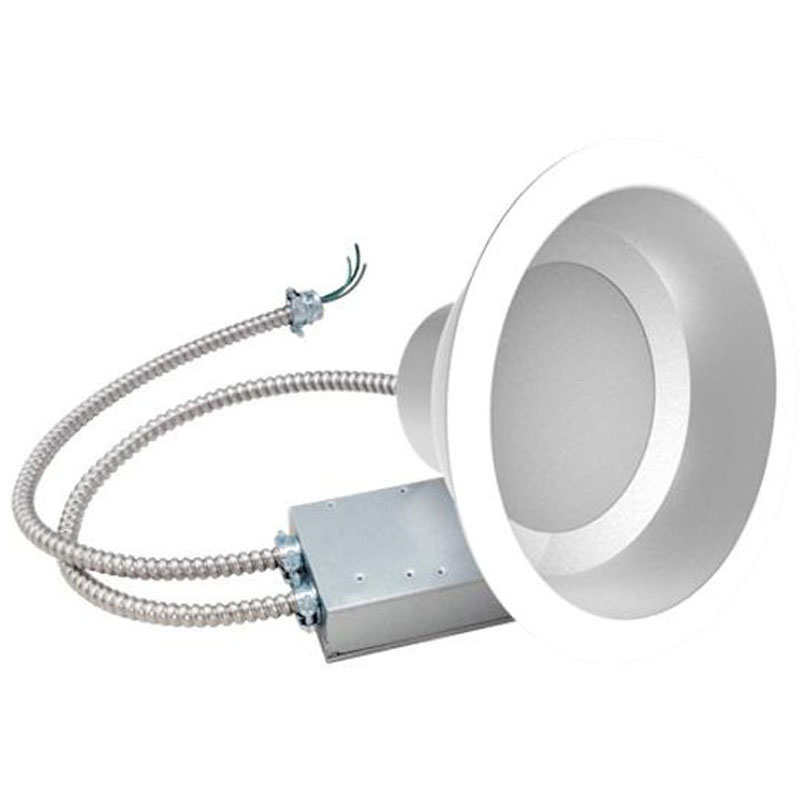

CDL Commercial Retrofit Downlight with External Driver
$30.00 - $33.00
COLOR TEMP:
3500K
Color temperatures close to 5000K are cool colors (bluish white), while lower color temperatures (2700–3000 K) are warmer colors (yellowish white through red).
Size:
6 Inch
Usually leaves warehouse in 6-8 days
Based upon stock availability.
$30.00
SPEC #: GRC1080840 | ID: GC-35129
CDL Commercial Retrofit Downlight with External Driver
SPEC #: GRC1080840
ID: GC-35129
The CDL Commercial Retrofit Downlight with External Driver Junction Box retrofits existing commercial housings and is field accessible from below the ceiling.
Self-flanged spun aluminum reflector with white painted trim flange and polycarbonate optical lens with 90 degree beam angle. Includes friction clips allowing for easy installation of aluminum reflector and quick connect wire harness for easy wiring installation.
Universal 120-277V LED driver in external driver junction box dims to 5% using electrically isolated 0-10V circuit. Note: Limited options available.
Available Options
Specifications
- Finish: White
- Reflector/Baffle Color: Aluminum
- Size: 6 Inch
- Size: 7.81"W x 5.69"H
-
Dimmer:
0-10VMust supply 2 extra wires from dimmer to power supply in canopy
- Materials: Polycarbonate, Aluminum
- Lamp Source: LED
-
Bulb:1 x LED/18W/120-277V LEDIntegrated LED module
- Total Wattage: 18 watts
- Lamp Color: 3500K
- Color Rendering: 80 CRI
- Delivered Lumens: 1647 lumens
- Lumens/Watt: 91.50
- Beam Angle: 90°
- Lamp Life: 50000 hours
UL
Energy Star
Damp Location
Specification Sheet / Technical Files
Prop 65 Warning for California Residents
This product can expose you to chemicals, which are known in the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.p65warnings.ca.gov/.
No other brand brings you the latest in LED technology like Green Creative—with a wide range of retrofit LEDs available for both commercial and residential applications, switching to eco-friendly lighting has never been easier. Green Creative has a full line of LED lamps that will work with nearly any pre-existing luminaire, giving your space a green and cost-efficient flair with minimal effort. With a large inventory available, no one is as well-suited to providing high quality, trustworthy LEDs as the minds at Green Creative.
