CoreBeam Tunable White 2X4 Recessed Light Panel
$7,400.00
Based upon stock availability.
$7,400.00
+ FREE SHIPPING
SPEC #: CBR1464687 | ID: CB-24

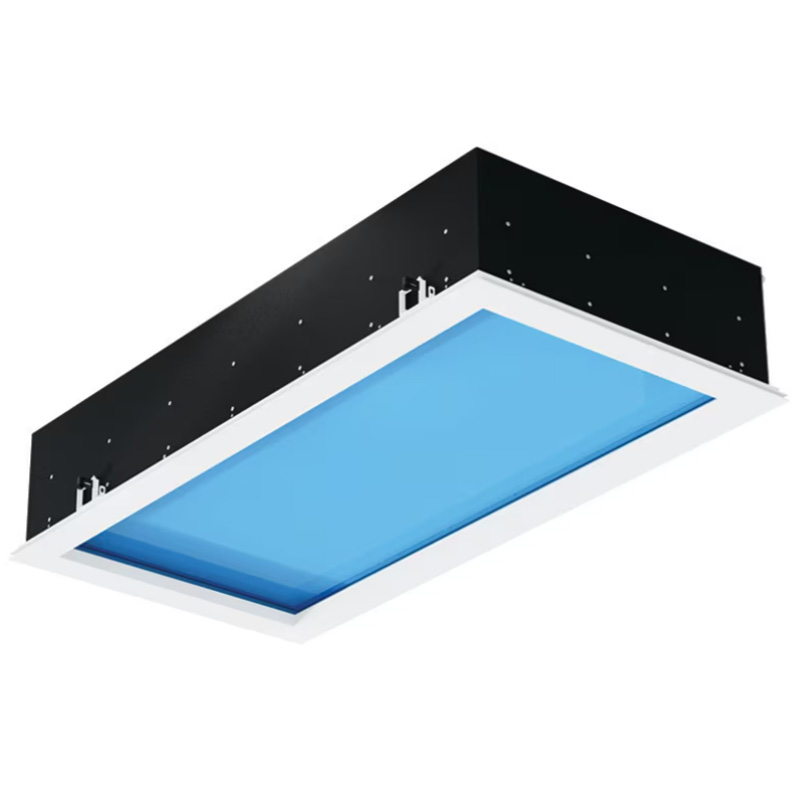

CoreBeam Tunable White 2X4 Recessed Light Panel
SPEC #: CBR1464687
ID: CB-24
Designed to replicate the natural intensity and directionality of sunlight, CoreBeam delivers a focused, downward beam that brings clarity, depth, and visual definition to any environment. Powered by Rayleigh-scattering technology, CoreBeam recreates the infinite depth of a blue sky and the brilliance of natural sunlightgoing beyond illumination to enhance well-being and transform interior spaces.
When installed in an array, CoreBeam transforms the ceiling into a luminous skylight, complete with a subtle sun halo that dynamically responds as you move through the space, creating an immersive and lifelike daylight experience.
Each Skyray CoreBeam fixture can be paired with a dedicated remote controller (by others) or a Bluetooth-enabled mobile app, offering maximum flexibility and intuitive control for personalized lighting environments.
Key Features:
Tunable White Color Temperature (2100K-7500K)
Seamlessly mimics the natural progression of sunlight throughout the day
Four Preset Scenes
Effortlessly switch between Dawn, Noon, Dusk and Night modes
Circadium Rhythm Mode
Automatically adjusts light color and intensity to support natural daily rhythms
CoreBeam is more than illumination -- it's a controlled architectural expression of daylight to enhance focus, wellbeing, and spatial experience.
NOTE: CoreBeam is Non-IC and requires a 4 inch space between fixture and other building materials. Due to weight, product includes cables for hanging for additional support.
Additional Attributes:
Aperture Size: 48 inch x 24 inch
Beam Angle: 30 Degrees
Ceiling Type: Drywall with Trim, T-Bar
Housing Type: New Construction or Retrofit, Non-IC
Dimmer Type: 0-10V, DALI, Remote Control
Available Options
Specifications
- Finish: White
- Size: 47.64"L x 24.02"W x 7.88"H
- Product Weight: 39.70 lbs
- Materials: Steel, Acrylic
- Function: Downlight
- Ceiling Type: Drywall with Trim
- Housing Type: New Construction NON IC
- Housing Height: 9"
- Aperture Shape: Rectangular
- Aperture Size: 48.000"
- Lamp Source: LED
-
Bulb:LED/300W/120-277V LEDIntegrated LED module
- Total Wattage: 300 watts
- Lamp Color: Tunable White
- Color Rendering: 93 CRI
- Delivered Lumens: 10000 lumens
- Lumens/Watt: 33.33
- Beam Angle: 30°
- Lamp Life: 30000 hours
- Color Temperature: Tunable White 2100K-7500K
ETL
CE
Tunable White
Specification Sheet / Technical Files
Prop 65 Warning for California Residents
This product can expose you to chemicals, which are known in the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.p65warnings.ca.gov/.
The Science of Simulated Sunlight
cBright artificial skylights are more than just recessed LED panels; they are a breakthrough in circadian lighting design. Using a proprietary layering of high-CRI (Color Rendering Index) LEDs and optical diffusion, cBright fixtures recreate the depth and "infinite" feel of the atmosphere. This visual connection to the skyknown as biophilic designhelps reduce stress, increase cognitive performance, and turn claustrophobic, "landlocked" rooms into expansive, airy retreats.
Circadian Rhythm & Wellness
Modern architecture often leaves us deprived of the natural light cycles our bodies crave. cBright solutions address this by providing a consistent source of "daylight" that supports the human circadian rhythm. By simulating the brightness and color temperature of a clear day, these virtual skylights help regulate sleep-wake cycles and improve mood. It is an essential tool for wellness-focused interiors, particularly in environments where traditional windows are structurally impossible.
Versatile Design for Every Space
From the compact Skyline Mini to large-scale modular arrays, cBright offers a variety of form factors to fit standard ceiling grids or custom architectural cutouts. Unlike traditional skylights that are prone to leaks and heat loss, cBright provides a maintenance-free, energy-efficient alternative. Its slim profile and ease of installation make it a favorite for modern home gyms, luxury walk-in closets, and sterile medical suites looking to improve the patient experience.
Architectural Integration & Customization
cBright empowers designers to play with the perception of space. By installing these virtual skylights in corridors or low-ceiling areas, you can effectively "lift" the ceiling and create an illusion of openness. With options for dimming and various sky scenes, cBright allows for total control over the atmosphere, ensuring that your interior lighting feels as dynamic and vital as the world outside. Explore cBright Lighting
