Amigo 3IN SQ Adjustable Trimless / Remodel Housing MFR ID: 28718-30-017
543230 Amigo 3IN SQ Adjustable Trimless / Remodel Housing 0 Eurofase
LOADING PRODUCT DATA . . .

Share this with your friends:

Amigo 3IN SQ Adjustable Trimless / Remodel Housing

By Eurofase

Trim Finish:
White

Color Temp:
3000K

(Usually leaves warehouse in 3-5 business days)
MFR ID: 28718-30-017
ITEM #: EUF543230
List Price: $277.50
$222.00

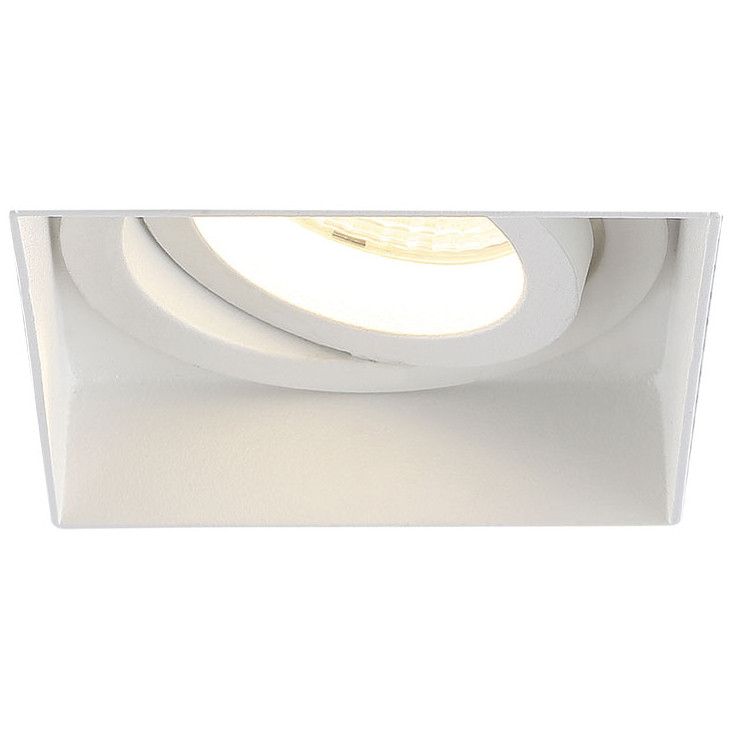

The Amigo 28718 3 Inch Square Aperture Non-IC Remodel Housing with Gimbal Trimless is constructed of 18 gauge powder coated steel. Non-IC designation requires that insulation be kept a minimum of 3 inches away from housing. Includes steel mesh plate with perforated perimeter to allow mud to bond to mounting surface leaving a seamless finish in the ceiling. Features adjustable 1-light flangeless gimbal trim in White or Black. Includes 15 watt, 120 volt LED module with 40 degree beam angle in 3000K or 3500K color temperature, 80+CRI, 1290 lumens. 30 degree tilt. 50,000 hour average lamp life. Class 2 dimmable constant current driver included. Driver box mates to fixture by 12 inch flexible BX cable. Thermally protected. Input voltage: 120 volt. Dimmable with a TRIAC (low voltage electronic) dimmer, sold separately. ETL listed. Fixture: 2.75 inch square x 5.75 inch height. Cutout: 3 inch square. Can be converted to a Non-IC new construction housing with 30536 mounting plate, IC new construction with 30532-014 housing, or IC Airtight new construction with 30532-023 housing, sold separately.


  • Trim Finish: White
  • Size: 2.75"W x 5.75"H x 2.75"D
  • Dimmer: Low Voltage Electronic
  • Labels: ETL
  • Function: Adjustable Accent
  • Ceiling Type: Drywall Trimless/Flush
  • Housing Type: Remodel NON IC
  • Housing Height: 6"
  • Aperture Shape: Square
  • Aperture Size: 3.000"
  • Lamp Source: LED
  • Bulb:

    1 x LED/15W/120V LED
    LED module included

  • Total Wattage: 15 watts
  • Lamp Color: 3000K
  • Color Rendering: 80 CRI
  • Luminous Flux: 1290 lumens
  • Lumens/Watt: 86.00
  • Beam Angle: 40°
  • Lamp Life: 50000 hours
