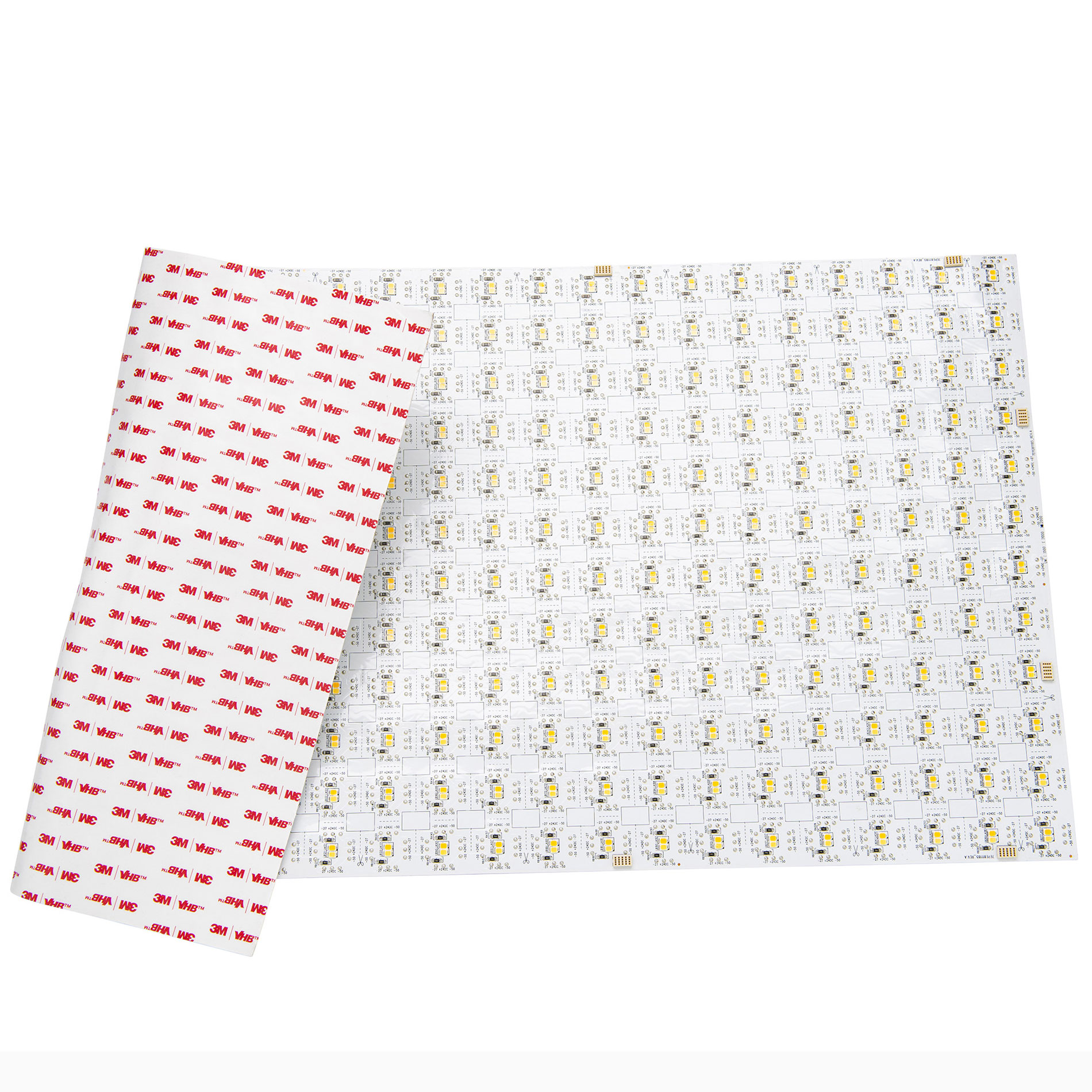

Pixels Configurable 24V CCT Color Select LED Light Sheet
By WAC Lighting
$220.46
WATTAGE:
10W
Usually leaves warehouse in 2-4 weeks
Based upon stock availability.
Save for a limited time
ON SALE
$220.46
Was $244.95 | You Save $24.49 (10%)
+ FREE SHIPPING
SPEC #: WAC1125966 | ID: LED-P05-1224-2750
Pixels Configurable 24V CCT Color Select LED Light Sheet
SPEC #: WAC1125966
ID: LED-P05-1224-2750
Pixels Configurable LED Light Sheet is a professional flexible light sheet that creates uniform and linear illumination. Easy installation in any minimal size application with no heat sink needed. May be field-cut vertically or horizontally, in unique shapes, or around obstructions. Powers easily by daisy chaining with integral push-in connectors or power from any square at soldering points provided. Can be installed in either exposed or fully enclosed spaces. Specially rated for installation in the storage area of a clothes closet. Each sheet features an ultra low 1/8 inch profile.
Choice of 5 watts/500 lumens per square foot (1000 total lumens) or 10 watts/1000 lumens per square foot (2000 total lumens) and color select CCT 2700K, 3000K, 3500K, 4000K, or 5000K color temperature.
Note: Requires a CCT color select remote power supply 120-277VAC 50/60Hz input, up to 96W output, sold separately. Optional accessories sold separately.
Available Options
Specifications
- Finish: White
- Size: 24"L x 12"W x 0.125"H
- Dimmer: Low Voltage Electronic
- Lamp Source: LED
-
Bulb:1 x LED/10W/24V LEDIntegrated LED module
- Total Wattage: 10 watts
- Lamp Color: CCT Select
- Color Rendering: 90 CRI
- Delivered Lumens: 1000 lumens
- Lumens/Watt: 100.00
- Color Temperature Field Adjustable: 2700K/3000K/3500K/4000K/5000K
- Country of Origin: China
UL
Damp Location
Title 24 (JA8)
Specification Sheet / Technical Files
Prop 65 Warning for California Residents
This product can expose you to chemicals, which are known in the State of California to cause cancer, birth defects or other reproductive harm. For more information go to https://www.p65warnings.ca.gov/.
Established in 1984, WAC Lighting offers a renewed commitment to excellence in all facets of our business. You will discover the latest technologies and designs in track, recessed, monorail, undercabinet, display, and decorative lighting. W.A.C. Lighting has developed a stellar reputation for high quality decorative and task lighting that reflects their Green energy saving strategies. Leading the industry's sustainability charge, W.A.C. Lighting has contributed to social progress with responsible manufacturing practices and energy saving technology.
